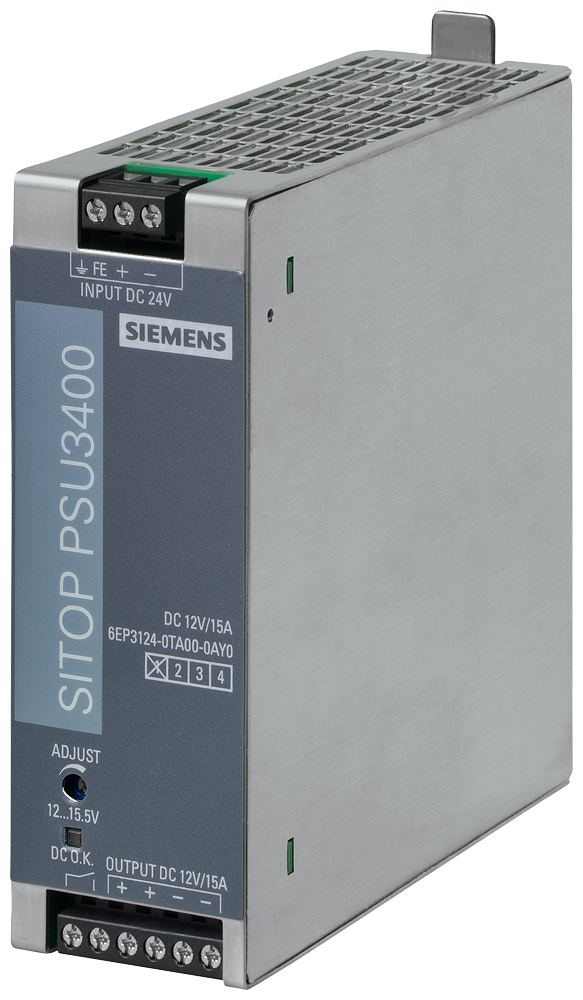

SITOP PSU3400Siemens 6EP3124-0TA00-0AY0 SITOP PSU3400 24V to 12V 15A DC/DC Converter
SITOP PSU3400 DC/DC converter, 24V DC in, 12V DC/15A adjustable output, 91% efficient.
Description
About the PSU3400
About the PSU3400
The Siemens 6EP3124-0TA00-0AY0 is a SITOP PSU3400 DC/DC converter that steps a 24 V DC input (14-32 V) down to a stabilized 12 V DC output at up to 15 A, with the output adjustable from 12 to 15.5 V via potentiometer. It runs at 91% efficiency, holds a 5 ms minimum buffering time at rated output, and reports output status through a relay contact.
Certifications & Standards
- CE
- EAC
- RCM
- CB
- Shipbuilding
- ABS
- DNV
Selection Notes
This is the 12 V/15 A tap of the PSU3400 DC/DC family fed from a 24 V DC bus - pick it over the 24 V-output PSU3400 variants when the downstream load genuinely needs 12 V, since the converter does not down-convert further than its fixed output tap. The output adjusts 12-15.5 V via potentiometer, which covers cable-drop compensation on long 12 V runs without a separate boost stage. A 5 ms minimum buffering time at rated output means momentary 24 V bus dips shorter than that do not reach the 12 V load, but longer interruptions need a buffer module or battery stage upstream.
Applications
Converts an existing 24 V DC control bus down to 12 V DC for loads that standardize on 12 V - sensors, relay coils, or auxiliary electronics - without adding a second mains-fed power supply next to the 24 V DC rail already in the cabinet.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU3400 |
| product designation | Power supply SITOP DC-DC converter |
| type of current supply | 12 V/15 A |
Input 14
| type of the power supply network | DC voltage |
|---|---|
| voltage curve at input | DC |
| supply voltage at AC | Startup as of 18 V, derating necessary for 14 ... 18 V DC |
| supply voltage at DC | 24 V |
| input voltage at DC | 14 ... 32 V |
| wide range input | No |
| overvoltage overload capability | - |
| buffering time for rated value of the output current in the event of power failure minimum | 5 ms |
| operating condition of the mains buffering | at Vin = 24 V |
| input current: at rated input voltage 24 V | 8.4 A |
| current limitation of inrush current at 25 °C maximum | 15 A |
| I2t value maximum | 0.6 A2·s |
| fuse protection type | 25 A (not accessible), breaking capacity 300 A |
| fuse protection type in the feeder | Recommended miniature circuit breaker: 16 A characteristic B or C |
Output 25
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 12 V |
| output voltage: at output 1 at DC rated value | 12 V |
| output voltage: at output 1 at DC | 12 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 12 ... 15.5 V |
| relative overall tolerance of the voltage | 2% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.2 % |
| residual ripple: maximum | 150 mV |
| residual ripple: typical | 30 mV |
| voltage peak: maximum | 250 mV |
| voltage peak: typical | 50 mV |
| display version for normal operation | Green LED for 12 V OK |
| type of signal at output | Relay contact (NO contact, contact rating 30 V AC/0.5 A; 60 V DC/0.3 A; 30 V DC/1 A) for 12 V O.K. |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 0.5 s |
| voltage increase time of the output voltage: typical | 5 ms |
| voltage increase time of the output voltage: maximum | 10 ms |
| output current: rated value | 15 A |
| output current: rated range | 0 ... 15 A; +60 ... +70 °C: Derating 2%/K |
| supplied active power typical | 200 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 120 specifications ↓ Show less ↑77 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals marine classification, Ambient conditions, Connection method, Mechanical data, Accessories, Additional information, Version Classification, Logistics.
Identification 10
| Part number | 6EP3124-0TA00-0AY0 |
|---|---|
| Type designation | PSU3400 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515155447 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 91 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 21 W |
| power loss [W]: during no-load operation maximum | 0.5 W |
Closed-loop control 4
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.3 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 4% |
| setting time: load step 50 to 100% typical | 2 ms |
| setting time: load step 100 to 50% typical | 2 ms |
Protection and monitoring 5
| design of the overvoltage protection | Ua < 22 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
| typical | 16 A |
| display version for overload and short circuit | LED yellow for "overload" |
Safety 4
| electrical separation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class III |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 61000-6-3 |
|---|---|
| standard: for mains harmonics limitation | not applicable |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 11
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | No |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C standards, specifications, approvals hazardous environments | 1 411 273 h |
| certificate of suitability: IECEx | No |
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 5
| type of electrical connection | screw terminal |
|---|---|
| at input | L, N, FE: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.5 ... 2.5 mm2 |
| for auxiliary contacts | Alarm signals: 2 screw terminals for 0.5 ... 2.5 mm2 |
| for signaling contact | 2 screw terminals for 0.5 ... 2.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 42 × 125 × 120 mm |
|---|---|
| installation width × mounting height | 42 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 1
| electrical accessories | Buffer module |
|---|
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 6
| Net weight | 0.4 kg |
|---|---|
| Country of origin | HU |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
