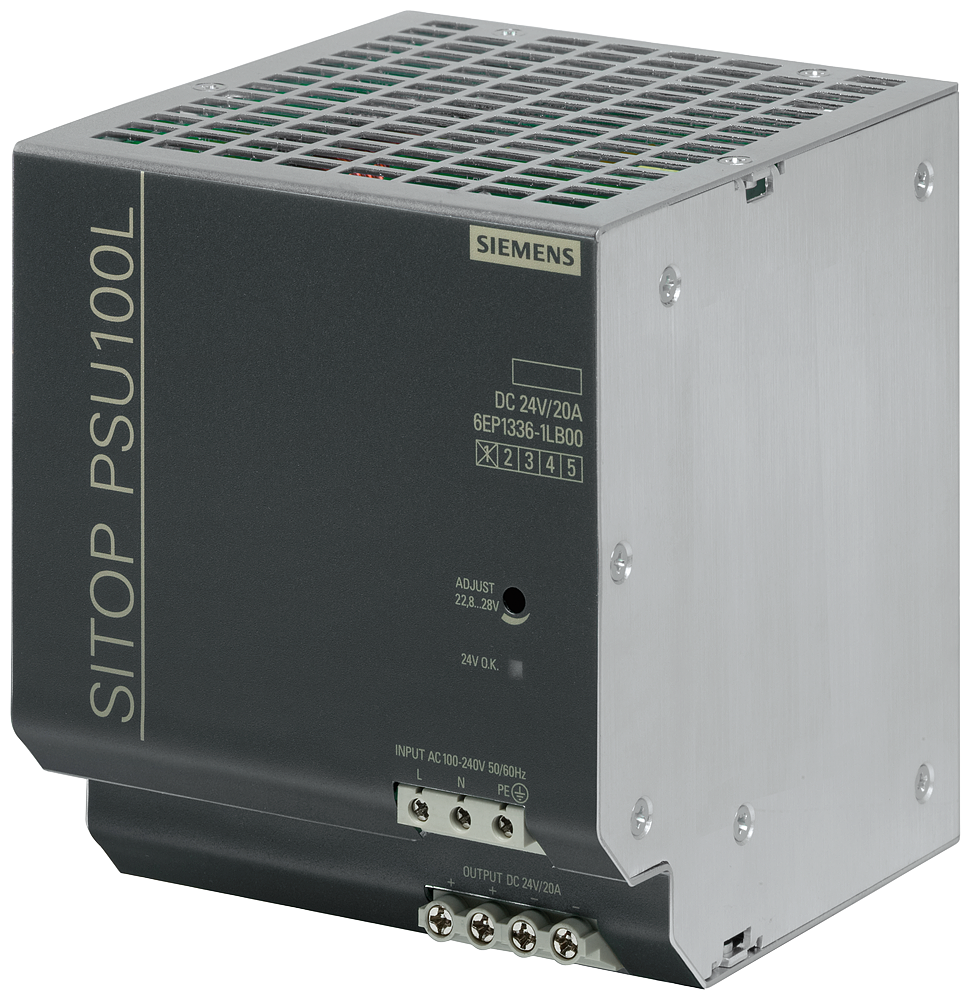

SITOP PSU100LSiemens 6EP1336-1LB00 SITOP PSU100L 24V/20A Stabilized Power Supply
Siemens SITOP PSU100L power supply, 100-240V AC in, 24V DC/20A out, 92% efficiency, IP20, DIN rail mount.
Description
About the PSU100L
About the PSU100L
The Siemens 6EP1336-1LB00 is a SITOP PSU100L stabilized power supply converting 100-240 V AC (85-264 V wide-range) input into a regulated 24 V DC / 20 A output. It reaches 92% efficiency, delivers a constant-current short-circuit characteristic at 24 A, and mounts on a standard 35 mm DIN rail in an IP20 enclosure measuring 110 x 125 x 125 mm.
Certifications & Standards
- CE
- cULus
- EAC
- CB
- BIS
Selection Notes
The 20 A rated output with a 24 A constant-current short-circuit characteristic sizes this unit for panels needing more headroom than a 10 A SITOP module - two PSU100L units can be paralleled to raise available current further. Wide-range 85-264 V AC input, which also accepts 88-370 V DC, means the same part works across single-phase mains variations without a voltage-selector switch. The output voltage trim range of 22.8-26.4 V via the onboard potentiometer lets it compensate for voltage drop on long DC distribution runs to remote I/O.
Applications
Used as the 24 V DC bus supply for PLC racks, remote I/O, and sensor/actuator power in control panels where load current exceeds what a compact 24V/10A supply can deliver.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU100L |
| product designation | Power supply SITOP lite |
| type of current supply | 24 V/20 A |
Input 22
| type of the power supply network | 1-phase AC or DC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC/DC |
| supply voltage at AC: minimum rated value | 100 V |
| supply voltage at AC: maximum rated value | 240 V |
| supply voltage at AC: initial value | 85 V |
| supply voltage at AC: full-scale value | 264 V |
| supply voltage at DC | 100 ... 240 V |
| input voltage at DC | 88 ... 370 V |
| supply voltage: at 50 Hz | 240 V |
| supply voltage: at 60 Hz | 100 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| buffering time for rated value of the output current in the event of power failure minimum | 20 ms |
| operating condition of the mains buffering | at Vin = 93/187 V |
| input current: at rated input voltage 120 V | 5.55 A |
| input current: at rated input voltage 230 V | 2.35 A |
| current limitation of inrush current at 25 °C maximum | 45 A |
| duration of inrush current limiting at 25 °C: typical | 15 ms |
| I2t value maximum | 3.3 A2·s |
| fuse protection type | T 10 A/250 V (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker: from 10 A characteristic C |
Output 23
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 22.8 ... 26.4 V |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| residual ripple: maximum | 150 mV |
| residual ripple: typical | 50 mV |
| voltage peak: maximum | 240 mV |
| voltage peak: typical | 100 mV |
| display version for normal operation | Green LED for 24 V OK |
| behavior of the output voltage when switching on | No overshoot of Vout (soft start) |
| response delay maximum | 1.5 s |
| voltage increase time of the output voltage: typical | 20 ms |
| output current: rated value | 20 A |
| output current: rated range | 0 ... 20 A; +45 ... +70 °C: Derating 2.5%/K |
| supplied active power typical | 480 W |
| bridging of equipment | Yes |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 124 specifications ↓ Show less ↑75 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, Safety, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Ambient conditions, Connection method, Mechanical data, Version Classification, Logistics.
Identification 10
| Part number | 6EP1336-1LB00 |
|---|---|
| Type designation | PSU100L |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515154549 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 2
| efficiency in percent | 92 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 45 W |
Closed-loop control 4
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.5 % |
|---|---|
| relative control precision of the output voltage at load step of resistive load 10/90/10 % typical | 3% |
| setting time: load step 10 to 90% typical | 0.7 ms |
| setting time: load step 90 to 10% typical | 6 ms |
Protection and monitoring 5
| design of the overvoltage protection | < 33 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Constant current characteristic |
| typical | 24 A |
| enduring short circuit current RMS value: typical | 24 A |
Safety 6
| galvanic isolation between input and output | Yes |
|---|---|
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| leakage current: typical | 0.8 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: NEC Class 2 | No |
| type of certification: BIS | Yes; R-41184349 |
| type of certification: CB-certificate | Yes |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | No |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; with natural convection |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | screw terminal |
|---|---|
| at input | L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.5 ... 2.5 mm2 |
| for auxiliary contacts | - |
Mechanical data 11
| width × height × depth of the enclosure | 110 × 125 × 125 mm |
|---|---|
| installation width × mounting height | 110 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Version Classification 4
| eClass | 16 27-04-07-01 |
|---|---|
| ETIM | 10 EC002540 |
| IDEA | 4 4130 |
| UNSPSC | 15 39-12-10-04 |
Logistics 7
| Net weight | 1.8 kg |
|---|---|
| Package dimensions | 190 × 163 × 143 mm |
| Country of origin | CN |
| Shipping weight | 2.3 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
