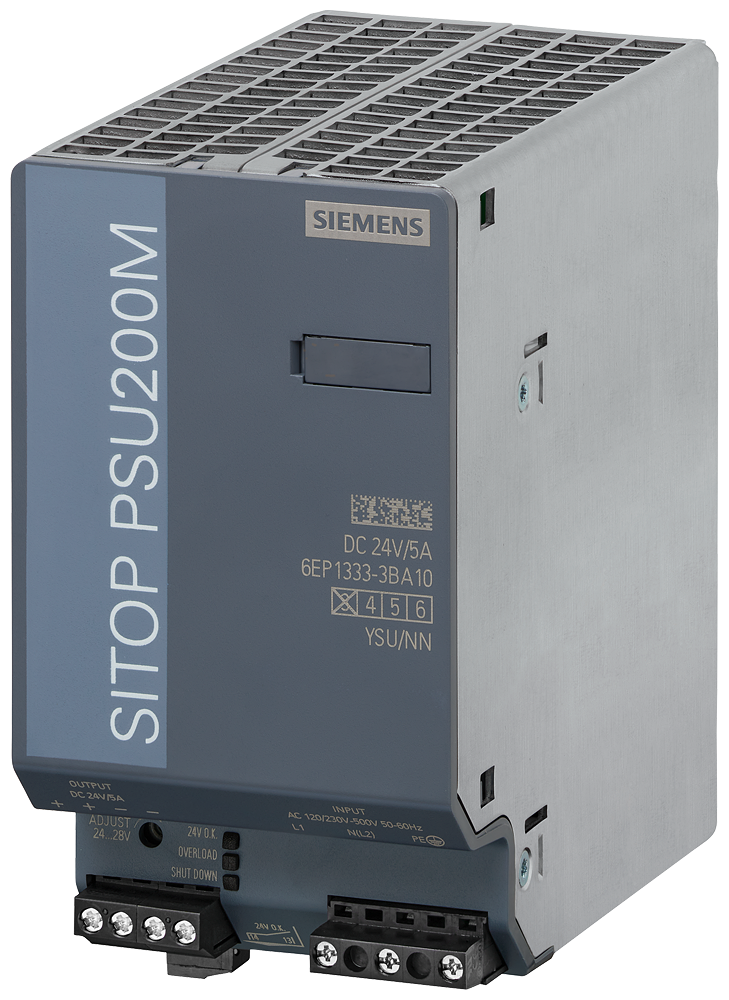

SITOP PSU200MSiemens 6EP1333-3BA10 SITOP PSU200M 24V/5A Stabilized Power Supply
SITOP PSU200M stabilized power supply, 24V DC 5A output, 88% efficiency, DIN rail
Description
About the PSU200M
About the PSU200M
The Siemens 6EP1333-3BA10 is a SITOP PSU200M stabilized power supply that converts 120-500 V single- or two-phase AC input into a regulated 24 V DC output rated at 5 A. Output voltage is adjustable from 24 to 28.8 V via potentiometer, with 88% efficiency and 25 ms buffering time to ride through short input dips.
Certifications & Standards
- CE
- UKCA
- EAC
- RCM
- SEMI F47
- CB
- shipbuilding
- ABS
- DNV
- EPD
Selection Notes
The 5 A rated output suits compact DIN-rail automation panels that need a single-phase 24 V DC supply. The wide-range 85-550 V AC input covers both 120 V and 230 V mains via a selector switch, so no separate variant is needed for different supply voltages. Two units can be paralleled for N+1 redundant supply, and the 24-28.8 V adjustment range compensates for voltage drop over long field-cable runs.
Applications
Control-cabinet 24 V DC bus supply for PLC and I/O systems, machine-building panels, single-phase AC mains installations, and redundant power configurations using two paralleled units.
Specification
Full specification
General information 4
| product brand name | SITOP |
|---|---|
| product type designation | PSU200M |
| product designation | Power supply SITOP modular |
| type of current supply | 24 V/5 A |
Input 22
| type of the power supply network | 1-phase and 2-phase AC |
|---|---|
| phase number | 1 |
| voltage curve at input | AC |
| supply voltage at AC | Set by means of selector switch on the device; starting from Vin > 90/180 V |
| supply voltage 1 at AC | 120 ... 230 V |
| supply voltage 2 at AC | 230 ... 500 V |
| input voltage 1 at AC | 85 ... 264 V |
| input voltage 2 at AC | 176 ... 550 V |
| supply voltage: at 50 Hz | 230 V |
| supply voltage: at 60 Hz | 120 V |
| line frequency | 50/60 Hz |
| wide range input | Yes |
| overvoltage overload capability | 1300 Vpeak, 1.3 ms |
| buffering time for rated value of the output current in the event of power failure minimum | 25 ms |
| operating condition of the mains buffering | at Vin = 120/230 V, typ. 150 ms at Vin = 400 V |
| input current: at rated input voltage 120 V | 2.2 A |
| input current: at rated input voltage 230 V | 1.2 A |
| input current: at rated input voltage 500 V | 0.61 A |
| current limitation of inrush current at 25 °C maximum | 35 A |
| I2t value maximum | 1.7 A2·s |
| fuse protection type | T 3.15 A (not accessible) |
| fuse protection type in the feeder | Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711- 1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V |
Output 25
| voltage curve at output | Controlled, isolated DC voltage |
|---|---|
| product function output voltage controlled | Yes |
| product function output voltage stabilized | Yes |
| output voltage at DC rated value | 24 V |
| output voltage: at output 1 at DC rated value | 24 V |
| output voltage: at output 1 at DC | 24 V |
| output voltage adjustable | Yes; via potentiometer |
| adjustable output voltage | 24 ... 28.8 V |
| relative overall tolerance of the voltage | 3% |
| relative control precision of the output voltage: on slow fluctuation of input voltage | 0.1 % |
| residual ripple: maximum | 50 mV |
| voltage peak: maximum | 200 mV |
| display version for normal operation | Green LED for 24 V OK |
| type of signal at output | relay contact (normally open, contact rating (SELV (ES1) must be observed): 30 V DC/0.1 A |
| behavior of the output voltage when switching on | Overshoot of Vout approx. 3 % |
| response delay maximum | 1 s |
| voltage increase time of the output voltage: typical | 50 ms |
| output current: rated value | 5 A |
| output current: rated range | 0 ... 5 A |
| supplied active power typical | 120 W |
| short-term overload current: at short-circuit during operation typical | 15 A |
| duration of overloading capability for excess current: at short-circuit during operation | 25 ms |
| constant overload current: on short-circuiting during the start-up typical | 6 A |
| bridging of equipment | Yes; switchable characteristic |
| number of parallel-switched equipment resources for increasing the power | 2 |
Show all 137 specifications ↓ Show less ↑86 more values in Identification, Efficiency, Closed-loop control, Protection and monitoring, EMC, Standards, specifications, approvals, Standards, specifications, approvals hazardous environments, Standards, specifications, approvals marine classification, Standards, specifications, approvals Environmental Product Declaration, Ambient conditions, Connection method, Mechanical data, Accessories, Further information internet links, Additional information, Approvals Certificates, Logistics.
Identification 10
| Part number | 6EP1333-3BA10 |
|---|---|
| Type designation | PSU200M |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515152873 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Efficiency 3
| efficiency in percent | 88 % |
|---|---|
| power loss [W]: at rated output voltage for rated value of the output current typical | 17 W |
| power loss [W]: during no-load operation maximum | 4 W |
Closed-loop control 5
| relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.1 % |
|---|---|
| relative control precision of the output voltage load step of resistive load 50/100/50 % typical | 3% |
| setting time: load step 50 to 100% typical | 2 ms |
| setting time: load step 100 to 50% typical | 2 ms |
| setting time: maximum | 5 ms |
Protection and monitoring 12
| design of the overvoltage protection | < 35 V |
|---|---|
| property of the output short-circuit proof | Yes |
| design of short-circuit protection | Alternatively, constant current characteristic approx. 5.5 A or latching shutdown |
| typical | 6 A |
| enduring short circuit current RMS value: typical | 6 A |
| display version for overload and short circuit safety | LED yellow for "overload", LED red for "latching shutdown" |
| galvanic isolation between input and output | Yes |
| galvanic isolation | Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) |
| operating resource protection class | Class I |
| leakage current: maximum | 3.5 mA |
| leakage current: typical | 0.25 mA |
| protection class IP | IP20 |
EMC 3
| standard: for emitted interference | EN 55022 Class B |
|---|---|
| standard: for mains harmonics limitation | EN 61000-3-2 |
| standard: for interference immunity | EN 61000-6-2 |
Standards, specifications, approvals 10
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259 |
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| certificate of suitability: NEC Class 2 | No |
| certificate of suitability: SEMI F47 | Yes |
| type of certification: BIS | Yes; R-41183539, R-41188271 |
| type of certification: CB-certificate | Yes |
| MTBF at 40 °C | 1 123 973 h |
Standards, specifications, approvals hazardous environments 4
| certificate of suitability: IECEx | No |
|---|---|
| certificate of suitability: ATEX | No |
| certificate of suitability: ULhazloc approval | No |
| certificate of suitability: FM registration | No |
Standards, specifications, approvals marine classification 5
| shipbuilding approval | Yes |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
Standards, specifications, approvals Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 445.1 kg |
| global warming potential [CO2 eq]: during manufacturing | 14.4 kg |
| global warming potential [CO2 eq]: during operation | 430.5 kg |
| global warming potential [CO2 eq]: after end of life | 0.12 kg |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage |
|---|---|
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: during storage | -40 ... +85 °C |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
Connection method 4
| type of electrical connection | screw terminal |
|---|---|
| at input | L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm2 single-core/finely stranded |
| at output | +, -: 2 screw terminals each for 0.2 ... 2.5 mm2 |
| for auxiliary contacts | 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm2 |
Mechanical data 11
| width × height × depth of the enclosure | 70 × 125 × 121 mm |
|---|---|
| installation width × mounting height | 70 mm × 225 mm |
| required spacing: top | 50 mm |
| required spacing: bottom | 50 mm |
| required spacing: left | 0 mm |
| required spacing: right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| DIN-rail mounting | Yes |
| S7 rail mounting | No |
| wall mounting | No |
| housing can be lined up | Yes |
Accessories 1
| electrical accessories | Buffer module |
|---|
Further information internet links 1
| identification link | Yes; acc. to IEC 61406-1:2022 |
|---|
Additional information 1
| other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
|---|
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 14.4 kg |
|---|
Logistics 6
| Net weight | 0.6 kg |
|---|---|
| Country of origin | Romania |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6EP1333-3BA10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- EAC approval
- Regulatory Compliance Mark (RCM)
- SEMI F47
- CB-certificate
- shipbuilding approval
- American Bureau of Shipping Europe Ltd. (ABS)
- Det Norske Veritas (DNV)
- Environmental Product Declaration
Quick answers
Questions about the PSU200M
What is the rated current of PSU200M?
The rated current of PSU200M is 5 A.
Which supply voltage is PSU200M rated for?
The rated operational voltage of PSU200M is 120–500, 1–2–phase V AC.
What motor power is PSU200M rated for?
The rated motor power of PSU200M is 0.12 kW.
What is the HS code of PSU200M for customs?
The tariff (HS) code on file for PSU200M is 85044083.
What is the EAN of PSU200M?
The EAN (GTIN) of PSU200M is 4025515152873.
Where does PSU200M ship from, and how fast?
PSU200M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
