SIMATIC HMI KP300Siemens 6AV6647-0AH11-3AX1 SIMATIC HMI KP300 Basic mono PN 3in PROFINET HMI Operator Panel

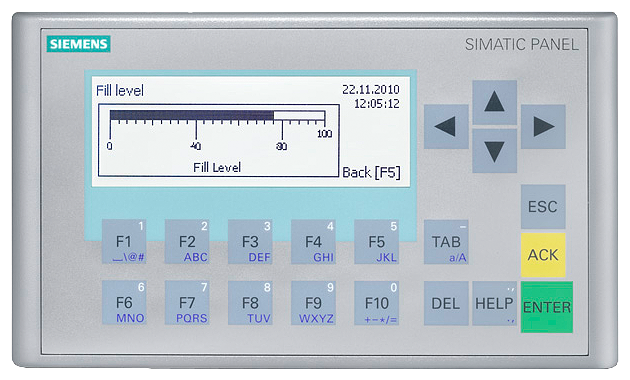

SIMATIC HMI KP300 Basic mono PN, 3.6in FSTN, 10 keys, PROFINET, 24V DC, IP65 front.
Description
About the KP300 Basic mono PN
About the KP300 Basic mono PN
The Siemens 6AV6647-0AH11-3AX1 is a SIMATIC HMI KP300 Basic mono PN key-operated panel with a 3.6 in FSTN display at 240x80 pixel resolution, 10 function keys, and a single PROFINET interface, configured from WinCC Basic in TIA Portal. It runs on 24V DC and carries IP65 protection at the front.
Certifications & Standards
- CE
- cULus
- RCM
- KC
- GL
- ABS
- BV
- DNV
- LRS
- NK
Selection Notes
Ten key-operated function keys and no touchscreen make this panel a fit for machine fronts with vibration, gloved operators, or washdown exposure where a touch surface would be unreliable; IP65 at the front supports that use. The single PROFINET interface, with no RS485, RS232, or USB port listed, means it only connects to PROFINET-based PLCs, not PROFIBUS or serial-only controllers. With 1 Mbyte of user memory, 50 configurable images, and 5 recipes at 20 data records each, it is sized for a single-machine operator station, not a multi-screen SCADA-style visualization.
Applications
Status, alarm, and recipe-selection displays on standalone machines with a PROFINET-networked SIMATIC PLC, panel-mounted in cabinet doors or machine fronts where key operation and IP65 sealing at the front are preferred over a touchscreen.
Specification
Full specification
General information 1
| Product type designation | KP300 Basic mono PN |
|---|
Display 9
| Design of display | FSTN |
|---|---|
| Screen diagonal | 3.6 in |
| Display width | 87 mm |
| Display height | 31 mm |
| Number of colors | 4; backlit display only (white, red, green, yellow) |
| Resolution (pixels): Horizontal image resolution | 240 pixel |
| Resolution (pixels): Vertical image resolution | 80 pixel |
| Backlighting: MTBF backlighting (at 25 °C) | 50 000 h |
| Backlighting: Backlight dimmable | No |
Control elements 7
| Function keys: Number of function keys | 10 |
|---|---|
| Function keys: Number of function keys with LEDs | 0 |
| Function keys: Keys with LED | No |
| Function keys: System keys | Yes |
| Function keys: Numeric keyboard | Yes; Keyboard |
| Function keys: alphanumeric keyboard | Yes; Keyboard |
| Touch operation: Design as touch screen | No; without |
Show all 241 specifications ↓ Show less ↑224 more values in Identification, Installation type/mounting, Supply voltage, Input current, Power, Processor, Storage, Type of output, Time of day, Interfaces, Protocols, Interrupts/diagnostics/status information, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Operating systems, Configuration, Languages, Functionality under WinCC (TIA Portal), Peripherals/Options, Mechanics/material, Dimensions, Weights, General Product Approval, General Product Approval Maritime application, Logistics.
Identification 10
| Part number | 6AV6647-0AH11-3AX1 |
|---|---|
| Type designation | KP300 Basic mono PN |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515738121 |
| ETIM class | EC001412 |
| eCl@ss | 27330201 |
Installation type/mounting 6
| Mounting position | vertical |
|---|---|
| Rack mounting | No |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | No |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage 4
| Type of supply voltage | DC |
|---|---|
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current 2
| Current consumption (rated value) | 0.1 A |
|---|---|
| Starting current inrush I2t | 0.5 A2·s |
Power 1
| Active power input, typ. | 3 W |
|---|
Processor 1
| Processor type | RISC 32 bit |
|---|
Storage 3
| Flash | Yes |
|---|---|
| RAM | Yes |
| Memory available for user data | 1 Mbyte |
Type of output 2
| Acoustics: Buzzer | No |
|---|---|
| Acoustics: Speaker | No |
Time of day 4
| Clock: Hardware clock (real-time) | No |
|---|---|
| Clock: Software clock | Yes |
| Clock: retentive | No |
| Clock: synchronizable | Yes |
Interfaces 11
| Number of industrial Ethernet interfaces | 1 |
|---|---|
| Number of RS 485 interfaces | 0 |
| Number of RS 422 interfaces | 0 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 0 |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| Industrial Ethernet: Industrial Ethernet status LED | 2 |
Protocols 16
| PROFINET | Yes |
|---|---|
| PROFINET IO | No |
| IRT | No |
| PROFIBUS | No |
| EtherNet/IP | Yes |
| MPI | No |
| Protocols (Ethernet): TCP/IP | Yes |
| Protocols (Ethernet): DHCP | Yes |
| Protocols (Ethernet): SNMP | Yes |
| Protocols (Ethernet): DCP | Yes |
| Protocols (Ethernet): LLDP | Yes |
| WEB characteristics: HTTP | No |
| WEB characteristics: HTML | No |
| Redundancy mode Media redundancy: MRP | No |
| Further protocols: CAN | No |
| Further protocols: MODBUS | Yes; Modicon (MODBUS TCP/IP) |
Interrupts/diagnostics/status information 1
| Diagnoses: Diagnostic information readable | No |
|---|
EMC 1
| Emission of radio interference acc. to EN 55 011: Limit class A, for use in industrial areas | Yes |
|---|
Degree and class of protection 4
| IP (at the front) | IP65 |
|---|---|
| IP (rear) | IP20 |
| NEMA (front): Enclosure Type 4 at the front | Yes |
| NEMA (front): Enclosure Type 4x at the front | Yes |
Standards, approvals, certificates 16
| CE mark | Yes |
|---|---|
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Use in hazardous areas: ATEX Zone 2 | No |
| Use in hazardous areas: ATEX Zone 22 | No |
| Use in hazardous areas: cULus Class I Zone 1 | No |
| Use in hazardous areas: cULus Class I Zone 2, Division 2 | Yes |
| Use in hazardous areas: FM Class I Division 2 | No |
| Marine approval: Germanischer Lloyd (GL) | Yes |
| Marine approval: American Bureau of Shipping (ABS) | Yes |
| Marine approval: Bureau Veritas (BV) | Yes |
| Marine approval: Det Norske Veritas (DNV) | Yes |
| Marine approval: Lloyds Register of Shipping (LRS) | Yes |
| Marine approval: Nippon Kaiji Kyokai (Class NK) | Yes |
| Marine approval: Polski Rejestr Statkow (PRS) | No |
Ambient conditions 4
| Ambient temperature during operation Operation (vertical installation): For vertical installation, min. | 0 °C |
|---|---|
| Ambient temperature during storage/transportation: min. | -20 °C |
| Ambient temperature during storage/transportation: max. | 60 °C |
| Relative humidity: Operation, max. | 90 %; no condensation |
Operating systems 2
| proprietary | Yes |
|---|---|
| pre-installed operating system: Windows CE | No |
Configuration 14
| Message indicator | Yes |
|---|---|
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration software: STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| Configuration software: STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| Configuration software: WinCC flexible Compact | No |
| Configuration software: WinCC flexible Standard | No |
| Configuration software: WinCC flexible Advanced | No |
| Configuration software: WinCC Basic (TIA Portal) | Yes |
| Configuration software: WinCC Comfort (TIA Portal) | Yes |
| Configuration software: WinCC Advanced (TIA Portal) | Yes |
| Configuration software: WinCC Professional (TIA Portal) | Yes |
Languages 2
| Online languages: Number of online/runtime languages | 5 |
|---|---|
| Project languages: Languages per project | 32 |
Functionality under WinCC (TIA Portal) 98
| Libraries | Yes |
|---|---|
| Applications/options | none |
| Web browser | No |
| SIMATIC WinCC Sm@rtServer | No |
| Task planner: time-controlled | No |
| Task planner: task-controlled | Yes |
| Help system | Yes |
| Number of characters per info text | 320 |
| Message system: Number of alarm classes | 32 |
| Message system: Bit messages | Yes |
| Message system: Number of bit messages | 200 |
| Message system: Analog messages | Yes |
| Message system: Number of analog messages | 15 |
| Message system: System messages HMI | Yes |
| Message system: System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Message system: Number of characters per message | 80 |
| Message system: Number of process values per message | 8 |
| Message system: Message indicator | Yes |
| Message buffer: Number of entries | 256 |
| Message buffer: Circulating buffer | Yes |
| Message buffer: retentive | Yes |
| Message buffer: maintenance-free | Yes |
| Recipe management: Number of recipes | 5 |
| Recipe management: Data records per recipe | 20 |
| Recipe management: Entries per data record | 20 |
| Recipe management: Size of internal recipe memory | 40 kbyte |
| Recipe management: Recipe memory expandable | No |
| Variables: Number of variables per device | 250 |
| Variables: Number of variables per screen | 30 |
| Variables: Limit values | Yes |
| Variables: Multiplexing | Yes |
| Variables: Structures | No |
| Variables: Arrays | Yes |
| Images: Number of configurable images | 50 |
| Images: Permanent window/default | Yes |
| Images: Global image | Yes |
| Images: Image selection by PLC | Yes |
| Images: Image number in the PLC | Yes |
| Image objects: Number of objects per image | 30 |
| Image objects: Text fields | Yes |
| Image objects: I/O fields | Yes |
| Image objects: Graphic I/O fields (graphics list) | Yes |
| Image objects: Symbolic I/O fields (text list) | Yes |
| Image objects: Date/time fields | Yes |
| Image objects: Switches | Yes |
| Image objects: Buttons | Yes |
| Image objects: Graphic display | Yes |
| Image objects: Icons | Yes |
| Image objects: Geometric objects | Yes |
| Complex image objects: Number of complex objects per screen | 5 |
| Complex image objects: Alarm view | Yes |
| Complex image objects: Trend view | Yes |
| Complex image objects: User view | Yes |
| Complex image objects: Status/control | No |
| Complex image objects: Sm@rtClient view | No |
| Complex image objects: Recipe view | Yes |
| Complex image objects: f(x) trend view | No |
| Complex image objects: System diagnostics view | No |
| Complex image objects: Media Player | No |
| Complex image objects: Bar graphs | Yes |
| Complex image objects: Sliders | No |
| Complex image objects: Pointer instruments | No |
| Complex image objects: Analog/digital clock | No |
| Lists: Number of text lists per project | 150 |
| Lists: Number of entries per text list | 30 |
| Lists: Number of graphics lists per project | 100 |
| Lists: Number of entries per graphics list | 30 |
| Archiving: Number of archives per device | 0 |
| Security: Number of user groups | 50 |
| Security: Number of user rights | 32 |
| Security: Number of users | 50 |
| Security: Password export/import | No |
| Security: SIMATIC Logon | No |
| Keyboard fonts: US English | Yes |
| Transfer (upload/download): MPI/PROFIBUS DP | No |
| Transfer (upload/download): USB | No |
| Transfer (upload/download): Ethernet | Yes |
| Transfer (upload/download): using external storage medium | No |
| Process coupling: S7-1200 | Yes |
| Process coupling: S7-1500 | Yes |
| Process coupling: S7-200 | Yes |
| Process coupling: S7-300/400 | Yes |
| Process coupling: LOGO! | Yes |
| Process coupling: WinAC | Yes |
| Process coupling: SINUMERIK | No |
| Process coupling: SIMOTION | No |
| Process coupling: Allen Bradley (EtherNet/IP) | Yes |
| Process coupling: Allen Bradley (DF1) | No |
| Process coupling: Mitsubishi (MC TCP/IP) | Yes |
| Process coupling: Mitsubishi (FX) | No |
| Process coupling: OMRON (FINS TCP) | No |
| Process coupling: OMRON (Host Link) | No |
| Process coupling: Modicon (Modbus TCP/IP) | Yes |
| Process coupling: Modicon (Modbus RTU) | No |
| Service tools/configuration aids: Backup/Restore manually | Yes |
| Service tools/configuration aids: Backup/Restore automatically | No |
| Service tools/configuration aids: Simulation | Yes |
| Service tools/configuration aids: Device switchover | Yes |
Peripherals/Options 4
| Printer | No |
|---|---|
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| USB memory | No |
Mechanics/material 3
| Enclosure material (front): Plastic | Yes |
|---|---|
| Enclosure material (front): Aluminum | No |
| Enclosure material (front): Stainless steel | No |
Dimensions 5
| Width of the housing front | 165 mm |
|---|---|
| Height of housing front | 97 mm |
| Mounting cutout, width | 149 mm |
| Mounting cutout, height | 82 mm |
| mounting depth | 30 mm |
Weights 2
| Weight (without packaging) | 0.25 kg |
|---|---|
| Weight (with packaging) | 0.38 kg |
General Product Approval 1
| Miscellaneous Manufacturer Declara- | tion |
|---|
General Product Approval Maritime application 1
| China RoHS NK / Nippon Kaiji Ky- | okai |
|---|
Logistics 6
| Net weight | 0.35 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.85 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6AV6647-0AH11-3AX1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- cULus
- RCM (formerly C-TICK)
- KC approval
- Germanischer Lloyd (GL)
- American Bureau of Shipping (ABS)
- Bureau Veritas (BV)
- Det Norske Veritas (DNV)
- Lloyds Register of Shipping (LRS)
- Nippon Kaiji Kyokai (Class NK)
Quick answers
Questions about the KP300 Basic mono PN
What is the rated current of KP300 Basic mono PN?
The rated current of KP300 Basic mono PN is 0.1 A.
Which supply voltage is KP300 Basic mono PN rated for?
The rated operational voltage of KP300 Basic mono PN is 24 V AC.
What is the HS code of KP300 Basic mono PN for customs?
The tariff (HS) code on file for KP300 Basic mono PN is 85371091.
What is the EAN of KP300 Basic mono PN?
The EAN (GTIN) of KP300 Basic mono PN is 4025515738121.
Where does KP300 Basic mono PN ship from, and how fast?
KP300 Basic mono PN ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Guides
Guides for HMI operator panels
A Comparison of Leading Industrial Brands: ABB, Siemens and Schneider
Compare ABB, Siemens, and Schneider Electric across motor control, energy efficiency, installation, support, and power distribution. Shop at Stoklink.
Contactors: Essential Components For Motor Control And Automation
Contactors deliver safe, reliable motor control and automation switching for industrial systems, lighting, pumps, and heating loads. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC HMI KP300
- Brand
- Siemens
- Series
- SIMATIC HMI KP300
