ABB 1SAP561510R0001 CP6615 15.6in TFT Multi-Touch 1366x768 HMI Operator Panel

% $-3,559.25

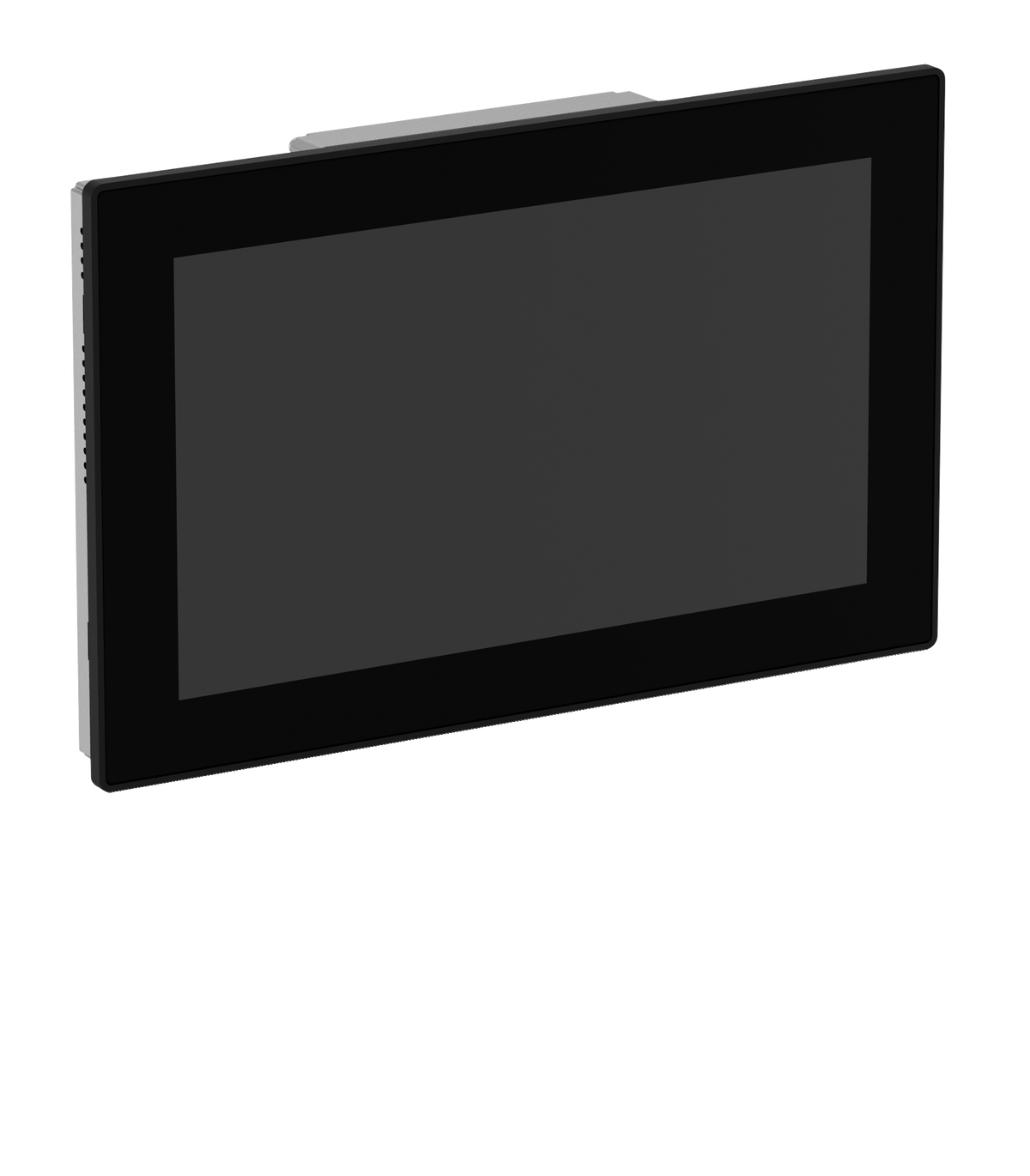

ABB 1SAP561510R0001 CP6615 HMI Operator Panel - 15.6in TFT Multi-Touch
ABB 1SAP561510R0001 CP6615 HMI Operator Panel - 15.6in TFT Multi-Touch

ABB 1SAP561510R0001 CP6615 15.6in TFT Multi-Touch 1366x768 HMI Operator Panel

Brand: ABB
Reference No: 1SAP561510R0001
Catalog No: CP6615
Series: Devices
Tariff Code (HS): 852859
Communication: 3x Industrial Ethernet, 2x USB
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,559.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP561510R0001 (CP6615) is a CP600-Pro control panel with a 15.6 inch TFT multi-touch screen, 1366x768 pixel resolution, 16M colors and a built-in Chromium browser. It carries IP66 front protection, runs on 18-32 V DC, and connects via three Industrial Ethernet ports and two USB ports for PB610 applications across a -20 to +60 degree C ambient range.

Technical Specifications

Order code 1SAP561510R0001
Type code CP6615
Brand ABB
Series CP600-Pro
EAN 4013614529641
Screen Size 15.6 in
Screen Resolution 1366 x 768 pixel
Display Type TFT multi-touch screen, Chromium Browser
Screen Color Capability Color, 16M colors
Degree of Protection Front IP66
Supply Voltage 18-32 V DC
Hardware Interfaces 3x Industrial Ethernet, 2x USB
Memory Size 240000 kB
Security 50
Built-In Depth 56 mm
Ambient Air Temperature (Operation) -20 to +60 degC
Net Weight 3.33 kg
Gross Weight 4.5 kg
Dimensions (D x H x W) 64 x 267 x 422 mm

Selection Notes

The CP6615's 15.6 inch, 1366x768 widescreen display suits control-room-style overview screens with multiple trend charts or alarm lists on one view. Memory capacity of 240 MB and three Industrial Ethernet ports plus two USB ports match the other large-format CP600-Pro panels, so the deciding factor against them is physical screen size and the 56 mm built-in depth against available panel-door clearance. At 3.33 kg, mounting hardware should be rated for the added weight of a larger multi-touch screen.

Technical Details

Short Description
ABB CP6615 HMI panel, 15.6in TFT multi-touch, 1366x768, triple Ethernet, IP66.
Mounting Type
Panel/flush mount
Protection Type
Front IP66
Catalog No
CP6615
Delivery Date (Days)
30 days
Model Number
CP6615
Tariff Code
852859
