ABB 1SAP562110R0001 CP6621 21.5in TFT Multi-Touch 1920x1080 HMI Operator Panel

% $-4,669.00

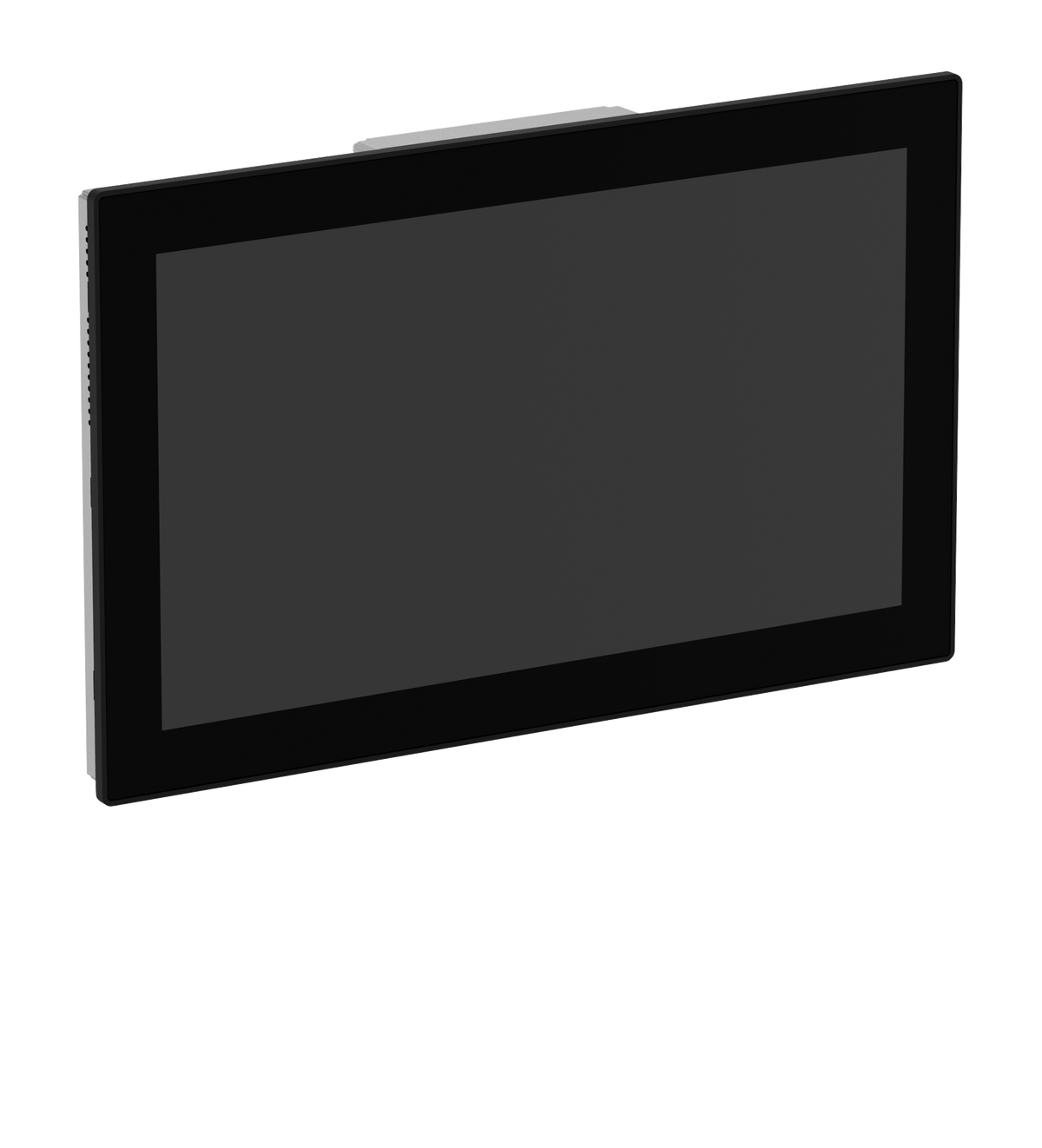

ABB 1SAP562110R0001 CP6621 HMI Operator Panel - 21.5in TFT Multi-Touch
ABB 1SAP562110R0001 CP6621 HMI Operator Panel - 21.5in TFT Multi-Touch

ABB 1SAP562110R0001 CP6621 21.5in TFT Multi-Touch 1920x1080 HMI Operator Panel

Brand: ABB
Reference No: 1SAP562110R0001
Catalog No: CP6621
Series: Devices
Tariff Code (HS): 852859
Communication: 3x Industrial Ethernet, 2x USB
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,669.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SAP562110R0001 (CP6621) is a CP600-Pro control panel with a 21.5 inch TFT multi-touch screen, 1920x1080 pixel resolution, 16M colors and a built-in Chromium browser. It carries IP66 front protection, runs on 18-32 V DC, and connects via three Industrial Ethernet ports and two USB ports for PB610 applications across a -20 to +60 degree C ambient range.

Technical Specifications

Order code 1SAP562110R0001
Type code CP6621
Brand ABB
Series CP600-Pro
EAN 4013614529658
Screen Size 21.5 in
Screen Resolution 1920 x 1080 pixel
Display Type TFT multi-touch screen, Chromium Browser
Screen Color Capability Color, 16M colors
Degree of Protection Front IP66
Supply Voltage 18-32 V DC
Hardware Interfaces 3x Industrial Ethernet, 2x USB
Memory Size 240000 kB
Security 50
Built-In Depth 56 mm
Ambient Air Temperature (Operation) -20 to +60 degC
Net Weight 5.8 kg
Gross Weight 6 kg
Dimensions (D x H x W) 65 x 347 x 552 mm

Selection Notes

At 21.5 inches and full HD 1920x1080 resolution, the CP6621 is built for control-room overview displays showing several process areas or trend groups simultaneously rather than machine-level operator stations. The 56 mm built-in depth matches the 15.6 inch CP600-Pro panel, but the 5.8 kg weight is substantially higher, so door hinges and support brackets need to be rated accordingly. Three Industrial Ethernet ports and 240 MB of memory are shared with the smaller multi-touch CP600-Pro sizes.

Technical Details

Short Description
ABB CP6621 HMI panel, 21.5in TFT multi-touch, 1920x1080, triple Ethernet, IP66.
Mounting Type
Panel/flush mount
Protection Type
Front IP66
Catalog No
CP6621
Delivery Date (Days)
30 days
Model Number
CP6621
Tariff Code
852859
