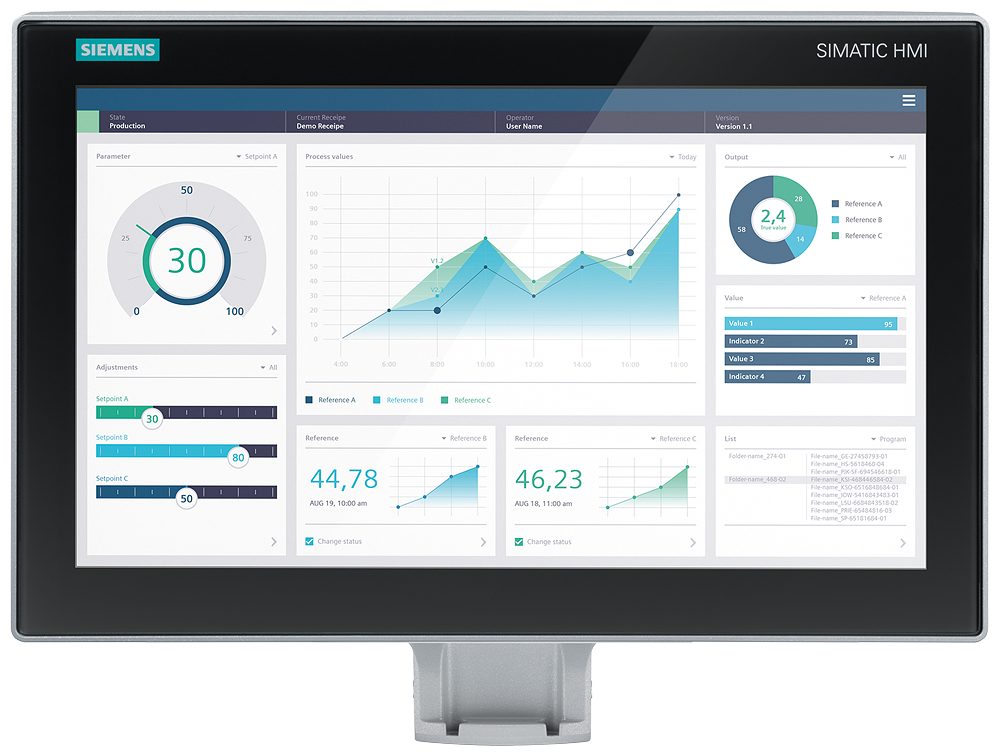

Siemens 6AV2128-3QB27-1BX0 SIMATIC HMI MTP1500 Unified Comfort PRO 15.6in Touch Panel

Siemens SIMATIC HMI MTP1500 Unified Comfort PRO 6AV2128-3QB27-1BX0 is a 15.6in widescreen multi-touch TFT panel with 1366x768 resolution, pedestal-mounted for expandable flange installation from a 24 V DC supply. Configurable from WinCC Unified Comfort Engineering V18, it carries PROFINET connectivity, 4 USB 3.1 ports, and IP65 sealing on both front and rear.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• FM
• RCM
• KC
• EAC
• CCC

Selection Notes

IP65 sealing on the rear as well as the front, needed because a pedestal mount leaves the back of the enclosure exposed rather than protected inside a cabinet door. Four USB 3.1 Gen. 1 ports - twice the USB count of the Comfort-class Windows CE panels in this range - support higher-throughput peripherals such as barcode scanners or external storage during commissioning. Requiring WinCC Unified Comfort Engineering V18 or later ties this panel to the newer Unified runtime rather than the classic WinCC Comfort/Advanced/Professional engineering used on the Windows CE-based TP2200/KP400/KP700/KTP700 panels, so plan the TIA Portal version accordingly before ordering.

Applications

Suited to free-standing or pedestal-mounted operator stations needing a large multi-touch surface and rear IP65 sealing - central line-control stations, walk-up kiosks on the plant floor, and installations already standardized on the WinCC Unified engineering environment.
