Siemens 6AV2128-3QB06-0AX1 SIMATIC HMI MTP1500 Unified Comfort 15.6-inch IP65 HMI Operator Panel

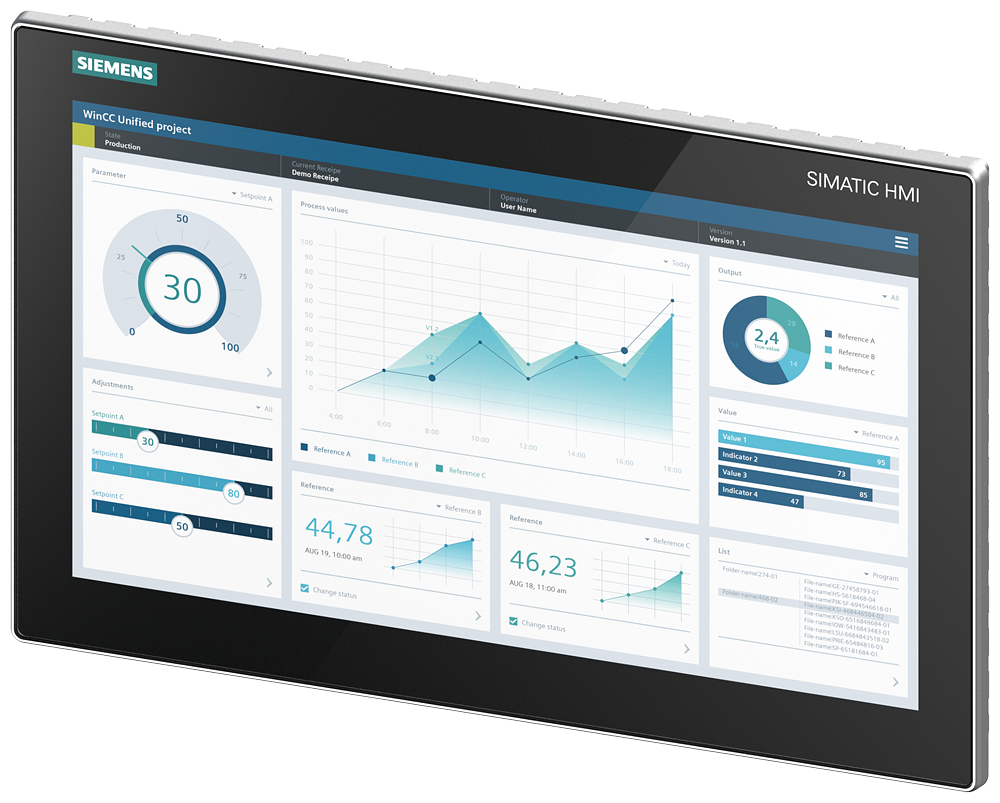

The Siemens 6AV2128-3QB06-0AX1 is a SIMATIC HMI MTP1500 Unified Comfort Panel with a 15.6-inch, 1366x768 multi-touch TFT display in 16.7 million colors. It connects via a 2-port PROFINET switch plus an independent Ethernet port, runs WinCC Unified Comfort (TIA Portal, V16+), and carries IP65 front / IP20 rear protection, suited for panel-door mounting in industrial enclosures.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• KC
• EAC
• CCC

Selection Notes

This 15.6-inch, 1366x768 panel is the smallest screen size in the Unified Comfort Panel line covered here, at 0.7 A rated current draw (1.3 A max) - useful where panel-door space or 24 V budget is constrained. Portrait or landscape mounting is supported up to a 35-degree maximum incline without external ventilation, and vertical operation is rated to 50 degC. Step up to a larger-diagonal panel in this line when operator visibility distance or multi-window layouts need more screen real estate.

Applications

Fits machine-level HMI stations on panel doors or pedestal enclosures where PROFINET connects directly to a SIMATIC controller, and the 2-port switch allows daisy-chaining to the next network device without a separate industrial switch.
