Siemens 6AV2128-3KB36-0AX1 SIMATIC MTP1000 Unified Comfort 10-inch Multi-Touch HMI Operator Panel

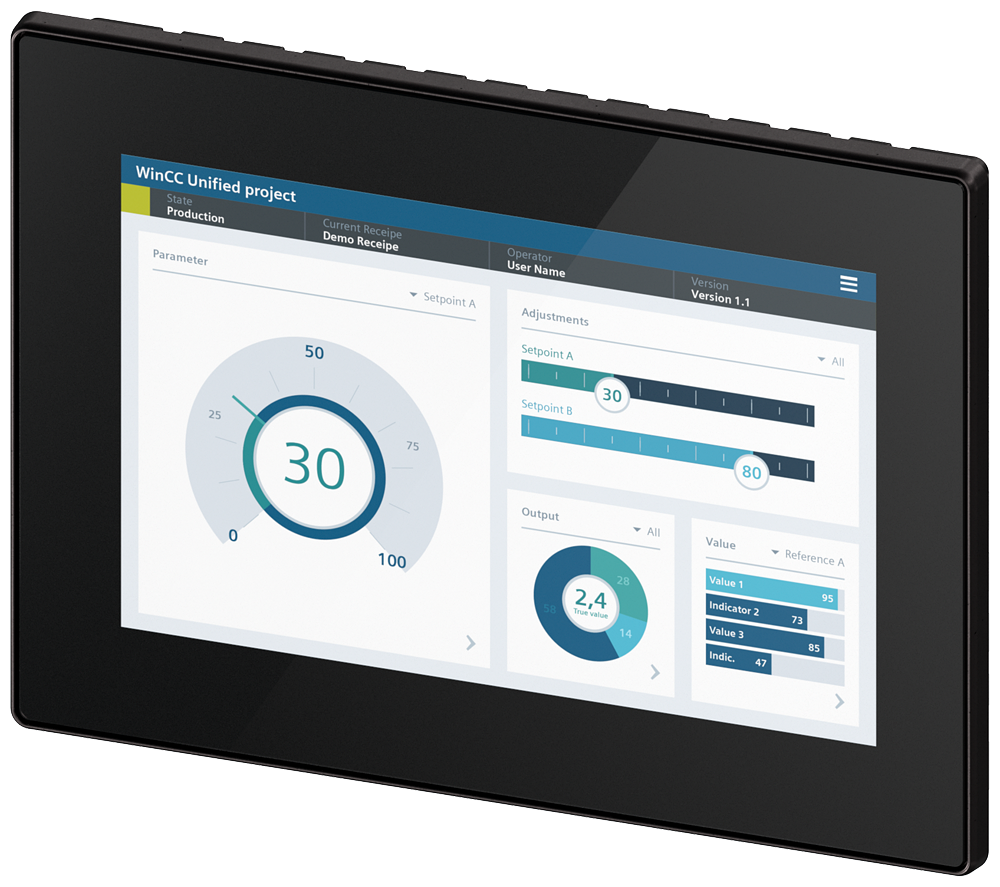

The Siemens 6AV2128-3KB36-0AX1 is a SIMATIC MTP1000 Unified Comfort HMI operator panel, a neutral 10.1-inch multi-touch panel configurable from WinCC Unified Comfort V16. It connects over PROFINET with two Ethernet ports plus an independent port, offers four USB 3.1 Gen 1 ports and two SD card slots, runs on 24V DC, and carries IP65 protection at the front.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• KC
• EAC
• CCC
• ABS
• BV
• DNV

Selection Notes

The MTP1000's 10.1-inch display and 1280x800 resolution give roughly double the pixel count of the 7-inch MTP700's 800x480, relevant where the Unified project uses multiple faceplates, trend charts or an overview screen alongside detail views on one panel. Current draw of 0.5 A, max 1.1 A, is only modestly higher than the MTP700's 0.45 A, max 1 A, despite the larger screen, so the same 24V DC panel supply typically covers either size. Choose the MTP1000 over the smaller MTP700 when screen real estate for simultaneous trend, alarm and process views outweighs the larger panel cutout it requires.

Applications

Fits primary operator stations on Unified-engineered machines needing a larger overview screen, such as multi-widget layouts or alarm lists alongside process graphics, where the 7-inch MTP700 would force excessive screen switching.
