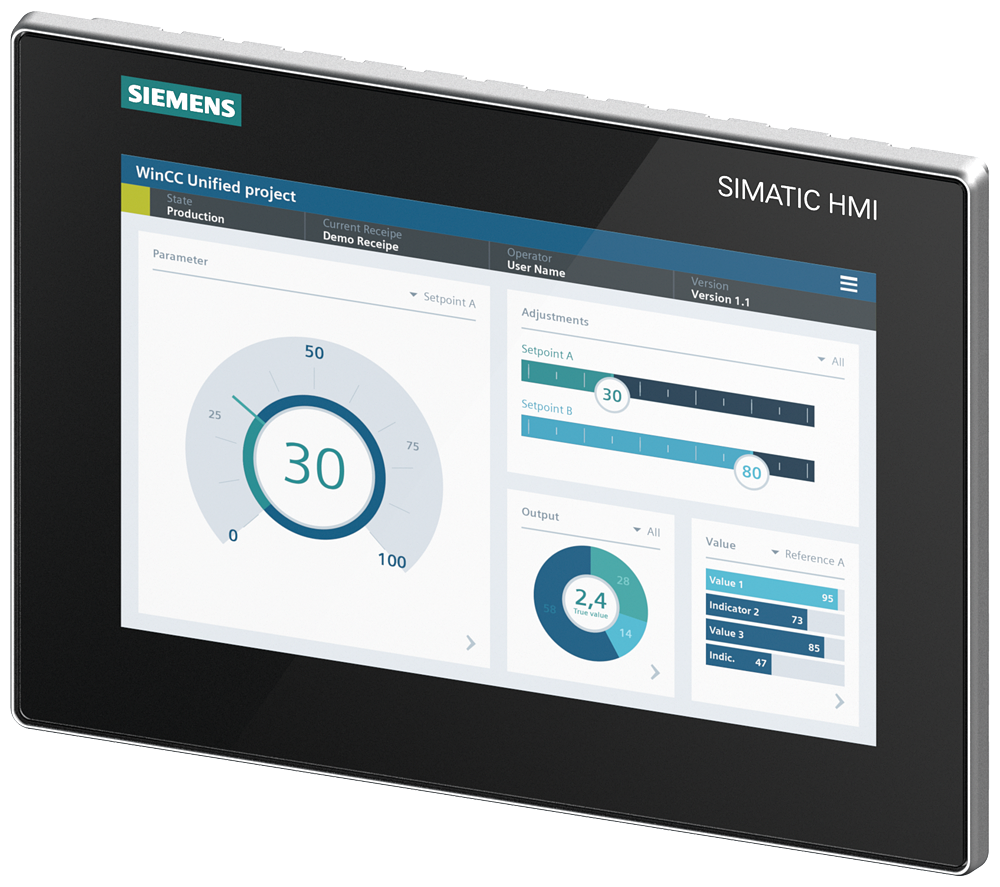

Siemens 6AV2128-3KB06-0AX1 SIMATIC HMI MTP1000 Unified Comfort 10.1-Inch PROFINET HMI Operator Panel

The Siemens 6AV2128-3KB06-0AX1 is a SIMATIC HMI MTP1000 Unified Comfort Panel with a 10.1-inch widescreen TFT touchscreen, 1,280 x 800 pixel resolution, and 16.7 million colors. It offers multi-touch operation, 2 PROFINET switch ports, 4 USB 3.1 interfaces, 2 SD card slots, and IP65 front protection, and is configurable from WinCC Unified Comfort V16.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• KC
• EAC
• CCC
• ABS
• BV
• DNV

Selection Notes

The 2-port PROFINET switch plus an independent third port support a linear or ring topology with media redundancy (MRP) without an external switch, so pick this panel over a single-port HMI when it sits mid-line on a PROFINET ring. IP65 front sealing with NEMA 4x/12 certification supports washdown-area mounting without an additional protective enclosure. Configuration requires WinCC Unified Comfort Engineering V16 or later in TIA Portal - it is not programmable in the classic WinCC Comfort/Advanced engineering environment used for older Comfort Panels.

Applications

Machine-level operator interfaces on PROFINET rings that need media redundancy, washdown or food and beverage production HMI mounting, and WinCC Unified-based visualization projects needing multi-touch input with on-panel web browser and PDF viewer applications.
