Siemens 6AV2124-0XC02-0AX1 SIMATIC HMI TP2200 Comfort 21.5in Touch Panel PROFINET

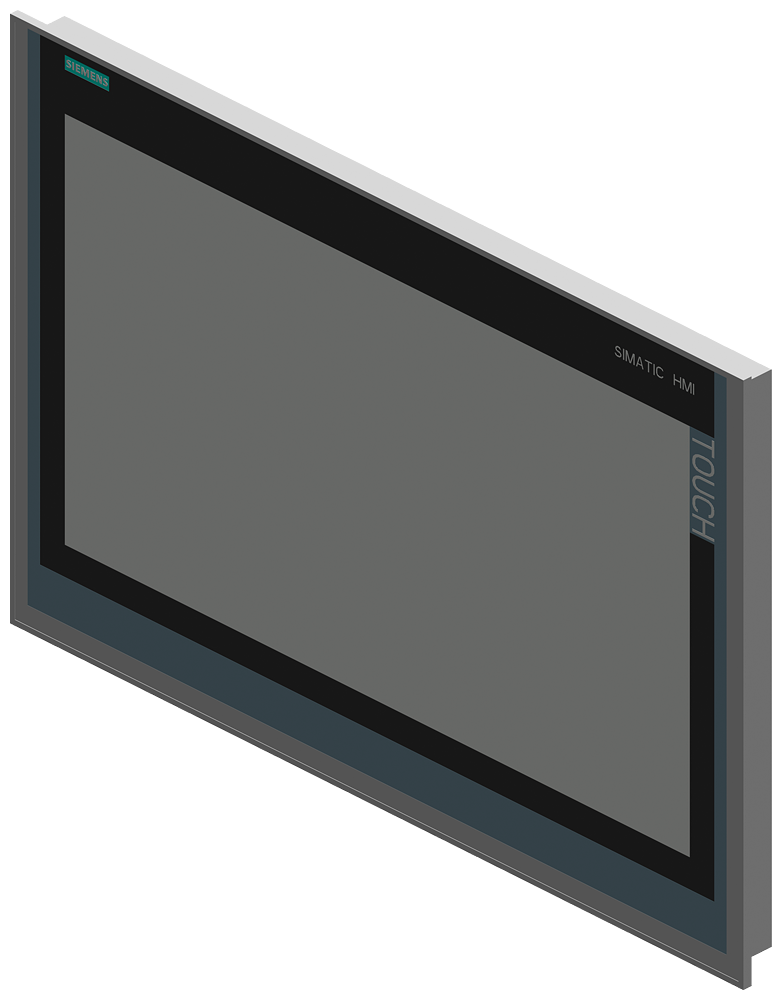

Siemens SIMATIC HMI TP2200 Comfort 6AV2124-0XC02-0AX1 is a 21.5in widescreen TFT touch panel with 1920x1080 resolution and 16.7 million colors, running Windows Embedded Compact 2013 from a 24 V DC supply. It carries PROFINET, PROFIBUS/MPI, and EtherNet/IP interfaces with 24 MB of user configuration memory, an integrated 2-port Ethernet switch, and IP65 front protection.

Technical Specifications

Certifications & Standards

• CE
• cULus
• RCM
• KC
• EAC

Selection Notes

At 21.5in and 1920x1080, this is the largest-format panel in this Comfort lineup, built for process overview screens rather than machine-local operation. The 2-port integrated Ethernet switch plus an independent third port supports a daisy-chained PROFINET line without an external switch, and the combined RS 422/485 interface covers PROFIBUS or MPI on the same connector. ATEX/IECEx Zone 2 and Zone 22 ratings on the device nameplate extend its use to gas- and dust-hazardous areas that a standard-rated panel cannot enter.

Applications

Sized for control-room and line-overview HMI where a 21.5in touch display, PROFINET/PROFIBUS connectivity, and IP65 front sealing are needed - SCADA-style operator stations, panel-mounted line monitors, and machines requiring ATEX Zone 2/22 hazardous-area approval.
