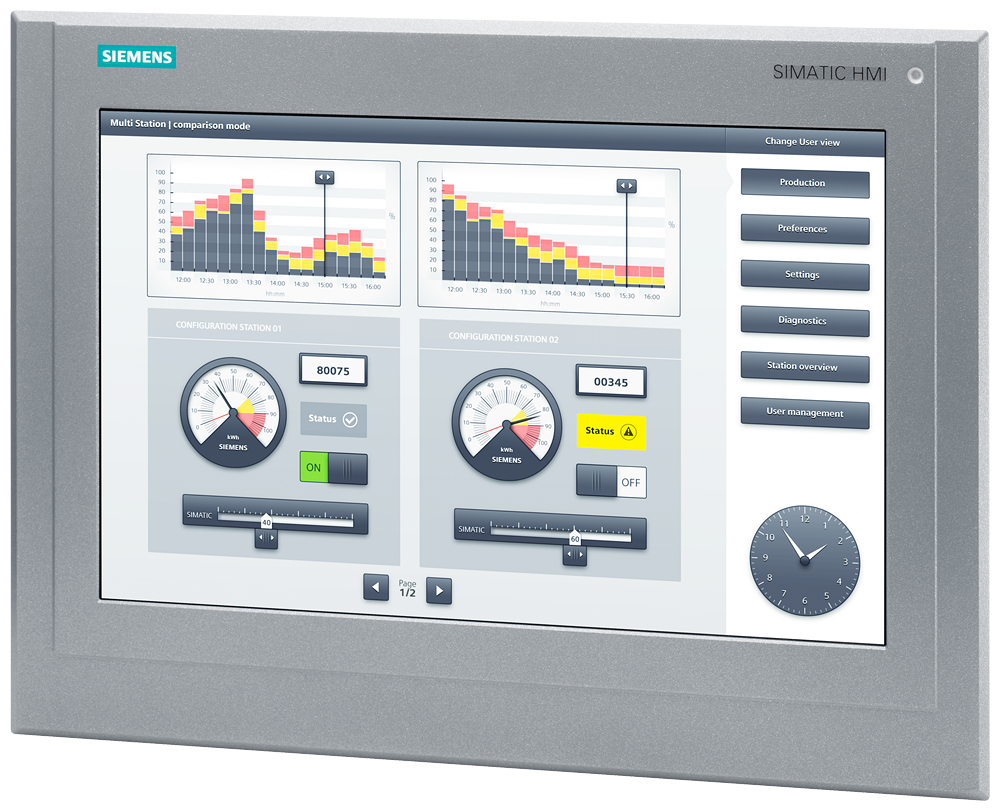

SIMATIC HMI TP1500Siemens 6AV2124-0QC13-0AX0 SIMATIC TP1500 Comfort Outdoor 15-inch Touch HMI Operator Panel
SIMATIC TP1500 Comfort Outdoor HMI, 15.4-inch touch, IP66 front, -30C to 60C, PROFINET/PROFIBUS, 24V DC.
Description
About the TP1500 Comfort Outdoor
About the TP1500 Comfort Outdoor
The Siemens 6AV2124-0QC13-0AX0 is a SIMATIC TP1500 Comfort Outdoor HMI operator panel with a 15.4-inch TFT touchscreen and IP66 protection at the front, built for outdoor and harsh-environment mounting. It runs Windows CE 6.0, connects over PROFINET, PROFIBUS DP, MPI and EtherNet/IP, and operates from -30C to 60C in vertical installation. The powder-coated, UV-resistant enclosure suits marine and offshore panels.
Certifications & Standards
- CE
- cULus
- RCM
- KC
- GL
- ABS
- BV
- DNV
- KRS
- LRS
Selection Notes
The 6AV2124-0QC13-0AX0 differs from the standard indoor TP1500 Comfort variants in its powder-coated, UV-resistant enclosure rated for outdoor mounting from -30C to 60C in vertical installation, dropping to 50C at maximum tilt angle. IP66 front protection plus NEMA 4/4X ratings make it suited for skid-mounted or outdoor cabinet HMIs exposed to washdown or weather, where a standard indoor Comfort Panel would not hold its rating outside. The 12 MB configuration memory and dual industrial Ethernet ports with an integrated 2-port switch support a PROFINET line topology without an external switch, and the 40 configurable touch buttons let discrete machine functions trigger without wiring separate pushbuttons into the panel.
Applications
Suited to outdoor skid HMIs, marine and offshore control panels covered by GL, ABS, DNV, LRS and KRS marine approvals, and machinery operating through wide ambient temperature swings where a standard indoor Comfort Panel would exceed its rated range.
Specification
Full specification
General information 1
| Product type designation | TP1500 Comfort Outdoor |
|---|
Display 9
| Design of display | TFT, bonded, daylight-readable |
|---|---|
| Screen diagonal | 15.4 in |
| Display width | 331.2 mm |
| Display height | 207 mm |
| Number of colors | 16 777 216 |
| Resolution (pixels): Horizontal image resolution | 1 280 pixel |
| Resolution (pixels): Vertical image resolution | 800 pixel |
| Backlighting: MTBF backlighting (at 25 °C) | 50 000 h |
| Backlighting: Backlight dimmable | Yes; LED, can be dimmed manually or automatically |
Control elements 10
| Function keys: Number of function keys | 0 |
|---|---|
| Function keys: Number of function keys with LEDs | 0 |
| Function keys: Keys with LED | No |
| Function keys: System keys | No |
| Function keys: Numeric keyboard | Yes; Onscreen keyboard |
| Function keys: alphanumeric keyboard | Yes; Onscreen keyboard |
| Touch operation: Design as touch screen | Yes; Analog-resistive |
| DP direct LEDs (LEDs as S7 output I/O): F1...Fx | 0 |
| Direct keys (keys as S7 input I/O): F1...Fx | 0 |
| Direct keys (keys as S7 input I/O): Direct keys (touch buttons as S7 input I/O) | 40 |
Show all 286 specifications ↓ Show less ↑266 more values in Identification, Installation type/mounting, Supply voltage, Input current, Power, Processor, Storage, Type of output, Time of day, Interfaces, Protocols, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Operating systems, Configuration, Languages, Functionality under WinCC (TIA Portal), Peripherals/Options, Accessories, Mechanics/material, Dimensions, Weights, Other, Logistics.
Identification 10
| Part number | 6AV2124-0QC13-0AX0 |
|---|---|
| Type designation | TP1500 Comfort Outdoor |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623405993 |
| ETIM class | EC001412 |
| eCl@ss | 27330201 |
Installation type/mounting 4
| Mounting position | vertical |
|---|---|
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage 4
| Type of supply voltage | DC |
|---|---|
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current 2
| Current consumption (rated value) | 1.3 A |
|---|---|
| Starting current inrush I2t | 0.5 A2·s |
Power 1
| Active power input, typ. | 32 W |
|---|
Processor 1
| Processor type | X86 |
|---|
Storage 3
| Flash | Yes |
|---|---|
| RAM | Yes |
| Memory available for user data | 12 Mbyte |
Type of output 5
| Info LED | No |
|---|---|
| Power LED | No |
| Error LED | No |
| Acoustics: Buzzer | No |
| Acoustics: Speaker | Yes |
Time of day 4
| Clock: Hardware clock (real-time) | Yes |
|---|---|
| Clock: Software clock | No |
| Clock: retentive | Yes; Back-up duration typically 6 weeks |
| Clock: synchronizable | Yes |
Interfaces 12
| Number of industrial Ethernet interfaces | 2 |
|---|---|
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 1 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet: Industrial Ethernet status LED | 2 |
| Industrial Ethernet: Number of ports of the integrated switch | 2 |
Protocols 22
| PROFINET | Yes |
|---|---|
| Supports protocol for PROFINET IO | Yes |
| IRT | Yes; WinCC V13 SP1 HSP or higher |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| Protocols (Ethernet): TCP/IP | Yes |
| Protocols (Ethernet): DHCP | Yes |
| Protocols (Ethernet): SNMP | Yes |
| Protocols (Ethernet): DCP | Yes |
| Protocols (Ethernet): LLDP | Yes |
| WEB characteristics: HTTP | Yes |
| WEB characteristics: HTTPS | No |
| WEB characteristics: HTML | Yes |
| WEB characteristics: XML | No |
| WEB characteristics: CSS | Yes |
| WEB characteristics: Active X | No |
| WEB characteristics: JavaScript | Yes |
| WEB characteristics: Java VM | No |
| Redundancy mode Media redundancy: MRP | Yes; WinCC V13 SP1 HSP or higher |
| Further protocols: CAN | No |
| Further protocols: MODBUS | Yes |
EMC 1
| Emission of radio interference acc. to EN 55 011: Limit class A, for use in industrial areas | Yes |
|---|
Degree and class of protection 4
| IP (at the front) | IP66 |
|---|---|
| IP (rear) | IP20 |
| NEMA (front): Enclosure Type 4 at the front | Yes |
| NEMA (front): Enclosure Type 4x at the front | Yes |
Standards, approvals, certificates 21
| CE mark | Yes |
|---|---|
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Use in hazardous areas: ATEX Zone 2 | Yes; for inscription on device rating plate |
| Use in hazardous areas: ATEX Zone 22 | Yes; for inscription on device rating plate |
| Use in hazardous areas: IECEx Zone 2 | Yes; for inscription on device rating plate |
| Use in hazardous areas: IECEx Zone 22 | Yes; for inscription on device rating plate |
| Use in hazardous areas: cULus Class I Zone 1 | No |
| Use in hazardous areas: cULus Class I Zone 2, Division 2 | Yes; for inscription on device rating plate |
| Use in hazardous areas: FM Class I Division 2 | Yes; for inscription on device rating plate |
| Marine approval: Germanischer Lloyd (GL) | Yes |
| Marine approval: American Bureau of Shipping (ABS) | Yes |
| Marine approval: Bureau Veritas (BV) | Yes |
| Marine approval: Det Norske Veritas (DNV) | Yes |
| Marine approval: Korean Register of Shipping (KRS) | Yes |
| Marine approval: Lloyds Register of Shipping (LRS) | Yes |
| Marine approval: Nippon Kaiji Kyokai (Class NK) | Yes |
| Marine approval: Polski Rejestr Statkow (PRS) | No |
| Marine approval: Chinese Classification Society (CCS) | Yes |
| Marine approval: Compass working clearance | 5 m |
Ambient conditions 7
| Suited for indoor use | Yes |
|---|---|
| Suited for outdoor use | Yes; Powder-coated, UV resistant |
| Ambient temperature during operation Operation (vertical installation): For vertical installation, min. | -30 °C |
| Ambient temperature during storage/transportation: min. | -30 °C |
| Ambient temperature during storage/transportation: max. | 70 °C |
| Altitude during operation relating to sea level: Installation altitude above sea level, max. | 3 000 m; Depending on the operating temperature |
| Relative humidity: Operation, max. | 90 %; no condensation |
Operating systems 2
| proprietary | No |
|---|---|
| pre-installed operating system: Windows CE | Yes |
Configuration 14
| Message indicator | Yes |
|---|---|
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration software: STEP 7 Basic (TIA Portal) | No |
| Configuration software: STEP 7 Professional (TIA Portal) | No |
| Configuration software: WinCC flexible Compact | No |
| Configuration software: WinCC flexible Standard | No |
| Configuration software: WinCC flexible Advanced | No |
| Configuration software: WinCC Basic (TIA Portal) | No |
| Configuration software: WinCC Comfort (TIA Portal) | Yes; WinCC V13 SP1 Update 7 + HSP or higher |
| Configuration software: WinCC Advanced (TIA Portal) | Yes; WinCC V13 SP1 Update 7 + HSP or higher |
| Configuration software: WinCC Professional (TIA Portal) | Yes; WinCC V13 SP1 Update 7 + HSP or higher |
Languages 2
| Online languages: Number of online/runtime languages | 32 |
|---|---|
| Project languages: Languages per project | 32 |
Functionality under WinCC (TIA Portal) 120
| Libraries | Yes |
|---|---|
| Applications/options: Web browser | Yes |
| Applications/options: Pocket Word | Yes |
| Applications/options: Pocket Excel | Yes |
| Applications/options: PDF Viewer | Yes |
| Applications/options: Media Player | Yes |
| Applications/options: SIMATIC WinCC Sm@rtServer | Yes |
| Applications/options: SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| Task planner: time-controlled | Yes |
| Task planner: task-controlled | Yes |
| Help system: Number of characters per info text | 70 |
| Message system: Number of alarm classes | 32 |
| Bit messages: Number of bit messages | 4 000 |
| Analog messages: Number of analog messages | 200 |
| Analog messages: S7 alarm number procedure | Yes |
| Analog messages: System messages HMI | Yes |
| Analog messages: System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Analog messages: Number of characters per message | 80 |
| Analog messages: Number of process values per message | 8 |
| Analog messages: Acknowledgment groups | Yes |
| Analog messages: Message indicator | Yes |
| Message buffer: Number of entries | 1 024 |
| Message buffer: Circulating buffer | Yes |
| Message buffer: retentive | Yes |
| Message buffer: maintenance-free | Yes |
| Recipe management: Number of recipes | 300 |
| Recipe management: Data records per recipe | 500 |
| Recipe management: Entries per data record | 1 000 |
| Recipe management: Size of internal recipe memory | 2 Mbyte |
| Recipe management: Recipe memory expandable | Yes |
| Variables: Number of variables per device | 2 048 |
| Variables: Number of variables per screen | 400 |
| Variables: Limit values | Yes |
| Variables: Multiplexing | Yes |
| Variables: Structures | Yes |
| Variables: Arrays | Yes |
| Images: Number of configurable images | 500 |
| Images: Permanent window/default | Yes |
| Images: Global image | Yes |
| Images: Image selection by PLC | Yes |
| Images: Image number in the PLC | Yes |
| Image objects: Number of objects per image | 400 |
| Image objects: Text fields | Yes |
| Image objects: I/O fields | Yes |
| Image objects: Graphic I/O fields (graphics list) | Yes |
| Image objects: Symbolic I/O fields (text list) | Yes |
| Image objects: Date/time fields | Yes |
| Image objects: Switches | Yes |
| Image objects: Buttons | Yes |
| Image objects: Graphic display | Yes |
| Image objects: Icons | Yes |
| Image objects: Geometric objects | Yes |
| Complex image objects: Number of complex objects per screen | 20 |
| Complex image objects: Alarm view | Yes |
| Complex image objects: Trend view | Yes |
| Complex image objects: User view | Yes |
| Complex image objects: Status/control | Yes |
| Complex image objects: Sm@rtClient view | Yes |
| Complex image objects: Recipe view | Yes |
| Complex image objects: f(x) trend view | Yes |
| Complex image objects: System diagnostics view | Yes |
| Complex image objects: Media Player | Yes |
| Complex image objects: IP camera display | Yes; Webcam type see FAQs |
| Complex image objects: Bar graphs | Yes |
| Complex image objects: Sliders | Yes |
| Complex image objects: Pointer instruments | Yes |
| Complex image objects: Analog/digital clock | Yes |
| Lists: Number of text lists per project | 500 |
| Lists: Number of entries per text list | 500 |
| Lists: Number of graphics lists per project | 500 |
| Lists: Number of entries per graphics list | 500 |
| Archiving: Number of archives per device | 50 |
| Archiving: Number of entries per archive | 20 000 |
| Archiving: Message archive | Yes |
| Archiving: Process value archive | Yes |
| Archiving methods: Sequential archive | Yes |
| Archiving methods: Short-term archive | Yes |
| Memory location: Memory card | Yes |
| Memory location: USB memory | Yes |
| Memory location: Ethernet | Yes |
| Data storage format: CSV | Yes |
| Data storage format: TXT | Yes |
| Data storage format: RDB | Yes |
| Security: Number of user groups | 50 |
| Security: Number of user rights | 32 |
| Security: Number of users | 50 |
| Security: Password export/import | Yes |
| Security: SIMATIC Logon | Yes |
| Logging through printer: Alarms | Yes |
| Logging through printer: Report (shift log) | Yes |
| Logging through printer: Hardcopy | Yes |
| Logging through printer: Electronic print to file | Yes; PDF, HTML |
| Keyboard fonts: US English | Yes |
| Transfer (upload/download): MPI/PROFIBUS DP | Yes |
| Transfer (upload/download): USB | Yes |
| Transfer (upload/download): Ethernet | Yes |
| Transfer (upload/download): using external storage medium | Yes; Backup/restore |
| Process coupling: S7-1200 | Yes |
| Process coupling: S7-1500 | Yes |
| Process coupling: S7-200 | Yes |
| Process coupling: S7-300/400 | Yes |
| Process coupling: LOGO! | Yes |
| Process coupling: WinAC | Yes |
| Process coupling: SINUMERIK | Yes; with SINUMERIK option package |
| Process coupling: SIMOTION | Yes |
| Process coupling: Allen Bradley (EtherNet/IP) | Yes |
| Process coupling: Allen Bradley (DF1) | Yes |
| Process coupling: Mitsubishi (MC TCP/IP) | Yes |
| Process coupling: Mitsubishi (FX) | Yes |
| Process coupling: OMRON (FINS TCP) | No |
| Process coupling: OMRON (Host Link) | Yes |
| Process coupling: Modicon (Modbus TCP/IP) | Yes |
| Process coupling: Modicon (Modbus RTU) | Yes |
| Process coupling: OPC UA Client | Yes |
| Process coupling: OPC UA Server | Yes |
| Service tools/configuration aids: Backup/Restore manually | Yes |
| Service tools/configuration aids: Backup/Restore automatically | Yes |
| Service tools/configuration aids: Simulation | Yes |
| Service tools/configuration aids: Device switchover | Yes |
Peripherals/Options 8
| Printer | Yes |
|---|---|
| SIMATIC HMI MM memory card: Multi Media Card | Yes |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes; e.g. USB RFID reader, see FAQ entry ID: 99808171 |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
| Network camera | Yes; See FAQ Entry ID: 62383298 and entry ID: 65647473 |
Accessories 2
| extension module | Optional e.g. USB RFID reader, see FAQ entry ID: 99808171 |
|---|---|
| Further accessories are available | Yes; Mounting clips and 2-pin power supply connector |
Mechanics/material 3
| Enclosure material (front): Plastic | No |
|---|---|
| Enclosure material (front): Aluminum | Yes; Powder-coated, UV resistant |
| Enclosure material (front): Stainless steel | No |
Dimensions 5
| Width of the housing front | 415 mm |
|---|---|
| Height of housing front | 310 mm |
| Mounting cutout, width | 396 mm |
| Mounting cutout, height | 291 mm |
| mounting depth | 73.2 mm |
Weights 2
| Weight (without packaging) | 4 kg |
|---|---|
| Weight (with packaging) | 6.2 kg |
Other 1
| Note: | Power, quantity structure and performance correspond to a standard 12" Comfort Panel |
|---|
Logistics 6
| Net weight | 5.33 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 6.33 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6AV2124-0QC13-0AX0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- cULus
- RCM (formerly C-TICK)
- KC approval
- Germanischer Lloyd (GL)
- American Bureau of Shipping (ABS)
- Bureau Veritas (BV)
- Det Norske Veritas (DNV)
- Korean Register of Shipping (KRS)
- Lloyds Register of Shipping (LRS)
Quick answers
Questions about the TP1500 Comfort Outdoor
What is the rated current of TP1500 Comfort Outdoor?
The rated current of TP1500 Comfort Outdoor is 1.3 A.
Which supply voltage is TP1500 Comfort Outdoor rated for?
The rated operational voltage of TP1500 Comfort Outdoor is 24 V AC.
What is the HS code of TP1500 Comfort Outdoor for customs?
The tariff (HS) code on file for TP1500 Comfort Outdoor is 85371091.
What is the EAN of TP1500 Comfort Outdoor?
The EAN (GTIN) of TP1500 Comfort Outdoor is 4047623405993.
Where does TP1500 Comfort Outdoor ship from, and how fast?
TP1500 Comfort Outdoor ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Guides
Guides for HMI operator panels
A Comparison of Leading Industrial Brands: ABB, Siemens and Schneider
Compare ABB, Siemens, and Schneider Electric across motor control, energy efficiency, installation, support, and power distribution. Shop at Stoklink.
Contactors: Essential Components For Motor Control And Automation
Contactors deliver safe, reliable motor control and automation switching for industrial systems, lighting, pumps, and heating loads. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC HMI TP1500
- Brand
- Siemens
- Series
- SIMATIC HMI TP1500
