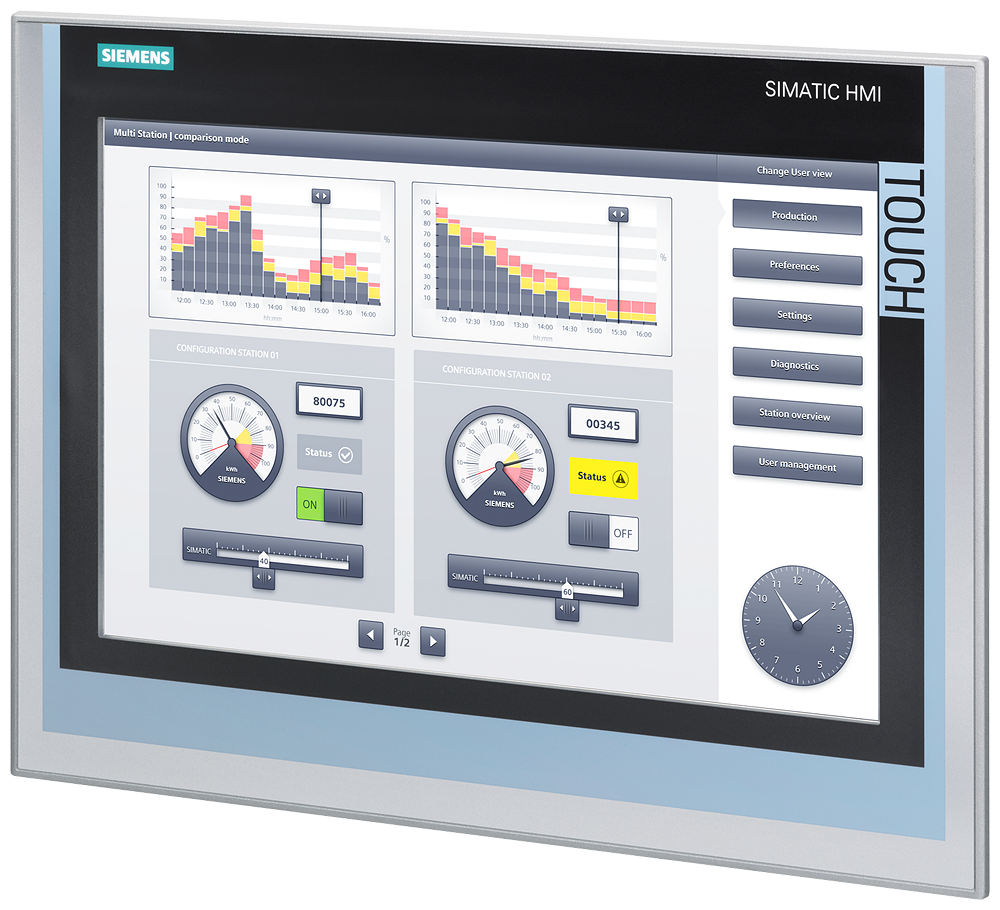

SIMATIC HMI TP1500Siemens 6AV2124-0QC02-0AX2 SIMATIC TP1500 Comfort 15-Inch PROFINET HMI Operator Panel
SIMATIC TP1500 Comfort, 15.4in TFT touch panel, 1280x800, PROFINET/PROFIBUS, IP65 front.
Description
About the TP1500 Comfort
About the TP1500 Comfort
The Siemens 6AV2124-0QC02-0AX2 SIMATIC HMI TP1500 Comfort is a 15.4-inch widescreen TFT touch panel with 1280x800 resolution and 16.7 million colors, built for PROFINET and PROFIBUS/MPI networks. It runs on 24 V DC, draws 41 W typical, and holds 24 MB of configuration memory under Windows Embedded Compact 2013.
Certifications & Standards
- CE
- cULus
- FM
- RCM
- KC
- EAC
Selection Notes
The 15.4-inch widescreen with 1280x800 resolution gives more room for complex mimic screens than the smaller Comfort panels in the same TP/KTP family — pick it when a project's screen layout needs the extra width rather than a compact footprint. Two Industrial Ethernet ports wired as a 2-port switch let it be daisy-chained into a PROFINET line without an external switch. The combined RS 485/422 interface plus MPI/PROFIBUS DP keeps it usable on legacy S7-300 systems as well as PROFINET-only S7-1500 lines, which narrows the gap versus PROFINET-only Comfort variants. IP65 at the front supports door-mounting in washdown or dusty cabinet fronts, while the 24 MB configuration memory caps how much recipe, alarm history, and multi-language text can be stored on board.
Applications
Machine-side operator stations, line HMI panels on mixed PROFINET/PROFIBUS plants, and cabinet-door mounted interfaces needing IP65 front sealing with MPI legacy connectivity.
Specification
Full specification
General information 1
| Product type designation | TP1500 Comfort |
|---|
Display 9
| Design of display | TFT |
|---|---|
| Screen diagonal | 15.4 in |
| Display width | 331.2 mm |
| Display height | 207 mm |
| Number of colors | 16 777 216 |
| Resolution (pixels): Horizontal image resolution | 1 280 pixel |
| Resolution (pixels): Vertical image resolution | 800 pixel |
| Backlighting: MTBF backlighting (at 25 °C) | 80 000 h |
| Backlighting: Backlight dimmable | Yes; LED, dimmable |
Control elements 7
| Function keys: Number of function keys | 0 |
|---|---|
| Function keys: Keys with LED | No |
| Function keys: System keys | No |
| Function keys: Numeric keyboard | Yes; Onscreen keyboard |
| Function keys: alphanumeric keyboard | Yes; Onscreen keyboard |
| Touch operation: Design as touch screen | Yes |
| Expansions for operator control of the process: Direct keys (touch buttons as S7 input I/O) | 40 |
Show all 285 specifications ↓ Show less ↑268 more values in Identification, Installation type/mounting, Supply voltage, Input current, Power, Processor, Storage, Type of output, Time of day, Interfaces, Protocols, Interrupts/diagnostics/status information, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Operating systems, Configuration, Languages, Functionality under WinCC (TIA Portal), Peripherals/Options, Mechanics/material, Dimensions, Weights, Logistics.
Identification 10
| Part number | 6AV2124-0QC02-0AX2 |
|---|---|
| Type designation | TP1500 Comfort |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515732167 |
| ETIM class | EC001412 |
| eCl@ss | 27330201 |
Installation type/mounting 4
| Mounting position | vertical |
|---|---|
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage 4
| Type of supply voltage | DC |
|---|---|
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current 2
| Current consumption (rated value) | 1.7 A |
|---|---|
| Starting current inrush I2t | 0.5 A2·s |
Power 1
| Active power input, typ. | 41 W |
|---|
Processor 1
| Processor type | X86 |
|---|
Storage 3
| Flash | Yes |
|---|---|
| RAM | Yes |
| Memory available for user data | 24 Mbyte |
Type of output 5
| Info LED | No |
|---|---|
| Power LED | No |
| Error LED | No |
| Acoustics: Buzzer | No |
| Acoustics: Speaker | Yes |
Time of day 4
| Clock: Hardware clock (real-time) | Yes |
|---|---|
| Clock: Software clock | Yes |
| Clock: retentive | Yes; Back-up duration typically 6 weeks |
| Clock: synchronizable | Yes |
Interfaces 11
| Number of industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
|---|---|
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet: Industrial Ethernet status LED | 3 |
| Industrial Ethernet: Number of ports of the integrated switch | 2 |
Protocols 22
| PROFINET | Yes |
|---|---|
| PROFINET IO | Yes |
| IRT | Yes; WinCC V14 SP1 HSP or higher |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| Protocols (Ethernet): TCP/IP | Yes |
| Protocols (Ethernet): DHCP | Yes |
| Protocols (Ethernet): SNMP | Yes |
| Protocols (Ethernet): DCP | Yes |
| Protocols (Ethernet): LLDP | Yes |
| WEB characteristics: HTTP | Yes |
| WEB characteristics: HTTPS | Yes |
| WEB characteristics: HTML | Yes |
| WEB characteristics: XML | Yes |
| WEB characteristics: CSS | Yes |
| WEB characteristics: Active X | Yes |
| WEB characteristics: JavaScript | Yes |
| WEB characteristics: Java VM | No |
| Redundancy mode Media redundancy: MRP | Yes |
| Further protocols: CAN | No |
| Further protocols: MODBUS | Yes |
Interrupts/diagnostics/status information 1
| Diagnoses: Diagnostic information readable | Yes; S7 controller |
|---|
EMC 1
| Emission of radio interference acc. to EN 55 011: Limit class A, for use in industrial areas | Yes |
|---|
Degree and class of protection 4
| IP (at the front) | IP65 |
|---|---|
| IP (rear) | IP20 |
| NEMA (front): Enclosure Type 4 at the front | Yes |
| NEMA (front): Enclosure Type 4x at the front | Yes |
Standards, approvals, certificates 24
| CE mark | Yes |
|---|---|
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| Use in hazardous areas: ATEX Zone 2 | Yes |
| Use in hazardous areas: ATEX Zone 22 | Yes |
| Use in hazardous areas: IECEx Zone 2 | Yes |
| Use in hazardous areas: IECEx Zone 22 | Yes |
| Use in hazardous areas: cULus Class I Zone 1 | No |
| Use in hazardous areas: cULus Class I Zone 2, Division 2 | Yes |
| Use in hazardous areas: cULus Class II Division 2 | No |
| Use in hazardous areas: FM Class I Division 2 | Yes |
| Use in hazardous areas: FM Class II Division 2 | No |
| Marine approval: Germanischer Lloyd (GL) | No |
| Marine approval: American Bureau of Shipping (ABS) | Yes |
| Marine approval: Bureau Veritas (BV) | Yes |
| Marine approval: Det Norske Veritas (DNV) | Yes |
| Marine approval: Korean Register of Shipping (KRS) | Yes |
| Marine approval: Lloyds Register of Shipping (LRS) | Yes |
| Marine approval: Nippon Kaiji Kyokai (Class NK) | Yes |
| Marine approval: Polski Rejestr Statkow (PRS) | No |
| Marine approval: Chinese Classification Society (CCS) | Yes |
Ambient conditions 6
| Suited for indoor use | Yes |
|---|---|
| Suited for outdoor use | No |
| Ambient temperature during operation Operation (vertical installation): For vertical installation, min. | 0 °C |
| Ambient temperature during storage/transportation: min. | -20 °C |
| Ambient temperature during storage/transportation: max. | 60 °C |
| Relative humidity: Operation, max. | 90 %; no condensation |
Operating systems 2
| proprietary | No |
|---|---|
| pre-installed operating system: Windows CE | Yes; Windows Embedded Compact 2013 |
Configuration 14
| Message indicator | Yes |
|---|---|
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration software: STEP 7 Basic (TIA Portal) | No |
| Configuration software: STEP 7 Professional (TIA Portal) | No |
| Configuration software: WinCC flexible Compact | No |
| Configuration software: WinCC flexible Standard | No |
| Configuration software: WinCC flexible Advanced | No |
| Configuration software: WinCC Basic (TIA Portal) | No |
| Configuration software: WinCC Comfort (TIA Portal) | Yes; V14 SP1 HSP and higher |
| Configuration software: WinCC Advanced (TIA Portal) | Yes; V14 SP1 HSP and higher |
| Configuration software: WinCC Professional (TIA Portal) | Yes; V14 SP1 HSP and higher |
Languages 2
| Online languages: Number of online/runtime languages | 32 |
|---|---|
| Project languages: Languages per project | 32 |
Functionality under WinCC (TIA Portal) 124
| Libraries | Yes |
|---|---|
| Applications/options: Web browser | Yes |
| Applications/options: Pocket Word | Yes |
| Applications/options: Pocket Excel | Yes |
| Applications/options: PDF Viewer | Yes |
| Applications/options: Media Player | Yes |
| Applications/options: SIMATIC WinCC Sm@rtServer | Yes |
| Applications/options: SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| Task planner: time-controlled | Yes |
| Task planner: task-controlled | Yes |
| Help system: Number of characters per info text | 320 |
| Message system: Number of alarm classes | 32 |
| Bit messages: Number of bit messages | 6 000 |
| Analog messages: Number of analog messages | 200 |
| Analog messages: S7 alarm number procedure | Yes |
| Analog messages: System messages HMI | Yes |
| Analog messages: System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Analog messages: Number of characters per message | 80 |
| Analog messages: Number of process values per message | 8 |
| Analog messages: Acknowledgment groups | Yes |
| Analog messages: Message indicator | Yes |
| Message buffer: Number of entries | 1 024 |
| Message buffer: Circulating buffer | Yes |
| Message buffer: retentive | Yes |
| Message buffer: maintenance-free | Yes |
| Recipe management: Number of recipes | 500 |
| Recipe management: Data records per recipe | 1 000 |
| Recipe management: Entries per data record | 2 000 |
| Recipe management: Size of internal recipe memory | 4 Mbyte |
| Recipe management: Recipe memory expandable | Yes |
| Variables: Number of variables per device | 4 096 |
| Variables: Number of variables per screen | 400 |
| Variables: Limit values | Yes |
| Variables: Multiplexing | Yes |
| Variables: Structures | Yes |
| Variables: Arrays | Yes |
| Images: Number of configurable images | 750 |
| Images: Permanent window/default | Yes |
| Images: Global image | Yes |
| Images: Pop-up images | Yes |
| Images: Slide-in images | Yes |
| Images: Image selection by PLC | Yes |
| Images: Image number in the PLC | Yes |
| Image objects: Number of objects per image | 600 |
| Image objects: Text fields | Yes |
| Image objects: I/O fields | Yes |
| Image objects: Graphic I/O fields (graphics list) | Yes |
| Image objects: Symbolic I/O fields (text list) | Yes |
| Image objects: Date/time fields | Yes |
| Image objects: Switches | Yes |
| Image objects: Buttons | Yes |
| Image objects: Graphic display | Yes |
| Image objects: Icons | Yes |
| Image objects: Geometric objects | Yes |
| Complex image objects: Number of complex objects per screen | 40 |
| Complex image objects: Alarm view | Yes |
| Complex image objects: Trend view | Yes |
| Complex image objects: User view | Yes |
| Complex image objects: Status/control | Yes |
| Complex image objects: Sm@rtClient view | Yes |
| Complex image objects: Recipe view | Yes |
| Complex image objects: f(x) trend view | Yes |
| Complex image objects: System diagnostics view | Yes |
| Complex image objects: Media Player | Yes |
| Complex image objects: HTML browser | Yes |
| Complex image objects: PDF display | Yes |
| Complex image objects: IP camera display | Yes |
| Complex image objects: Bar graphs | Yes |
| Complex image objects: Sliders | Yes |
| Complex image objects: Pointer instruments | Yes |
| Complex image objects: Analog/digital clock | Yes |
| Lists: Number of text lists per project | 500 |
| Lists: Number of entries per text list | 500 |
| Lists: Number of graphics lists per project | 500 |
| Lists: Number of entries per graphics list | 500 |
| Archiving: Number of archives per device | 50 |
| Archiving: Number of entries per archive | 50 000 |
| Archiving: Message archive | Yes |
| Archiving: Process value archive | Yes |
| Archiving methods: Sequential archive | Yes |
| Archiving methods: Short-term archive | Yes |
| Memory location: Memory card | Yes |
| Memory location: USB memory | Yes |
| Memory location: Ethernet | Yes |
| Data storage format: CSV | Yes |
| Data storage format: TXT | Yes |
| Data storage format: RDB | Yes |
| Security: Number of user groups | 50 |
| Security: Number of user rights | 32 |
| Security: Number of users | 50 |
| Security: Password export/import | Yes |
| Security: SIMATIC Logon | Yes |
| Logging through printer: Alarms | Yes |
| Logging through printer: Report (shift log) | Yes |
| Logging through printer: Hardcopy | Yes |
| Logging through printer: Electronic print to file | Yes; PDF, HTML |
| Keyboard fonts: US English | Yes |
| Transfer (upload/download): MPI/PROFIBUS DP | Yes |
| Transfer (upload/download): USB | Yes |
| Transfer (upload/download): Ethernet | Yes |
| Transfer (upload/download): using external storage medium | Yes |
| Process coupling: S7-1200 | Yes |
| Process coupling: S7-1500 | Yes |
| Process coupling: S7-200 | Yes |
| Process coupling: S7-300/400 | Yes |
| Process coupling: LOGO! | Yes |
| Process coupling: WinAC | Yes |
| Process coupling: SINUMERIK | Yes; with SINUMERIK option package |
| Process coupling: SIMOTION | Yes |
| Process coupling: Allen Bradley (EtherNet/IP) | Yes |
| Process coupling: Allen Bradley (DF1) | Yes |
| Process coupling: Mitsubishi (MC TCP/IP) | Yes |
| Process coupling: Mitsubishi (FX) | Yes |
| Process coupling: OMRON (FINS TCP) | No |
| Process coupling: OMRON (Host Link) | Yes |
| Process coupling: Modicon (Modbus TCP/IP) | Yes |
| Process coupling: Modicon (Modbus RTU) | Yes |
| Process coupling: OPC UA Client | Yes |
| Process coupling: OPC UA Server | Yes |
| Service tools/configuration aids: Backup/Restore manually | Yes |
| Service tools/configuration aids: Backup/Restore automatically | Yes |
| Service tools/configuration aids: Simulation | Yes |
| Service tools/configuration aids: Device switchover | Yes |
Peripherals/Options 8
| Printer | Yes |
|---|---|
| SIMATIC HMI MM memory card: Multi Media Card | Yes; Up to 128 MB |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes; Up to 2 GB |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes; Up to 16 GB |
| SIMATIC HMI USB stick | Yes; Up to 8 GB |
| Network camera | Yes |
Mechanics/material 3
| Enclosure material (front): plastic | No |
|---|---|
| Enclosure material (front): aluminum | Yes |
| Enclosure material (front): Stainless steel | No |
Dimensions 5
| Width of the housing front | 415 mm |
|---|---|
| Height of housing front | 310 mm |
| Mounting cutout, width | 396 mm |
| Mounting cutout, height | 291 mm |
| mounting depth | 73.2 mm |
Weights 1
| Weight (without packaging) | 4.4 kg |
|---|
Logistics 6
| Net weight | 5.46 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 6.46 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6AV2124-0QC02-0AX2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- cULus
- FM approval
- RCM (formerly C-TICK)
- KC approval
- EAC (formerly Gost-R)
- American Bureau of Shipping (ABS)
- Bureau Veritas (BV)
- Det Norske Veritas (DNV)
- Korean Register of Shipping (KRS)
Quick answers
Questions about the TP1500 Comfort
What is the rated current of TP1500 Comfort?
The rated current of TP1500 Comfort is 1.7 A.
Which supply voltage is TP1500 Comfort rated for?
The rated operational voltage of TP1500 Comfort is 24 V AC.
What is the HS code of TP1500 Comfort for customs?
The tariff (HS) code on file for TP1500 Comfort is 85371091.
What is the EAN of TP1500 Comfort?
The EAN (GTIN) of TP1500 Comfort is 4025515732167.
Where does TP1500 Comfort ship from, and how fast?
TP1500 Comfort ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Guides
Guides for HMI operator panels
A Comparison of Leading Industrial Brands: ABB, Siemens and Schneider
Compare ABB, Siemens, and Schneider Electric across motor control, energy efficiency, installation, support, and power distribution. Shop at Stoklink.
Contactors: Essential Components For Motor Control And Automation
Contactors deliver safe, reliable motor control and automation switching for industrial systems, lighting, pumps, and heating loads. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC HMI TP1500
- Brand
- Siemens
- Series
- SIMATIC HMI TP1500
