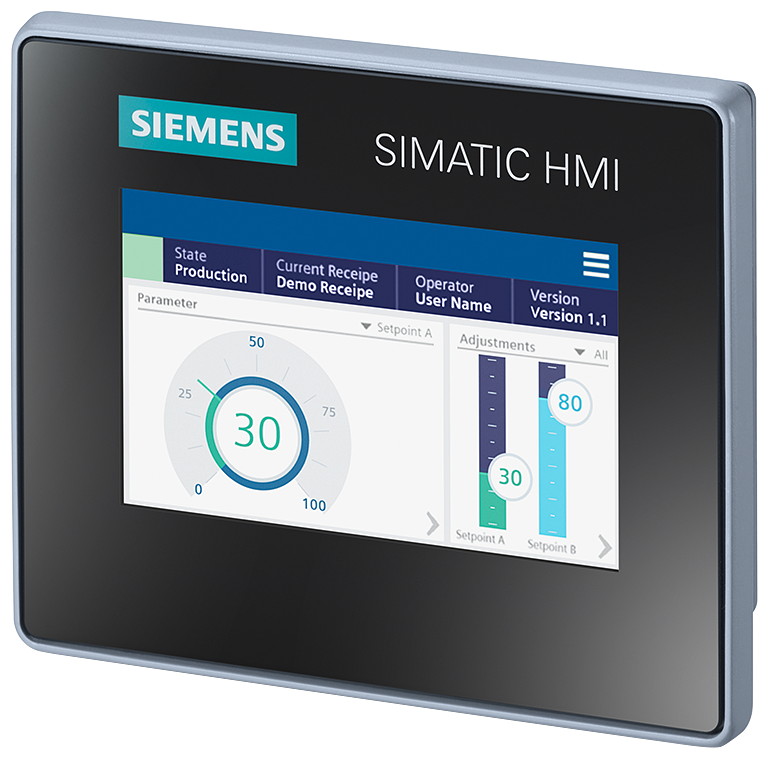

SIMATIC HMI MTP400Siemens 6AV2123-3DB32-0AW0 SIMATIC HMI MTP400 Unified Basic 4.3in PROFINET Touch Operator Panel
SIMATIC HMI MTP400 Unified Basic, 4.3in touch panel, PROFINET, IP65 front
Description
About the MTP400 Unified Basic
About the MTP400 Unified Basic
The Siemens 6AV2123-3DB32-0AW0 is a SIMATIC HMI MTP400 Unified Basic panel with a 4.3-inch widescreen TFT touch display, 800 x 480 pixel resolution, and 16.7 million colors. It runs on 24 V DC, connects via a single Gigabit PROFINET interface, and carries IP65 protection at the front for panel-mount installation.
Certifications & Standards
- CE
- UKCA
- cULus
- RCM
- KC
Selection Notes
The 4.3-inch MTP400 is the entry size in the Unified Basic line, aimed at panels where a compact touch interface is enough and the single PROFINET port handles both engineering access and controller communication. Configuration requires WinCC Unified Basic Engineering from TIA Portal V18 Update 3 onward, so it is not backward-compatible with older WinCC Comfort/Advanced projects the way legacy Comfort panels are. Pick a larger Unified Basic or Unified Comfort panel instead when the application needs more screen real estate or a second Ethernet port for network segregation.
Applications
Fits compact machine control stations, OEM equipment front panels, and skid-mounted process units where a single-page or few-page operator interface over PROFINET is sufficient.
Specification
Full specification
General information 1
| Product type designation | MTP400 Unified Basic |
|---|
Display 9
| Design of display | TFT |
|---|---|
| Screen diagonal | 4.3 in |
| Display width | 93.6 mm |
| Display height | 56.2 mm |
| Number of colors | 16 777 216 |
| Resolution (pixels): Horizontal image resolution | 800 pixel |
| Resolution (pixels): Vertical image resolution | 480 pixel |
| Backlighting: MTBF backlighting (at 25 °C) | 20 000 h; At 25°C |
| Backlighting: Backlight dimmable | Yes; 10 ... 100% |
Control elements 5
| Keyboard: Numeric keyboard | Yes; Onscreen keyboard |
|---|---|
| Keyboard: alphanumeric keyboard | Yes; Onscreen keyboard |
| Touch operation: Design as touch screen | Yes |
| Touch operation: Design as multi-touch screen | Yes |
| Touch operation: Monitor keyboard | Yes |
Show all 239 specifications ↓ Show less ↑224 more values in Identification, Installation type/mounting, Supply voltage, Input current, Power, Processor, Storage, Type of output, Time of day, Interfaces, Protocols, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Operating systems, Configuration, Languages, Functionality under WinCC Unified, Peripherals/Options, Mechanics/material, Dimensions, Weights, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6AV2123-3DB32-0AW0 |
|---|---|
| Type designation | MTP400 Unified Basic |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106035181 |
| ETIM class | EC001412 |
| eCl@ss | 27330201 |
Installation type/mounting 4
| Mounting position | vertical |
|---|---|
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage 4
| Type of supply voltage | DC |
|---|---|
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current 5
| Current consumption (rated value) | 0.16 A |
|---|---|
| current consumption (for rated value of supply voltage), min. | 0.14 A |
| current consumption (for rated value of supply voltage), max. | 0.47 A |
| Current consumption, max. | 0.63 A; at 19.2 V |
| Starting current inrush I2t | 0.45 A2·s |
Power 1
| Active power input, typ. | 3.8 W |
|---|
Processor 1
| Processor type | ARM |
|---|
Storage 2
| Flash | Yes |
|---|---|
| RAM | Yes |
Type of output 2
| Acoustics: Buzzer | No |
|---|---|
| Acoustics: Speaker | No |
Time of day 4
| Clock: Hardware clock (real-time) | Yes |
|---|---|
| Clock: Software clock | Yes |
| Clock: retentive | Yes; Back-up duration typically 6 weeks |
| Clock: synchronizable | Yes |
Interfaces 7
| Number of industrial Ethernet interfaces | 1; Gigabit Ethernet (IE/PN), RJ45 |
|---|---|
| Number of RS 485 interfaces | 0 |
| Number of RS 422 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| Number of SD card slots | 0 |
| Industrial Ethernet: Industrial Ethernet status LED | 2 |
| Industrial Ethernet: Number of ports of the integrated switch | 1 |
Protocols 10
| PROFINET | Yes |
|---|---|
| Supports protocol for PROFINET IO | No |
| MPI | No |
| Protocols (Ethernet): TCP/IP | Yes |
| Protocols (Ethernet): DHCP | Yes |
| Protocols (Ethernet): SNMP | Yes |
| Protocols (Ethernet): DCP | Yes |
| Protocols (Ethernet): LLDP | Yes |
| Redundancy mode Media redundancy: MRP | No |
| Further protocols: CAN | No |
EMC 1
| Emission of radio interference acc. to EN 55 011: Limit class A, for use in industrial areas | Yes |
|---|
Degree and class of protection 6
| IP (at the front) | IP65 |
|---|---|
| IP (rear) | IP20 |
| NEMA (front) | NEMA 4, NEMA 4x (when installed) |
| Enclosure Type 4 at the front | Yes |
| Enclosure Type 4x at the front | Yes |
| Enclosure Type 12 at the front | No |
Standards, approvals, certificates 29
| CE mark | Yes |
|---|---|
| UKCA mark | Yes |
| cULus | Yes |
| FM approval | No |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | No |
| CCC | No |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 89.7 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 16.2 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 74.4 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -1.09 kg |
| Use in hazardous areas: ATEX Zone 2 | No |
| Use in hazardous areas: ATEX Zone 22 | No |
| Use in hazardous areas: IECEx Zone 2 | No |
| Use in hazardous areas: IECEx Zone 22 | No |
| Use in hazardous areas: cULus Class I Zone 2, Division 2 | No |
| Use in hazardous areas: cULus Class II Division 2 | No |
| Use in hazardous areas: FM Class I Division 2 | No |
| Use in hazardous areas: FM Class II Division 2 | No |
| Marine approval: Germanischer Lloyd (GL) | No; included in DNV |
| Marine approval: American Bureau of Shipping (ABS) | Yes; in preparation |
| Marine approval: Bureau Veritas (BV) | Yes; in preparation |
| Marine approval: Det Norske Veritas (DNV) | Yes |
| Marine approval: Korean Register of Shipping (KRS) | Yes |
| Marine approval: Lloyds Register of Shipping (LRS) | Yes |
| Marine approval: Nippon Kaiji Kyokai (Class NK) | Yes |
| Marine approval: Chinese Classification Society (CCS) | Yes |
Ambient conditions 6
| Suited for indoor use | Yes |
|---|---|
| Suited for outdoor use | No |
| Ambient temperature during operation Operation (vertical installation): For vertical installation, min. | 0 °C |
| Ambient temperature during storage/transportation: min. | -20 °C |
| Ambient temperature during storage/transportation: max. | 60 °C |
| Relative humidity: Operation, max. | 90 %; no condensation |
Operating systems 1
| proprietary | Yes |
|---|
Configuration 8
| Message indicator | Yes |
|---|---|
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Recipe management | Yes |
| Configuration software: WinCC Advanced (TIA Portal) | Yes |
| Configuration software: WinCC Professional (TIA Portal) | Yes |
| Configuration software: WinCC Unified Basic Engineering (TIA Portal) | Yes |
| Configuration software: WinCC Unified Comfort Engineering (TIA Portal) | Yes |
| Configuration software: WinCC Unified PC Engineering (TIA Portal) | Yes |
Languages 2
| Online languages: Number of online/runtime languages | 32 |
|---|---|
| Project languages: Languages per project | 32 |
Functionality under WinCC Unified 96
| Libraries | Yes |
|---|---|
| Applications/options | No |
| Number of Visual Basic Scripts | No |
| JavaScript | Yes |
| Task planner: time-controlled | Yes |
| Task planner: task-controlled | Yes |
| Help system: Number of characters per info text | 70 |
| Help system: Number of message texts per message | 10 |
| Message system: Number of alarm classes | 32 |
| Bit messages: Number of bit messages | 2 000 |
| Analog messages: Number of analog messages | 100 |
| Analog messages: S7 alarm number procedure | Yes |
| Analog messages: System messages HMI | Yes |
| Analog messages: System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Analog messages: Number of characters per message | 512 |
| Analog messages: Number of process values per message | 10 |
| Analog messages: Acknowledgment groups | Yes |
| Analog messages: Message indicator | No |
| Analog messages: Message buffer | Yes; Configured as alarm archive |
| Analog messages: Circulating buffer | Yes |
| Analog messages: retentive | Yes |
| Analog messages: maintenance-free | Yes |
| Parameter set management (recipes): Number of parameter set types | 250 |
| Parameter set management (recipes): Parameter sets per parameter set type | 250 |
| Parameter set management (recipes): Entries per parameter set | 250 |
| Parameter set management (recipes): Size of internal parameter set memory | 5 Mbyte |
| Parameter set management (recipes): Parameter set memory expandable | Yes |
| Variables: Number of variables per device | 1 000 |
| Variables: Number of variables per screen | 300 |
| Variables: Limit values | Yes |
| Variables: Structures | Yes |
| Variables: Arrays | Yes |
| Images: Number of configurable images | 300 |
| Images: Faceplate | Yes |
| Image objects: Number of objects per image | 600 |
| Image objects: Picture window | Yes |
| Image objects: Text fields | Yes |
| Image objects: I/O fields | Yes |
| Image objects: Graphic I/O fields (graphics list) | Yes |
| Image objects: Symbolic I/O fields (text list) | Yes |
| Image objects: Scalable Vector Graphics (SVG) | Yes |
| Image objects: Date/time fields | Yes |
| Image objects: Checkbox | Yes |
| Image objects: Option button | Yes |
| Image objects: Switches | Yes |
| Image objects: Buttons | Yes |
| Image objects: Graphic display | Yes |
| Image objects: Icons | Yes |
| Image objects: Custom web display | No |
| Image objects: Geometric objects | Yes |
| Complex image objects: Number of complex objects per screen | 5 |
| Complex image objects: Alarm view | Yes |
| Complex image objects: Trend view | Yes |
| Complex image objects: User view | Yes |
| Complex image objects: Status/control | Yes |
| Complex image objects: Parameter set display | Yes |
| Complex image objects: HTML browser | Yes |
| Complex image objects: Bar graphs | Yes |
| Complex image objects: Sliders | Yes |
| Complex image objects: Pointer instruments | Yes |
| Complex image objects: Analog/digital clock | Yes |
| Lists: Number of text lists per project | 300 |
| Lists: Number of entries per text list | 250 |
| Lists: Number of graphics lists per project | 100 |
| Lists: Number of entries per graphics list | 250 |
| Archiving: Number of archives per device | 10 |
| Archiving: Number of entries per archive | 50 000 |
| Archiving: Message archive | Yes |
| Archiving: Process value archive | Yes |
| Archiving methods: Sequential archive | Yes |
| Archiving methods: Short-term archive | Yes |
| Memory location: Memory card | No |
| Memory location: USB memory | Yes |
| Memory location: Ethernet | No |
| Security: Number of roles | 50 |
| Security: Number of function rights | 20; V18 |
| Security: Number of users | 200 |
| Security: Password export/import | Yes |
| Security: Central user administration | Yes |
| Transfer (upload/download): USB | Yes |
| Transfer (upload/download): Ethernet | Yes |
| Transfer (upload/download): using external storage medium | Yes |
| Process coupling: S7-1200 | Yes |
| Process coupling: S7-1500 | Yes |
| Process coupling: S7-200 | No |
| Process coupling: S7-300/400 | Yes |
| Process coupling: Number of S7 connections | 8 |
| Process coupling: LOGO! | Yes; as of WinCC Unified V20 |
| Process coupling: SIMOTION | No |
| Process coupling: OPC UA Client | Yes |
| Process coupling: OPC UA Server | No |
| Process coupling: Software Controller/Open Controller | No |
| Service tools/configuration aids: Backup/Restore manually | Yes |
| Service tools/configuration aids: Backup/Restore automatically | No |
| Service tools/configuration aids: Simulation | Yes |
| Service tools/configuration aids: Device switchover | Yes |
Peripherals/Options 9
| Peripherals | Barcode reader |
|---|---|
| Printer | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
| Network camera | No |
Mechanics/material 1
| Enclosure material (front): Plastic | Yes |
|---|
Dimensions 5
| Width of the housing front | 140 mm |
|---|---|
| Height of housing front | 116 mm |
| Mounting cutout, width | 123 mm |
| Mounting cutout, height | 99 mm |
| mounting depth | 36 mm |
Weights 2
| Weight (without packaging) | 0.45 kg |
|---|---|
| Weight (with packaging) | 0.53 kg |
Approvals / Certificates 1
| General Product Approval | Manufacturer Declara- tion |
|---|
Logistics 7
| Net weight | 0.45 kg |
|---|---|
| Package dimensions | 197 × 132 × 50 mm |
| Country of origin | CN |
| Shipping weight | 0.95 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6AV2123-3DB32-0AW0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- UKCA mark
- cULus
- RCM (formerly C-TICK)
- KC approval
- Det Norske Veritas (DNV)
- Korean Register of Shipping (KRS)
- Lloyds Register of Shipping (LRS)
- Nippon Kaiji Kyokai (Class NK)
- Chinese Classification Society (CCS)
Quick answers
Questions about the MTP400 Unified Basic
Which supply voltage is MTP400 Unified Basic rated for?
The rated operational voltage of MTP400 Unified Basic is 24 V AC.
What is the HS code of MTP400 Unified Basic for customs?
The tariff (HS) code on file for MTP400 Unified Basic is 85371091.
What is the EAN of MTP400 Unified Basic?
The EAN (GTIN) of MTP400 Unified Basic is 4034106035181.
Where does MTP400 Unified Basic ship from, and how fast?
MTP400 Unified Basic ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Guides
Guides for HMI operator panels
A Comparison of Leading Industrial Brands: ABB, Siemens and Schneider
Compare ABB, Siemens, and Schneider Electric across motor control, energy efficiency, installation, support, and power distribution. Shop at Stoklink.
Contactors: Essential Components For Motor Control And Automation
Contactors deliver safe, reliable motor control and automation switching for industrial systems, lighting, pumps, and heating loads. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC HMI MTP400
- Brand
- Siemens
- Series
- SIMATIC HMI MTP400
