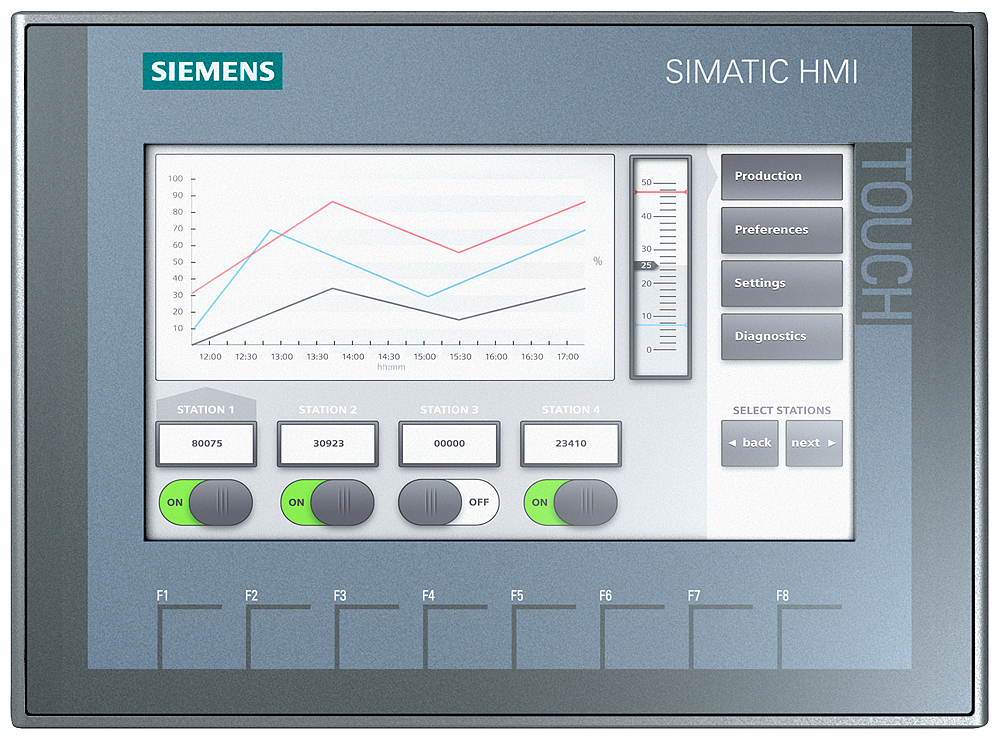

SIMATIC HMI KTP700Siemens 6AV2123-2GA03-0AX0 SIMATIC KTP700 Basic DP 7-inch Touch HMI Operator Panel
SIMATIC HMI KTP700 Basic DP, 7-inch touchscreen, 800x480, PROFIBUS/MPI, IP65 front, WinCC Basic.
Description
About the KTP700 Basic color DP
About the KTP700 Basic color DP
The Siemens 6AV2123-2GA03-0AX0 is a SIMATIC HMI KTP700 Basic DP operator panel with a 7-inch TFT touchscreen at 800 x 480 resolution and 65,536 colors, 8 function keys, and a PROFIBUS/MPI interface. The front is rated IP65, the rear IP20, and it is configured through WinCC Basic in TIA Portal V13 or later.
Certifications & Standards
- CE
- cULus
- RCM
- KC
- GL
- ABS
- BV
- DNV
- LRS
- Nippon Kaiji Kyokai (Class NK)
Selection Notes
The DP suffix means this panel connects over PROFIBUS/MPI rather than Ethernet — pick the PN variant instead if the automation cell is PROFINET-based. A single combined RS485/RS422 port carries both DP and MPI traffic, so it cannot run PROFIBUS and a separate serial protocol simultaneously on two physical ports. With 800 x 480 resolution and 10 MB of user memory, it suits single-machine HMI screens with basic alarming and recipe needs rather than multi-screen SCADA-style projects; WinCC Comfort or Advanced panels are the step up when more variables or scripting are required.
Applications
Operator interface for standalone machines and skids on PROFIBUS/MPI networks — status display, alarm acknowledgment, and recipe selection at the machine, in both general indoor industrial and IP65-rated panel-front environments.
Specification
Full specification
General information 1
| Product type designation | KTP700 Basic color DP |
|---|
Display 9
| Design of display | TFT widescreen display, LED backlighting |
|---|---|
| Screen diagonal | 7 in |
| Display width | 154.1 mm |
| Display height | 85.9 mm |
| Number of colors | 65 536 |
| Resolution (pixels): Horizontal image resolution | 800 pixel |
| Resolution (pixels): Vertical image resolution | 480 pixel |
| Backlighting: MTBF backlighting (at 25 °C) | 20 000 h |
| Backlighting: Backlight dimmable | Yes |
Control elements 7
| Function keys: Number of function keys | 8 |
|---|---|
| Function keys: Number of function keys with LEDs | 0 |
| Function keys: Keys with LED | No |
| Function keys: System keys | No |
| Function keys: Numeric keyboard | Yes; Onscreen keyboard |
| Function keys: alphanumeric keyboard | Yes; Onscreen keyboard |
| Touch operation: Design as touch screen | Yes; Analog-resistive |
Show all 264 specifications ↓ Show less ↑247 more values in Identification, Installation type/mounting, Supply voltage, Input current, Power, Processor, Storage, Type of output, Time of day, Interfaces, Protocols, Interrupts/diagnostics/status information, EMC, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Operating systems, Configuration, Languages, Functionality under WinCC (TIA Portal), Peripherals/Options, Mechanics/material, Version Classification, Logistics.
Identification 10
| Part number | 6AV2123-2GA03-0AX0 |
|---|---|
| Type designation | KTP700 Basic color DP |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106029227 |
| ETIM class | EC001412 |
| eCl@ss | 27330201 |
Installation type/mounting 4
| Mounting position | vertical |
|---|---|
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage 4
| Type of supply voltage | DC |
|---|---|
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current 2
| Current consumption (rated value) | 230 mA |
|---|---|
| Starting current inrush I2t | 0.2 A2·s |
Power 1
| Active power input, typ. | 5.5 W |
|---|
Processor 1
| Processor type | ARM |
|---|
Storage 3
| Flash | Yes |
|---|---|
| RAM | Yes |
| Memory available for user data | 10 Mbyte |
Type of output 2
| Acoustics: Buzzer | Yes |
|---|---|
| Acoustics: Speaker | No |
Time of day 4
| Clock: Hardware clock (real-time) | Yes |
|---|---|
| Clock: Software clock | Yes |
| Clock: retentive | Yes; Back-up duration typically 6 weeks |
| Clock: synchronizable | Yes |
Interfaces 11
| Number of industrial Ethernet interfaces | 0 |
|---|---|
| Number of RS 485 interfaces | 1 |
| Number of RS 422 interfaces | 1; together with RS 485 |
| Number of RS 232 interfaces | 0; with optional adapter |
| Number of USB interfaces | 1; Up to 16 GB |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| Industrial Ethernet: Industrial Ethernet status LED | 0 |
Protocols 16
| PROFINET | No |
|---|---|
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | Yes |
| EtherNet/IP | No |
| MPI | Yes |
| Protocols (Ethernet): TCP/IP | No |
| Protocols (Ethernet): DHCP | No |
| Protocols (Ethernet): SNMP | No |
| Protocols (Ethernet): DCP | No |
| Protocols (Ethernet): LLDP | No |
| WEB characteristics: HTTP | No |
| WEB characteristics: HTML | No |
| Redundancy mode Media redundancy: MRP | No |
| Further protocols: CAN | No |
| Further protocols: MODBUS | Yes; Modicon (MODBUS RTU) |
Interrupts/diagnostics/status information 1
| Diagnoses: Diagnostic information readable | No |
|---|
EMC 1
| Emission of radio interference acc. to EN 55 011: Limit class A, for use in industrial areas | Yes |
|---|
Degree and class of protection 4
| IP (at the front) | IP65 |
|---|---|
| IP (rear) | IP20 |
| NEMA (front): Enclosure Type 4 at the front | Yes |
| NEMA (front): Enclosure Type 4x at the front | Yes |
Standards, approvals, certificates 24
| CE mark | Yes |
|---|---|
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 85 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 26.2 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 59.2 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.682 kg |
| Use in hazardous areas: ATEX Zone 2 | No |
| Use in hazardous areas: ATEX Zone 22 | No |
| Use in hazardous areas: IECEx Zone 2 | No |
| Use in hazardous areas: IECEx Zone 22 | No |
| Use in hazardous areas: cULus Class I Zone 1 | No |
| Use in hazardous areas: cULus Class I Zone 2, Division 2 | No |
| Use in hazardous areas: FM Class I Division 2 | No |
| Marine approval: Germanischer Lloyd (GL) | Yes |
| Marine approval: American Bureau of Shipping (ABS) | Yes |
| Marine approval: Bureau Veritas (BV) | Yes |
| Marine approval: Det Norske Veritas (DNV) | Yes |
| Marine approval: Lloyds Register of Shipping (LRS) | Yes |
| Marine approval: Nippon Kaiji Kyokai (Class NK) | Yes |
| Marine approval: Polski Rejestr Statkow (PRS) | No |
| Marine approval: Chinese Classification Society (CCS) | No |
Ambient conditions 6
| Suited for indoor use | Yes |
|---|---|
| Suited for outdoor use | No |
| Ambient temperature during operation Operation (vertical installation): For vertical installation, min. | 0 °C |
| Ambient temperature during storage/transportation: min. | -20 °C |
| Ambient temperature during storage/transportation: max. | 60 °C |
| Relative humidity: Operation, max. | 90 %; no condensation |
Operating systems 2
| proprietary | Yes |
|---|---|
| pre-installed operating system: Windows CE | No |
Configuration 14
| Message indicator | Yes |
|---|---|
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration software: STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| Configuration software: STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| Configuration software: WinCC flexible Compact | No |
| Configuration software: WinCC flexible Standard | No |
| Configuration software: WinCC flexible Advanced | No |
| Configuration software: WinCC Basic (TIA Portal) | Yes |
| Configuration software: WinCC Comfort (TIA Portal) | Yes |
| Configuration software: WinCC Advanced (TIA Portal) | Yes |
| Configuration software: WinCC Professional (TIA Portal) | Yes |
Languages 2
| Online languages: Number of online/runtime languages | 10 |
|---|---|
| Project languages: Languages per project | 32 |
Functionality under WinCC (TIA Portal) 115
| Libraries | Yes |
|---|---|
| Applications/options: Web browser | No |
| Applications/options: SIMATIC WinCC Sm@rtServer | No |
| Number of Visual Basic Scripts | No |
| Task planner | Yes |
| time-controlled | No |
| task-controlled | Yes |
| Help system | Yes |
| Number of characters per info text | 500 |
| Message system: Number of alarm classes | 32 |
| Bit messages: Number of bit messages | 1 000 |
| Analog messages: Number of analog messages | 25 |
| Analog messages: S7 alarm number procedure | No |
| Analog messages: System messages HMI | Yes |
| Analog messages: System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| Analog messages: Number of characters per message | 80 |
| Analog messages: Number of process values per message | 8 |
| Analog messages: Acknowledgment groups | Yes |
| Analog messages: Message indicator | Yes |
| Message buffer: Number of entries | 256 |
| Message buffer: Circulating buffer | Yes |
| Message buffer: retentive | Yes |
| Message buffer: maintenance-free | Yes |
| Recipe management: Number of recipes | 50 |
| Recipe management: Data records per recipe | 100 |
| Recipe management: Entries per data record | 100 |
| Recipe management: Size of internal recipe memory | 256 kbyte |
| Recipe management: Recipe memory expandable | No |
| Variables: Number of variables per device | 800 |
| Variables: Number of variables per screen | 100 |
| Variables: Limit values | Yes |
| Variables: Multiplexing | Yes |
| Variables: Structures | No |
| Variables: Arrays | Yes |
| Images: Number of configurable images | 250 |
| Images: Permanent window/default | Yes |
| Images: Global image | Yes |
| Images: Pop-up images | No |
| Images: Slide-in images | No |
| Images: Image selection by PLC | Yes |
| Images: Image number in the PLC | Yes |
| Image objects: Number of objects per image | 100 |
| Image objects: Text fields | Yes |
| Image objects: I/O fields | Yes |
| Image objects: Graphic I/O fields (graphics list) | Yes |
| Image objects: Symbolic I/O fields (text list) | Yes |
| Image objects: Date/time fields | Yes |
| Image objects: Switches | Yes |
| Image objects: Buttons | Yes |
| Image objects: Graphic display | Yes |
| Image objects: Icons | Yes |
| Image objects: Geometric objects | Yes |
| Complex image objects: Number of complex objects per screen | 10 |
| Complex image objects: Alarm view | Yes |
| Complex image objects: Trend view | Yes |
| Complex image objects: User view | Yes |
| Complex image objects: Status/control | No |
| Complex image objects: Sm@rtClient view | No |
| Complex image objects: Recipe view | Yes |
| Complex image objects: f(x) trend view | No |
| Complex image objects: System diagnostics view | Yes; System message buffer of the SIMATIC S7-1200 and S7-1500 |
| Complex image objects: Media Player | No |
| Complex image objects: HTML browser | No |
| Complex image objects: PDF display | No |
| Complex image objects: IP camera display | No |
| Complex image objects: Bar graphs | Yes |
| Complex image objects: Sliders | No |
| Complex image objects: Pointer instruments | No |
| Complex image objects: Analog/digital clock | No |
| Lists: Number of text lists per project | 300 |
| Lists: Number of entries per text list | 100 |
| Lists: Number of graphics lists per project | 100 |
| Lists: Number of entries per graphics list | 100 |
| Archiving: Number of archives per device | 2; One message and one process value archive |
| Archiving: Number of entries per archive | 10 000 |
| Archiving: Message archive | Yes |
| Archiving: Process value archive | Yes |
| Archiving methods: Sequential archive | Yes |
| Archiving methods: Short-term archive | Yes |
| Memory location: Memory card | No |
| Memory location: USB memory | Yes |
| Memory location: Ethernet | No |
| Data storage format: CSV | No |
| Data storage format: TXT | Yes |
| Data storage format: RDB | No |
| Security: Number of user groups | 50 |
| Security: Number of user rights | 32 |
| Security: Number of users | 50 |
| Security: Password export/import | Yes |
| Security: SIMATIC Logon | No |
| Keyboard fonts: US English | Yes |
| Transfer (upload/download): MPI/PROFIBUS DP | Yes |
| Transfer (upload/download): USB | No |
| Transfer (upload/download): Ethernet | No |
| Transfer (upload/download): using external storage medium | Yes |
| Process coupling: S7-1200 | Yes |
| Process coupling: S7-1500 | Yes |
| Process coupling: S7-200 | Yes |
| Process coupling: S7-300/400 | Yes |
| Process coupling: LOGO! | Yes |
| Process coupling: WinAC | Yes |
| Process coupling: SINUMERIK | Yes; No access to NCK data |
| Process coupling: SIMOTION | Yes |
| Process coupling: Allen Bradley (EtherNet/IP) | No |
| Process coupling: Allen Bradley (DF1) | Yes |
| Process coupling: Mitsubishi (MC TCP/IP) | No |
| Process coupling: Mitsubishi (FX) | Yes |
| Process coupling: OMRON (FINS TCP) | No |
| Process coupling: OMRON (Host Link) | Yes |
| Process coupling: Modicon (Modbus TCP/IP) | No |
| Process coupling: Modicon (Modbus RTU) | Yes |
| Service tools/configuration aids: Backup/Restore manually | Yes |
| Service tools/configuration aids: Backup/Restore automatically | No |
| Service tools/configuration aids: Simulation | Yes |
| Service tools/configuration aids: Device switchover | Yes |
Peripherals/Options 7
| Printer | No |
|---|---|
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes |
| SIMATIC HMI USB stick | Yes |
Mechanics/material 3
| Enclosure material (front): Plastic | Yes |
|---|---|
| Enclosure material (front): Aluminum | No |
| Enclosure material (front): Stainless steel | No |
Version Classification 4
| eClass | 16 27-33-02-01 |
|---|---|
| ETIM | 10 EC001412 |
| IDEA | 4 6607 |
| UNSPSC | 15 43-21-15-06 |
Logistics 6
| Net weight | 0.988 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 1.488 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6AV2123-2GA03-0AX0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- cULus
- RCM (formerly C-TICK)
- KC approval
- Germanischer Lloyd (GL)
- American Bureau of Shipping (ABS)
- Bureau Veritas (BV)
- Det Norske Veritas (DNV)
- Lloyds Register of Shipping (LRS)
- Nippon Kaiji Kyokai (Class NK)
Quick answers
Questions about the KTP700 Basic color DP
What is the rated current of KTP700 Basic color DP?
The rated current of KTP700 Basic color DP is 0.23 A.
Which supply voltage is KTP700 Basic color DP rated for?
The rated operational voltage of KTP700 Basic color DP is 24 V AC.
What is the HS code of KTP700 Basic color DP for customs?
The tariff (HS) code on file for KTP700 Basic color DP is 85371091.
What is the EAN of KTP700 Basic color DP?
The EAN (GTIN) of KTP700 Basic color DP is 4034106029227.
Where does KTP700 Basic color DP ship from, and how fast?
KTP700 Basic color DP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Guides
Guides for HMI operator panels
A Comparison of Leading Industrial Brands: ABB, Siemens and Schneider
Compare ABB, Siemens, and Schneider Electric across motor control, energy efficiency, installation, support, and power distribution. Shop at Stoklink.
Contactors: Essential Components For Motor Control And Automation
Contactors deliver safe, reliable motor control and automation switching for industrial systems, lighting, pumps, and heating loads. Shop at Stoklink.
Reviews
Customer reviews
Series
Siemens SIMATIC HMI KTP700
- Brand
- Siemens
- Series
- SIMATIC HMI KTP700
