| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 100 | 3VA1110-4EF46-0AA0 | Low stock | $264.18 | |
| 125 | 3VA1112-4EF46-0AA0 | In stock | $423.63 | |
| 160 | 3VA1116-4EF46-0AA0This part | In stock | $482.25 | |
| 200 | 3VA1220-4EF42-0AA0 | In stock | $589.46 | |
| 250 | 3VA1225-4EF42-0AA0 | In stock | $680.44 |

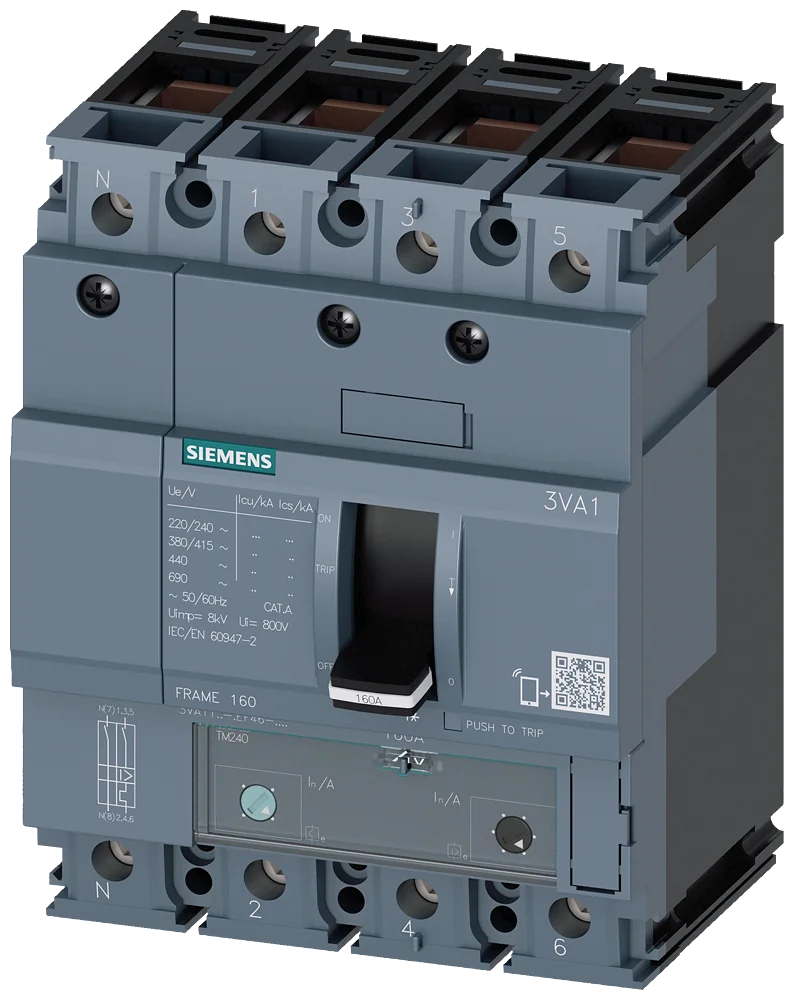

The Siemens 3VA1116-4EF46-0AA0 is a four-pole molded case circuit breaker (MCCB) from the SENTRON 3VA1 series, rated 160 A with a breaking capacity of 36 kA (Icu) at 415 V AC (utilisation class S). It is equipped with the TM240 LI thermal-magnetic trip unit providing overload (L) and instantaneous short-circuit (I) protection. Rated for distribution and motor-feeder protection in low-voltage switchgear up to 690 V AC.
At 160 A rated current and 36 kA breaking capacity, the 3VA1116-4EF46-0AA0 is dimensioned for feeder, sub-distribution and motor-circuit protection in low-voltage main and sub-distribution boards. The TM240 LI trip unit offers adjustable overload and short-circuit settings for selectivity coordination with upstream and downstream devices.
The IEC Frame 160 enclosure supports fixed mounting in form-separated switchgear (form 2–4) and accepts a range of Siemens 3VA accessories — auxiliary and alarm switches, shunt and undervoltage releases, rotary and motor operators — for adaptation to the specific installation and control scheme.
| product brand name | SENTRON |
|---|---|
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| design of the overcurrent release | TM240 |
| protection function of the overcurrent release | LI |
| number of poles | 4 |
| insulation voltage / rated value | 800 V |
|---|---|
| operating voltage / at DC / rated value | 600 V |
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 38 W |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable | No |
| ground-fault monitoring version | Without |
|---|---|
| product function: communication function | No |
| product function: other measurement function | No |
| Part number | 3VA1116-4EF46-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948821138 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| operational current: at 40 °C | 160 A |
|---|---|
| operational current: at 45 °C | 160 A |
| operational current: at 50 °C | 160 A |
| operational current: at 55 °C | 158 A |
| operational current: at 60 °C | 155 A |
| operational current: at 65 °C | 153 A |
| operational current: at 70 °C | 150 A |
| switching capacity class of the circuit breaker | S |
|---|---|
| maximum short-circuit current breaking capacity (Icu): at 240 V | 55 kA |
| maximum short-circuit current breaking capacity (Icu): at 415 V | 36 kA |
| maximum short-circuit current breaking capacity (Icu): at 440 V | 25 kA |
| maximum short-circuit current breaking capacity (Icu): at 500 V | 7 kA |
| maximum short-circuit current breaking capacity (Icu): at 690 V | 7 kA |
| operating short-circuit current breaking capacity (Ics): at 240 V | 55 kA |
| operating short-circuit current breaking capacity (Ics): at 415 V | 36 kA |
| operating short-circuit current breaking capacity (Ics): at 440 V | 25 kA |
| operating short-circuit current breaking capacity (Ics): at 500 V | 5 kA |
| operating short-circuit current breaking capacity (Ics): at 690 V | 5 kA |
| short-circuit current making capacity (Icm): at 240 V | 121 kA |
| short-circuit current making capacity (Icm): at 415 V | 75.6 kA |
| short-circuit current making capacity (Icm): at 440 V | 52.5 kA |
| short-circuit current making capacity (Icm): at 500 V | 11.9 kA |
| short-circuit current making capacity (Icm): at 690 V | 11.9 kA |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
| product feature / for L-tripping / can be switched on/off adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic | No |
|---|---|
| minimum | 112 A |
| maximum | 160 A |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic: minimum | 1 s |
| adjustable response value setting current (Ii) / for I-tripping: minimum | 800 A |
| adjustable setting current (InN) / for N-tripping: minimum | 0 A |
| adjustable setting current (InN) / for N-tripping: maximum | 0 A |
| design of the N-conductor protection | without |
| product function / grounding protection | No |
| product component: undervoltage release | No |
|---|---|
| product component: voltage trigger | No |
| product component: trip indicator | No |
| height [in] | 5.12 in |
| height | 130 mm |
| width [in] | 4 in |
| type of connectable conductor cross-sections / of the round conductor terminal / stranded | 1 x (1,5 - 70 mm2) |
| width | 101.6 mm |
| depth [in] | 2.76 in |
| depth | 70 mm |
| arrangement of electrical connectors / for main current circuit | Front terminal |
|---|---|
| type of electrical connection / for main current circuit | box terminal on both sides |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | Silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | Tin |
| number of CO contacts / for auxiliary contacts | 0 |
|---|
| product extension / optional / motor drive | Yes |
|---|
| protection class IP / on the front | IP40 |
|---|---|
| ambient temperature: during operation / minimum | -25 °C |
| ambient temperature: during operation / maximum | 70 °C |
| ambient temperature: during storage / minimum | -40 °C |
| ambient temperature: during storage / maximum | 80 °C |
| Environmental Product Declaration(EPD) | Yes |
|---|---|
| global warming potential [CO2 eq] / total | 190 kg |
| global warming potential [CO2 eq] / during manufacturing | 4.67 kg |
| global warming potential [CO2 eq] / during operation | 186 kg |
| global warming potential [CO2 eq] / after end of life | -0.826 kg |
| reference code / according to IEC 81346-2 | Q |
| Miscellaneous CCS (China Classifica- | tion Society) |
|---|
| Net weight | 1.333 kg |
|---|---|
| Package dimensions | 150 × 119 × 116 mm |
| Country of origin | CZ |
| Shipping weight | 1.833 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 16 A | 3VA1196-4EF46-0AA0 | 3VA1 | On request | — | $270.94 | Quote | |
| 20 A | 3VA1120-4EF46-0AA0 | 3VA1 | On request | — | $270.94 | Quote | |
| 25 A | 3VA1125-4EF46-0AA0 | 3VA1 | On request | — | $270.94 | Quote | |
| 32 A | 3VA1132-4EF46-0AA0 | 3VA1 | Critical stock | $270.94 | |||
| 40 A | 3VA1140-4EF46-0AA0 | 3VA1 | On request | — | $270.94 | Quote | |
| 50 A | 3VA1150-4EF46-0AA0 | 3VA1 | On request | — | $270.94 | Quote | |
| 63 A | 3VA1163-4EF46-0AA0 | 3VA1 | In stock | $221.67 | |||
| 80 A | 3VA1180-4EF46-0AA0 | 3VA1 | Low stock | $294.50 | |||
| 100 A | 3VA1110-4EF46-0AA0 | 3VA1 | Low stock | $264.18 | |||
| 125 A | 3VA1112-4EF46-0AA0 | 3VA1 | In stock | $423.63 | |||
| 160 A | 3VA1116-4EF46-0AA0 This part | 3VA1 | In stock | $482.25 | |||
| 200 A | 3VA1220-4EF42-0AA0 | 3VA1 | In stock | $589.46 | |||
| 250 A | 3VA1225-4EF42-0AA0 | 3VA1 | In stock | $680.44 | |||
| 320 A | 3VA1332-4EF42-0AA0 | 3VA1 | Low stock | $976.04 | |||
| 400 A | 3VA1340-4EF42-0AA0 | 3VA1 | In stock | $1,153.45 | |||
| 500 A | 3VA1450-4EF42-0AA0 | 3VA1 | In stock | $1,335.09 | |||
| 630 A | 3VA1463-4EF42-0AA0 | 3VA1 | In stock | $1,673.04 |
The rated current of 3VA1116-4EF46-0AA0 is 160 A.
The rated operational voltage of 3VA1116-4EF46-0AA0 is 690 V AC.
The EAN (GTIN) of 3VA1116-4EF46-0AA0 is 4042948821138.
3VA1116-4EF46-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
