Part number
3VA1112-5EF46-0AA0
$541.75 On request Dispatch — · From TürkiyeGet a Quote

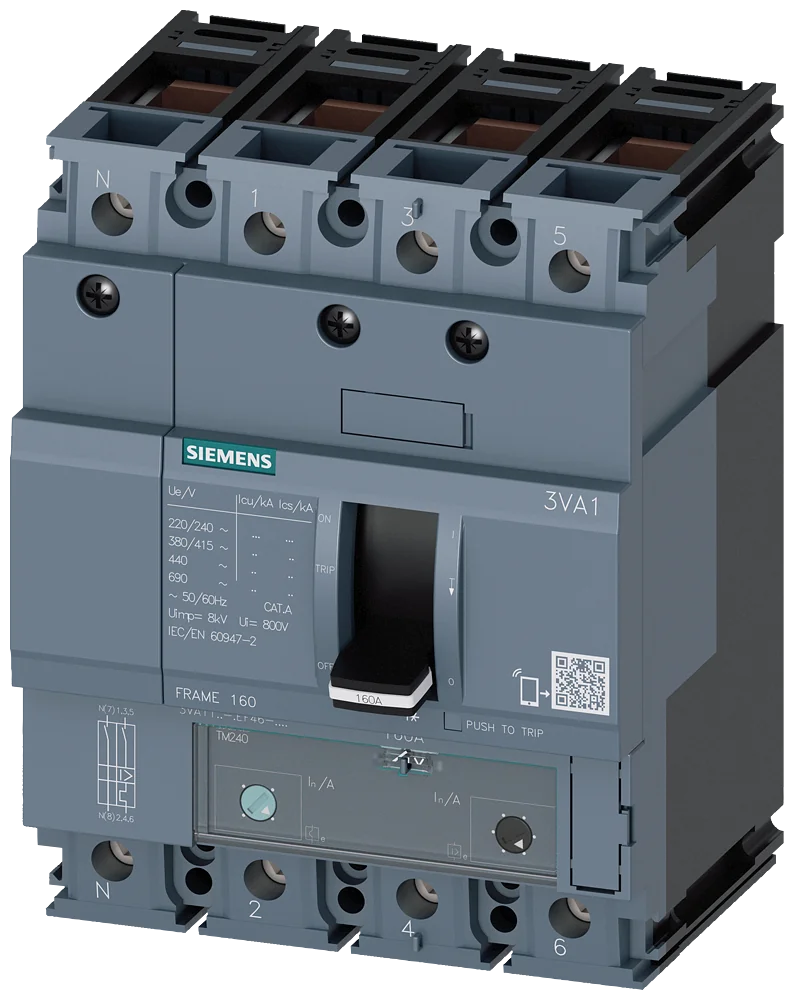

Siemens 3VA1112-5EF46-0AA0 3VA1 4P 125A 55kA 415V TM240 LI Molded Case Circuit Breaker

Rated current
125 A
Rated operational voltage
690 V AC
Poles
4P
Breaking capacity
55 @415 (Icu, class M) kA
EAN
4042948821107
Other ratings in Siemens 3VA All 19 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
80 3VA1180-5EF46-0AA0 Critical stock $324.83
100 3VA1110-5EF46-0AA0 On request $378.82
125 3VA1112-5EF46-0AA0This part On request $541.75
160 3VA1116-5EF46-0AA0 Low stock $504.14
200 3VA1220-5EF42-0AA0 Critical stock $754.17
Description

About the 3VA1112-5EF46-0AA0

The Siemens 3VA1112-5EF46-0AA0 is a four-pole molded case circuit breaker (MCCB) from the SENTRON 3VA1 series, rated 125 A with a breaking capacity of 55 kA (Icu) at 415 V AC (utilisation class M). It is equipped with the TM240 LI thermal-magnetic trip unit providing overload (L) and instantaneous short-circuit (I) protection. Rated for distribution and motor-feeder protection in low-voltage switchgear up to 690 V AC.

Certifications & Standards

  • IEC 60947-2

Applications & Use Cases

At 125 A rated current and 55 kA breaking capacity, the 3VA1112-5EF46-0AA0 is dimensioned for feeder, sub-distribution and motor-circuit protection in low-voltage main and sub-distribution boards. The TM240 LI trip unit offers adjustable overload and short-circuit settings for selectivity coordination with upstream and downstream devices.

The IEC Frame 160 enclosure supports fixed mounting in form-separated switchgear (form 2–4) and accepts a range of Siemens 3VA accessories — auxiliary and alarm switches, shunt and undervoltage releases, rotary and motor operators — for adaptation to the specific installation and control scheme.

Specification

Full specification

94 values · Last verified 30 Oct 2026

Model 6

product brand name SENTRON
product designation Molded case circuit breaker
design of the product Line protection
design of the overcurrent release TM240
protection function of the overcurrent release LI
number of poles 4

General technical data 8

insulation voltage / rated value 800 V
operating voltage / at DC / rated value 600 V
operating voltage / at AC / rated value 690 V
power loss [W] / maximum 28.1 W
mechanical service life (operating cycles) / typical 20 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V 9 000
electrical endurance (operating cycles) / at AC-1 / at 690 V 6 300
product feature / for neutral conductors / upgradable/retrofittable No

/ short-circuit and overload proof 3

ground-fault monitoring version Without
product function: communication function No
product function: other measurement function No
Show all 94 specifications ↓ Show less ↑77 more values in Identification, Current, Switching capacity according to IEC 60947, Adjustable parameters, Mechanical Design, Connections, Auxiliary circuit, Accessories, Environmental conditions, Environmental footprint, General Product Approval EMV Test Certificates, Logistics.

Identification 9

Part number 3VA1112-5EF46-0AA0
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4042948821107
ETIM class EC000228
eCl@ss 27370409

Current 7

operational current: at 40 °C 125 A
operational current: at 45 °C 125 A
operational current: at 50 °C 125 A
operational current: at 55 °C 122 A
operational current: at 60 °C 120 A
operational current: at 65 °C 117 A
operational current: at 70 °C 114 A

Switching capacity according to IEC 60947 17

switching capacity class of the circuit breaker M
maximum short-circuit current breaking capacity (Icu): at 240 V 85 kA
maximum short-circuit current breaking capacity (Icu): at 415 V 55 kA
maximum short-circuit current breaking capacity (Icu): at 440 V 36 kA
maximum short-circuit current breaking capacity (Icu): at 500 V 10 kA
maximum short-circuit current breaking capacity (Icu): at 690 V 10 kA
operating short-circuit current breaking capacity (Ics): at 240 V 85 kA
operating short-circuit current breaking capacity (Ics): at 415 V 55 kA
operating short-circuit current breaking capacity (Ics): at 440 V 36 kA
operating short-circuit current breaking capacity (Ics): at 500 V 5 kA
operating short-circuit current breaking capacity (Ics): at 690 V 5 kA
short-circuit current making capacity (Icm): at 240 V 187 kA
short-circuit current making capacity (Icm): at 415 V 121 kA
short-circuit current making capacity (Icm): at 440 V 75.6 kA
short-circuit current making capacity (Icm): at 500 V 17 kA
short-circuit current making capacity (Icm): at 690 V 17 kA
design of short-circuit protection For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Adjustable parameters 9

product feature / for L-tripping / can be switched on/off adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic No
minimum 87 A
maximum 125 A
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic: minimum 1 s
adjustable response value setting current (Ii) / for I-tripping: minimum 625 A
adjustable setting current (InN) / for N-tripping: minimum 0 A
adjustable setting current (InN) / for N-tripping: maximum 0 A
design of the N-conductor protection without
product function / grounding protection No

Mechanical Design 10

product component: undervoltage release No
product component: voltage trigger No
product component: trip indicator No
height [in] 5.12 in
height 130 mm
width [in] 4 in
type of connectable conductor cross-sections / of the round conductor terminal / stranded 1 x (1,5 - 70 mm2)
width 101.6 mm
depth [in] 2.76 in
depth 70 mm

Connections 4

arrangement of electrical connectors / for main current circuit Front terminal
type of electrical connection / for main current circuit box terminal on both sides
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) Tin

Auxiliary circuit 1

number of CO contacts / for auxiliary contacts 0

Accessories 1

product extension / optional / motor drive Yes

Environmental conditions 5

protection class IP / on the front IP40
ambient temperature: during operation / minimum -25 °C
ambient temperature: during operation / maximum 70 °C
ambient temperature: during storage / minimum -40 °C
ambient temperature: during storage / maximum 80 °C

Environmental footprint 6

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] / total 190 kg
global warming potential [CO2 eq] / during manufacturing 4.67 kg
global warming potential [CO2 eq] / during operation 186 kg
global warming potential [CO2 eq] / after end of life -0.826 kg
reference code / according to IEC 81346-2 Q

General Product Approval EMV Test Certificates 1

Confirmation Miscellaneous Special Test Certific- ate

Logistics 7

Net weight 1.349 kg
Package dimensions 150 × 119 × 116 mm
Country of origin CZ
Shipping weight 1.849 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3VA1112-5EF46-0AA0

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 19 ratings in Siemens 3VA

Siemens Siemens 3VA series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
63 A 3VA1163-5EF46-0AA0 3VA1 On request — $306.36 Quote
80 A 3VA1180-5EF46-0AA0 3VA1 Critical stock $324.83
100 A 3VA1110-5EF46-0AA0 3VA1 On request — $378.82 Quote
125 A 3VA1112-5EF46-0AA0 This part 3VA1 On request — $541.75 Quote
160 A 3VA1116-5EF46-0AA0 3VA1 Low stock $504.14
200 A 3VA1220-5EF42-0AA0 3VA1 Critical stock $754.17
250 A 3VA1225-5EF42-0AA0 3VA1 Low stock $715.74
320 A 3VA1332-5EF42-0AA0 3VA1 On request — $1,315.81 Quote
Certifications

Certifications and standards

  • IEC 60947-2
Quick answers

Questions about the 3VA1112-5EF46-0AA0

What is the rated current of 3VA1112-5EF46-0AA0?

The rated current of 3VA1112-5EF46-0AA0 is 125 A.

Which supply voltage is 3VA1112-5EF46-0AA0 rated for?

The rated operational voltage of 3VA1112-5EF46-0AA0 is 690 V AC.

What is the EAN of 3VA1112-5EF46-0AA0?

The EAN (GTIN) of 3VA1112-5EF46-0AA0 is 4042948821107.

Where does 3VA1112-5EF46-0AA0 ship from, and how fast?

3VA1112-5EF46-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
