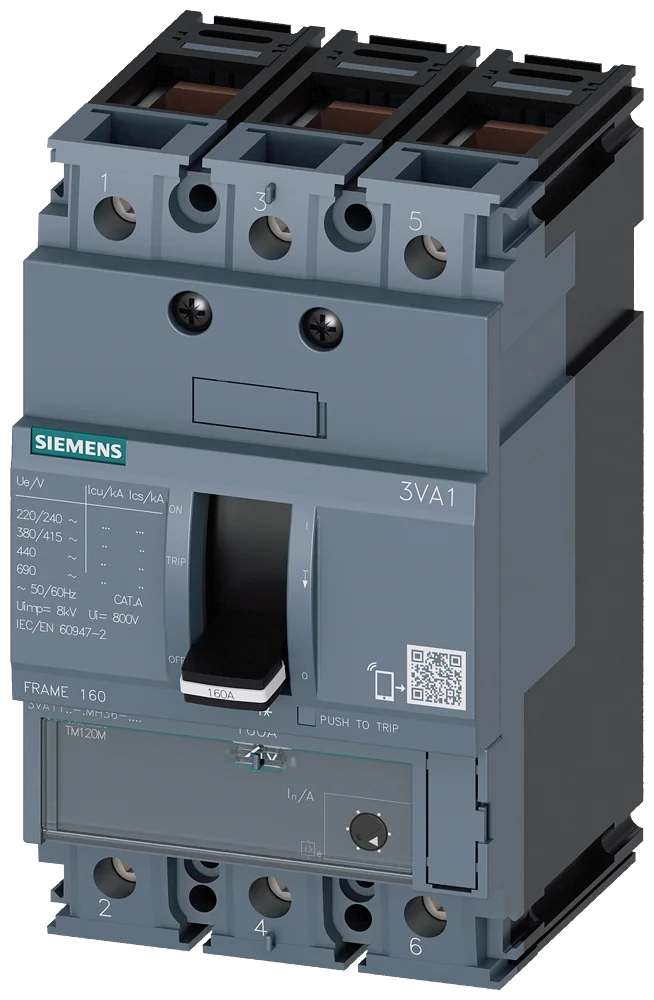

The Siemens 3VA1110-5MH36-0AA0 is a 3-pole molded case circuit breaker from the SENTRON 3VA1 series, rated 100 A with a breaking capacity of 55 kA at 415 V AC. It provides magnetic-only protection, making it suited for motor branch circuits and starter protection applications where thermal overload is handled separately downstream.
Magnetic-only protection in the 3VA1110-5MH36-0AA0 means the trip characteristic responds exclusively to instantaneous overcurrents — short circuits and severe fault currents — without a thermal element for sustained overload. This is the correct configuration when a separate motor overload relay or soft starter handles the thermal protection curve, keeping the MCCB focused on fault clearing at its 55 kA breaking capacity.
At 150 × 92 × 116 mm and 1.006 kg, the 3VA1 frame fits standard IEC switchboard busbar pitches without requiring extended depth. Three-pole configuration covers standard three-phase 415 V distribution and motor feeder circuits up to 100 A frame size.
| product brand name | SENTRON |
|---|---|
| product designation | Molded case circuit breaker |
| design of the product | Starter protection |
| design of the overcurrent release | TM120M |
| protection function of the overcurrent release | I |
| number of poles | 3 |
| insulation voltage / rated value | 800 V |
|---|---|
| operating voltage / at AC / rated value | 690 V |
| power loss [W] / maximum | 25 W |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable | No |
| ground-fault monitoring version | Without |
|---|---|
| product function: communication function | No |
| product function: other measurement function | No |
| Part number | 3VA1110-5MH36-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948828489 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| operational current: at 40 °C | 100 A |
|---|---|
| operational current: at 45 °C | 100 A |
| operational current: at 50 °C | 100 A |
| operational current: at 55 °C | 98 A |
| operational current: at 60 °C | 96 A |
| operational current: at 65 °C | 94 A |
| operational current: at 70 °C | 91 A |
| switching capacity class of the circuit breaker | M |
|---|---|
| maximum short-circuit current breaking capacity (Icu): at 240 V | 85 kA |
| maximum short-circuit current breaking capacity (Icu): at 415 V | 55 kA |
| maximum short-circuit current breaking capacity (Icu): at 440 V | 36 kA |
| maximum short-circuit current breaking capacity (Icu): at 500 V | 5 kA |
| maximum short-circuit current breaking capacity (Icu): at 690 V | 5 kA |
| operating short-circuit current breaking capacity (Ics): at 240 V | 85 kA |
| operating short-circuit current breaking capacity (Ics): at 415 V | 55 kA |
| operating short-circuit current breaking capacity (Ics): at 440 V | 36 kA |
| operating short-circuit current breaking capacity (Ics): at 500 V | 5 kA |
| operating short-circuit current breaking capacity (Ics): at 690 V | 5 kA |
| short-circuit current making capacity (Icm): at 240 V | 187 kA |
| short-circuit current making capacity (Icm): at 415 V | 121 kA |
| short-circuit current making capacity (Icm): at 440 V | 75.6 kA |
| short-circuit current making capacity (Icm): at 500 V | 7.5 kA |
| short-circuit current making capacity (Icm): at 690 V | 7.5 kA |
| design of short-circuit protection | For switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter |
| adjustable response value setting current (Ii) / for I-tripping: minimum | 700 A |
|---|---|
| adjustable setting current (InN) / for N-tripping: minimum | 100 A |
| adjustable setting current (InN) / for N-tripping: maximum | 100 A |
| product function / grounding protection | No |
| product component: undervoltage release | No |
|---|---|
| product component: voltage trigger | No |
| product component: trip indicator | No |
| height [in] | 5.12 in |
| height | 130 mm |
| width [in] | 3 in |
| type of connectable conductor cross-sections / of the round conductor terminal / stranded | 1 x (1,5 - 70 mm2) |
| width | 76.2 mm |
| depth [in] | 2.76 in |
| depth | 70 mm |
| arrangement of electrical connectors / for main current circuit | Front terminal |
|---|---|
| type of electrical connection / for main current circuit | box terminal on both sides |
| design of the surface / of the connections / on the top of the switch (N, 1, 3, 5) | Silver |
| design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6) | Tin |
| number of CO contacts / for auxiliary contacts | 0 |
|---|
| product extension / optional / motor drive | Yes |
|---|
| protection class IP / on the front | IP40 |
|---|---|
| ambient temperature: during operation / minimum | -25 °C |
| ambient temperature: during operation / maximum | 70 °C |
| ambient temperature: during storage / minimum | -40 °C |
| ambient temperature: during storage / maximum | 80 °C |
| Environmental Product Declaration(EPD) | Yes |
|---|---|
| global warming potential [CO2 eq] / total | 190 kg |
| global warming potential [CO2 eq] / during manufacturing | 4.67 kg |
| global warming potential [CO2 eq] / during operation | 186 kg |
| global warming potential [CO2 eq] / after end of life | -0.826 kg |
| reference code / according to IEC 81346-2 | Q |
| Confirmation Miscellaneous Special Test Certific- | ate |
|---|
| Net weight | 1.006 kg |
|---|---|
| Package dimensions | 150 × 92 × 116 mm |
| Country of origin | CZ |
| Shipping weight | 1.506 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 3VA1110-5MH36-0AA0 is 100 A.
The rated operational voltage of 3VA1110-5MH36-0AA0 is 415 V AC.
The EAN (GTIN) of 3VA1110-5MH36-0AA0 is 4042948828489.
3VA1110-5MH36-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
