- Part number
- 3SU1900-0FA10-0AA0
- Model no
- 3SU1
Description
About the 3SU1
About the 3SU1

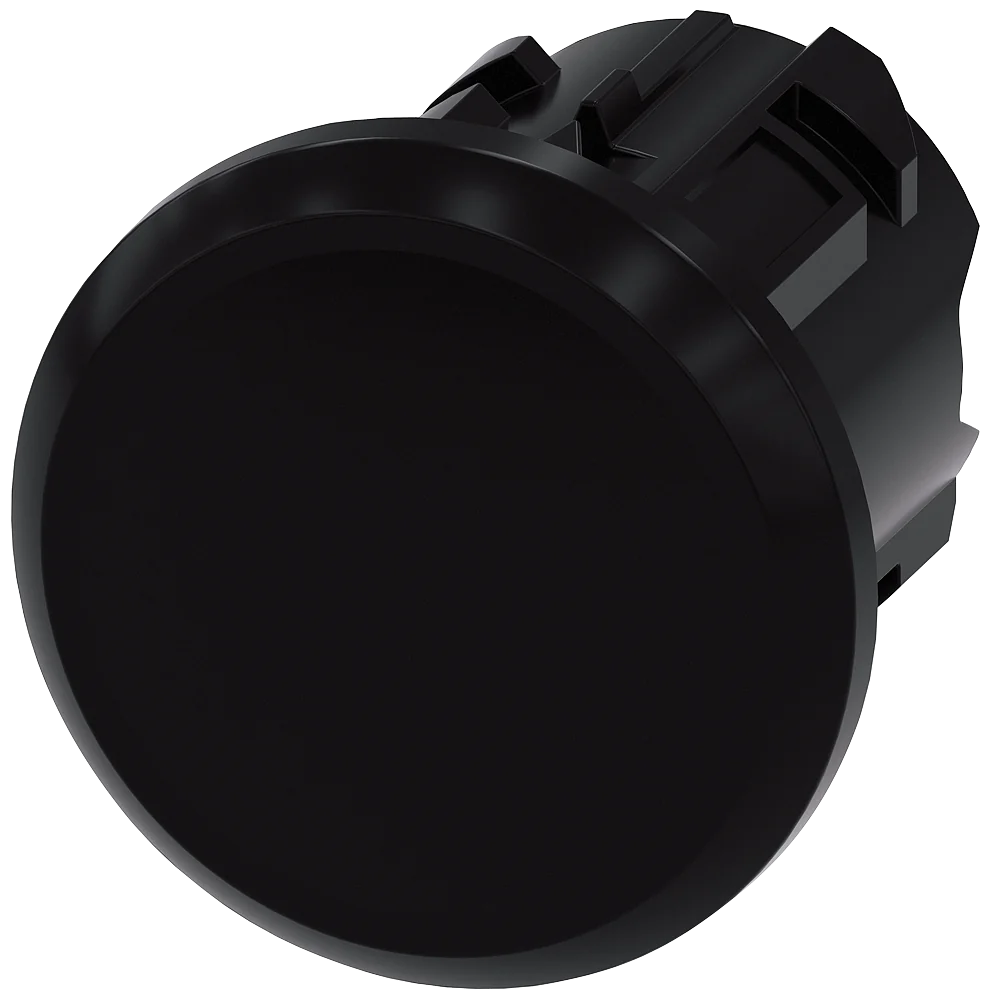

The Siemens 3SU1900-0FA10-0AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Sealing plug for unused round control points, 22 mm, plastic, black. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1900-0FA10-0AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 4
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Sealing plug |
| design of the product | flat |
| product type designation | 3SU1 |
Actuator 2
| shape of the actuating element | round |
|---|---|
| outer diameter of the actuating element | 29.5 mm |
General technical data 4
| protection class IP | IP66, IP67, IP69(IP69K) |
|---|---|
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
Show all 39 specifications ↓ Show less ↑29 more values in Identification, Ambient conditions, Installation/ mounting/ dimensions, Accessories, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1900-0FA10-0AA0 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209963801 |
| ETIM class | EC002024 |
| eCl@ss | 27371292 |
Ambient conditions 3
| ambient temperature: during operation | 70 ... -25 °C |
|---|---|
| ambient temperature: during storage and transport | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
Installation/ mounting/ dimensions 6
| shape of the installation opening | round |
|---|---|
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 6.5 mm |
| installation width | 29.5 mm |
| installation depth | 24.2 mm |
Accessories 2
| material of accessory | Plastic |
|---|---|
| color of accessory | black |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
|---|
Logistics 7
| Net weight | 0.01 kg |
|---|---|
| Package dimensions | 40 × 30 × 30 mm |
| Country of origin | CN |
| Shipping weight | 0.51 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1900-0FA10-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4011209963801.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
