MTABB 1SFA611410R1106 MT-110B Potentiometer Industrial Control Panel Rotary
Description
About the MT-110B
About the MT-110B

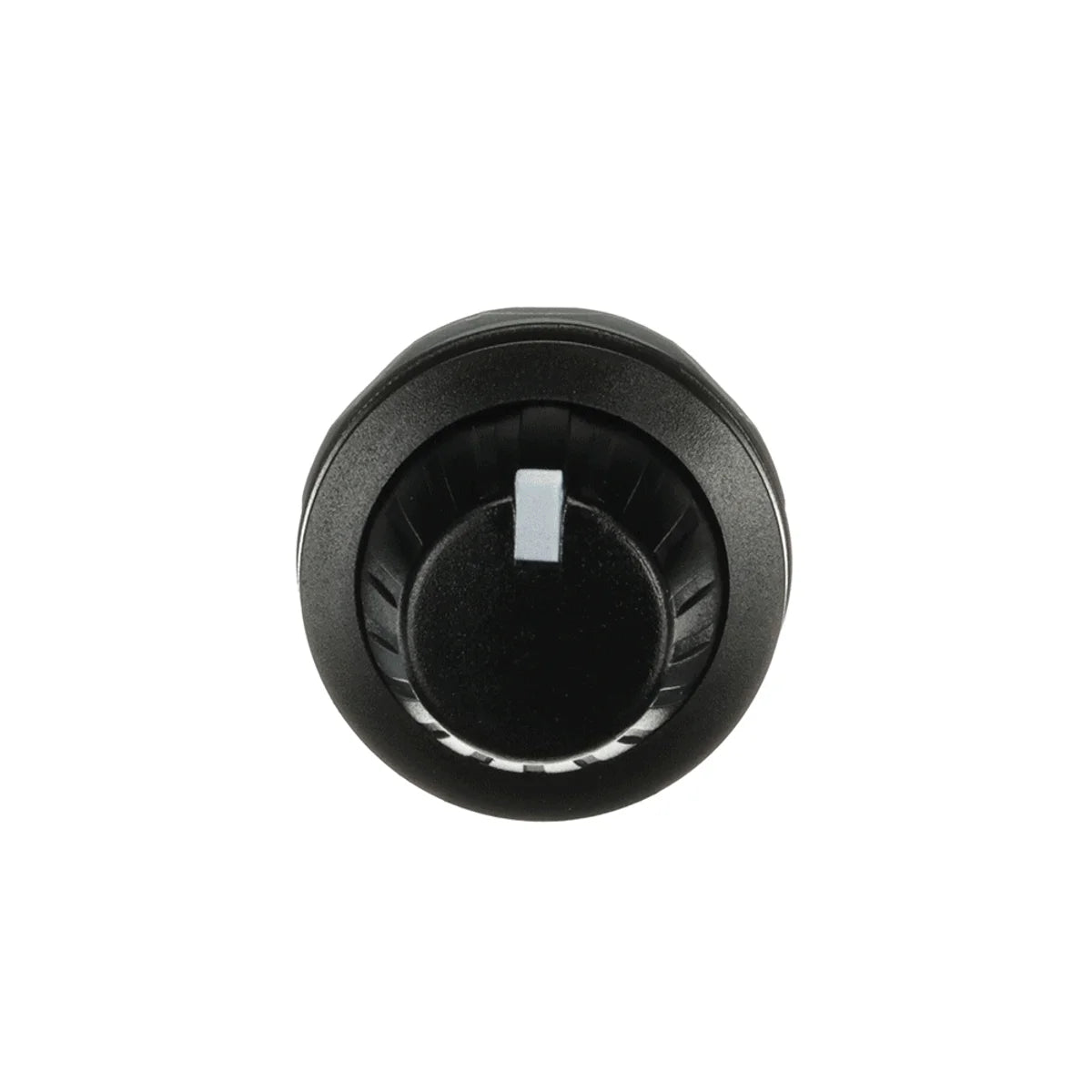

The ABB MT-110B Potentiometer (SKU: 1SFA611410R1106) is a precision rotary control device designed for industrial automation and control panel applications. Part of ABB's MT series, the MT-110B delivers reliable variable resistance control in demanding industrial environments. Weighing just 36 g, it is engineered for straightforward panel mounting and long-term operational stability.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements
- REACH: Compliant with EU REACH regulation on chemical substances (SVHC)
- RoHS: Restriction of Hazardous Substances — free from lead, mercury, cadmium, and other restricted materials
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
- cULus: Listed by Underwriters Laboratories for both US (UL) and Canadian (CSA) markets
- UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
Applications & Use Cases
The ABB MT-110B Potentiometer is widely used across industrial automation, machine building, and process control applications. Typical installations include:
- Speed and frequency reference adjustment on variable speed drives and soft starters
- Setpoint control in PLC and DCS control panels
- Motor speed regulation in conveyor, pump, and fan systems
- Operator interface panels requiring precise analogue input adjustment
- Lighting and heating control in industrial enclosures
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 57 mm |
| Product Net Weight | 0.036 kg |
Technical 9
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Resistor 10 kOhm |
| Sub-Function | Complete potentiometer |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Power Loss | Maximum 2 W |
| Connection Type | Screw Clamp |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 45 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611410R1106 |
|---|---|
| Type designation | MT-110B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500376157 |
| eCl@ss | 27371227 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001027 - Potentiometer for control circuit devices |
|---|---|
| ETIM 7 | EC001027 - Potentiometer for control circuit devices |
| eClass | V11.0 : 27371227 |
| UNSPSC | 41113633 |
| E-Number (Sweden) | 3716272 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.036 kg |
| Package Level 1 EAN | 7320500376157 |
| Shipping weight | 0.036 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611410R1106
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the MT-110B
What is the HS code of MT-110B for customs?
The tariff (HS) code on file for MT-110B is 85369001.
What is the EAN of MT-110B?
The EAN (GTIN) of MT-110B is 7320500376157.
Where does MT-110B ship from, and how fast?
MT-110B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
