Harmony XB5Schneider Electric ZB5AD4 Harmony XB5 Selector Switch Head Plastic Black 22 mm 2-Position Selector Switch
Harmony XB5 selector switch head, black, plastic, 2-position spring return, 22 mm.
Description
About the ZB5
About the ZB5

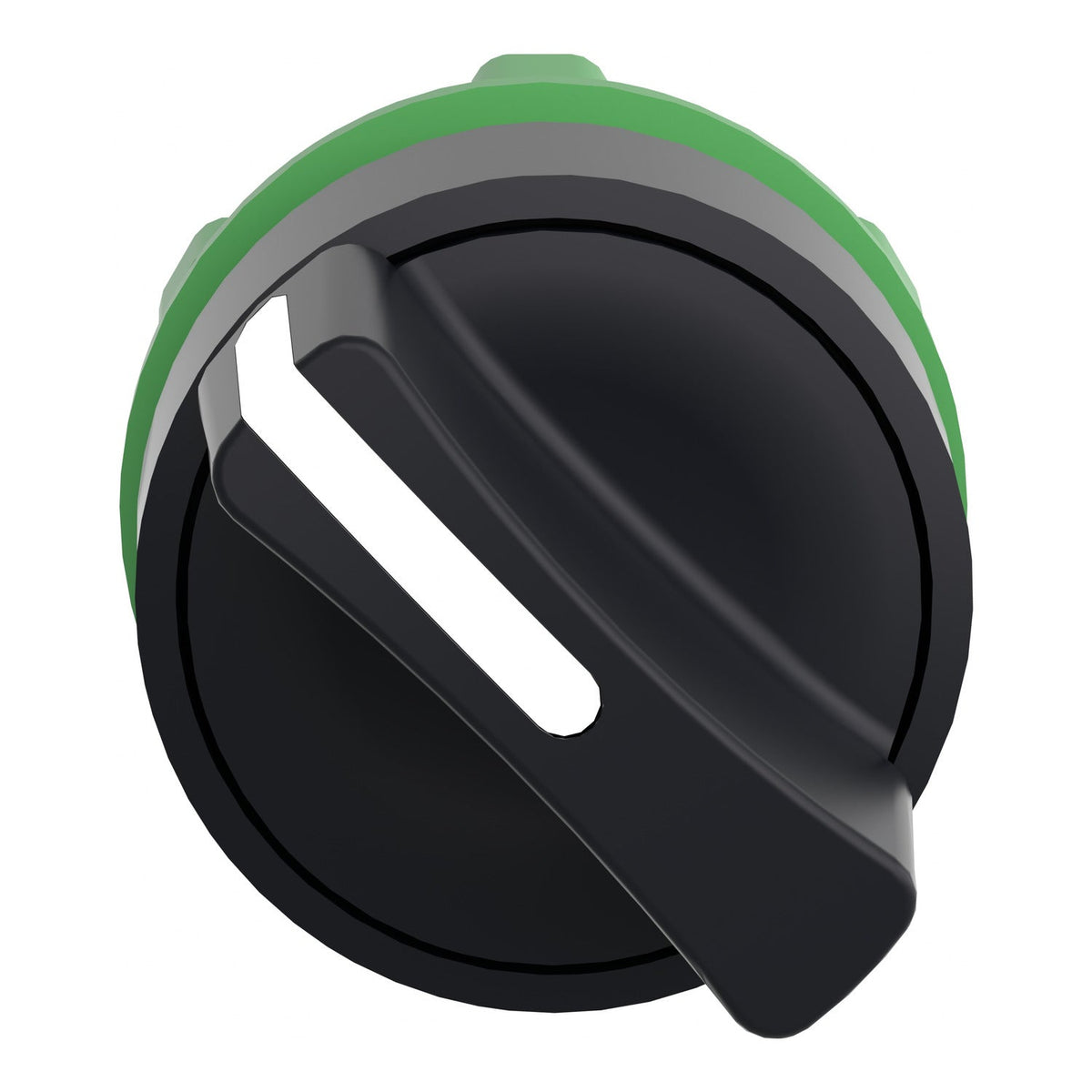

The Schneider Electric ZB5AD4 is a Harmony XB5 selector switch head molded in dark grey plastic with a black standard handle, covering 2 positions at 90 degrees with a spring return from right to left. It mounts in a standard 22 mm cutout and completes a selector switch once paired with a compatible XB5 contact body.
Certifications & Standards
- DNV
- CSA
- BV
- LROS
- UL Listed
- UL 508
- IEC 60947-1
- IEC 60947-5-4
- CSA C22.2 No 14
- IEC 60947-5-1
- JIS C8201-5-1
- JIS C8201-1
Selection Notes
The spring return from right to left means the handle snaps back to its left-hand position the moment it is released, so it suits a momentary selection - jog, test, or by-pass - rather than a held operating mode; for a mode selection that must stay put (auto/manual), the stay-put XB4 or XB5 selector heads are the better fit. The plastic bezel and IP69K rating favor panels needing chemical resistance or double insulation over the metal XB4 equivalent.
Specification
Full specification
Main 11
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Head for selector switch |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | Right to left spring return |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
Complementary 8
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.8 in (46 mm) |
| Net Weight | 0.04 lb(US) (0.02 kg) |
| Mechanical durability | 1000000 cycles |
| Station name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Electrical composition code | C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting |
| Device presentation | Basic element |
Environment 12
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP67 IEC 60529, IP69 IEC 60529, IP69K |
| Enclosure Type | UL type 4X/13 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508, IEC 60947-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1 |
| Product Certifications | DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 45 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB5AD4 |
|---|---|
| Type designation | ZB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110905120 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
