Part number
3SU1853-3NB00-1AD1
Model no
3SU1
$712.49 On request Dispatch — · From TürkiyeGet a Quote
3SU1

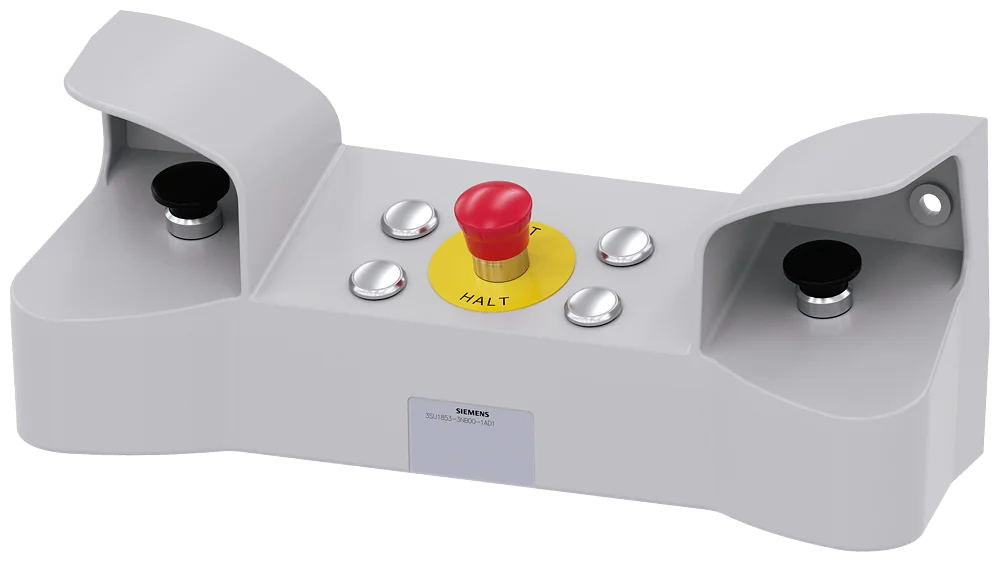

Siemens 3SU1853-3NB00-1AD1 3SU1 Pilot Device

product brand name
SIRIUS ACT
product designation
Two-hand operation console
product type designation
3SU1
manufacturer's article number: of supplied contact module
R2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400- 1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0
manufacturer's article number: of supplied contact module at the command point A 1
3SU1400-1AA10-1CA0
manufacturer's article number: of the supplied holder at the command point A
3SU1550-0AA10-0AA0
EAN
4011209953802
Description

About the 3SU1

The Siemens 3SU1853-3NB00-1AD1 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Two-hand operation console for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 3 command points metal, 4 additional holes for 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, screw terminal, 1x EMERGENCY STOP red, 40 mm, 2 NC, screw terminal, front mounting, 4x sealing plug metal, with cable cut-outs for metric cable glands. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1853-3NB00-1AD1 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

88 values · Last verified 30 Oct 2026

General 10

product brand name SIRIUS ACT
product designation Two-hand operation console
product type designation 3SU1
manufacturer's article number: of supplied contact module R2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400- 1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0
manufacturer's article number: of supplied contact module at the command point A 1 3SU1400-1AA10-1CA0
manufacturer's article number: of the supplied holder at the command point A 3SU1550-0AA10-0AA0
manufacturer's article number: of the supplied actuator at the command point A 3SU1050-1BD10-0AA0
manufacturer's article number: of supplied empty enclosure 3SU1853-3AA00-0AD1
manufacturer's article number: of supplied accessory 3SU1950-0FA80-0AA0
manufacturer's article number: of the supplied accessories at the command point B 3SU1900-0BB31-0AT0

Enclosure 7

design of the housing Two-hand operating console with standard components
material of the enclosure metal
number of command points 3
color of the enclosure top part grey
delivery state: as a kit No
delivery state: pre-wired on strip terminal No
fastening method of the enclosure Horizontal

Actuator 9

design of the actuating element A = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton
principle of operation of the actuating element A = momentary contact / B = latching / C = momentary contact
product feature: lockout No
product feature: staggered switching No
color of the actuating element A = black / B = red / C = black
material of the actuating element metal
shape of the actuating element round
number of contact modules 6
type of unlocking device A = none / B = rotate to unlock / C = none
Show all 88 specifications ↓ Show less ↑62 more values in Identification, Front ring, Holder, General technical data, Auxiliary circuit, Connections/ Terminals, Safety related data, ISO 13849, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Accessories, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1853-3NB00-1AD1
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209953802
ETIM class EC001260
eCl@ss 27371219

Front ring 3

product component front ring Yes
material of the front ring metal
color of the front ring silver

Holder 1

material of the holder Metal

General technical data 14

product function: positive opening Yes
product function: EMERGENCY OFF function Yes
product function: EMERGENCY STOP function Yes
product component stand/pedestal No
protection class IP IP66
degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-6 10 ... 500 Hz: 5 g
reference code according to IEC 81346-2 S
continuous current of the C characteristic MCB 10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A
continuous current of the DIAZED fuse link gG 10 A
Substance Prohibitance (day/month/year) 10/01/2014
SVHC substance name Lead CAS-No. 7439-92-1

Auxiliary circuit 3

design of the contact of auxiliary contacts Silver alloy
number of NC contacts for auxiliary contacts 4
number of NO contacts for auxiliary contacts 2

Connections/ Terminals 1

type of electrical connection on enclosure Cable routing at the rear 2 x M25

ISO 13849 1

device type according to ISO 13849-1 3

IEC 61508 2

safety device type according to IEC 61508-2 Type A
T1 value for proof test interval or service life according to IEC 61508 20 a

Ambient conditions 4

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no
60721 condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions 4

fastening method of modules and accessories Front plate mounting
height 185.6 mm
width 492.4 mm
depth 159.5 mm

Accessories 3

number of backing plates 1
marking of backing plate NOT-HALT
color of backing plate Yellow

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.625 kg

Logistics 7

Net weight 4.927 kg
Package dimensions 600 × 170 × 110 mm
Country of origin DE
Shipping weight 5.427 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1853-3NB00-1AD1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SU1

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209953802.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
