- Part number
- 3SU1853-3NB00-1AA1
- Model no
- 3SU1
Description
About the 3SU1
About the 3SU1

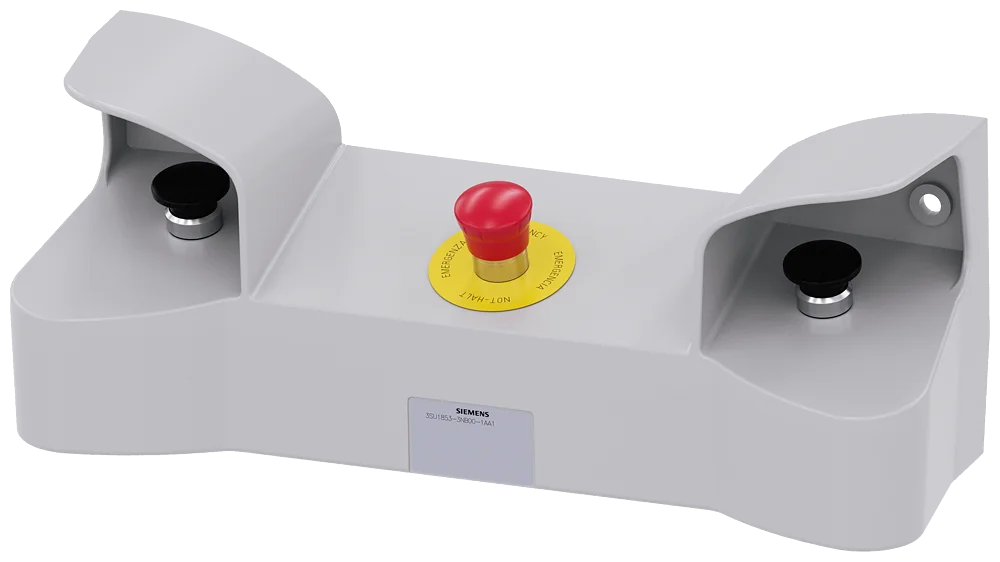

The Siemens 3SU1853-3NB00-1AA1 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Two-hand operation console for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 3 command points metal, standard equipment: 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, screw terminal, 1x EMERGENCY STOP red, 40 mm, 2 NC, screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1853-3NB00-1AA1 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 9
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Two-hand operation console |
| product type designation | 3SU1 |
| manufacturer's article number: of supplied contact module | R2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400- 1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0 |
| manufacturer's article number: of supplied contact module at the command point A 1 | 3SU1400-1AA10-1CA0 |
| manufacturer's article number: of the supplied holder at the command point A | 3SU1550-0AA10-0AA0 |
| manufacturer's article number: of the supplied actuator at the command point A | 3SU1050-1BD10-0AA0 |
| manufacturer's article number: of supplied empty enclosure | 3SU1853-3AA00-0AA1 |
| manufacturer's article number: of the supplied accessories at the command point B | 3SU1900-0BB31-0AT0 |
Enclosure 7
| design of the housing | Two-hand operating console with standard components |
|---|---|
| material of the enclosure | metal |
| number of command points | 3 |
| color of the enclosure top part | grey |
| delivery state: as a kit | No |
| delivery state: pre-wired on strip terminal | No |
| fastening method of the enclosure | Horizontal |
Actuator 9
| design of the actuating element | A = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton |
|---|---|
| principle of operation of the actuating element | A = momentary contact / B = latching / C = momentary contact |
| product feature: lockout | No |
| product feature: staggered switching | No |
| color of the actuating element | A = black / B = red / C = black |
| material of the actuating element | metal |
| shape of the actuating element | round |
| number of contact modules | 6 |
| type of unlocking device | A = none / B = rotate to unlock / C = none |
Show all 87 specifications ↓ Show less ↑62 more values in Identification, Front ring, Holder, General technical data, Auxiliary circuit, Connections/ Terminals, Safety related data, ISO 13849, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Accessories, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1853-3NB00-1AA1 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209953796 |
| ETIM class | EC001260 |
| eCl@ss | 27371219 |
Front ring 3
| product component front ring | Yes |
|---|---|
| material of the front ring | metal |
| color of the front ring | silver |
Holder 1
| material of the holder | Metal |
|---|
General technical data 14
| product function: positive opening | Yes |
|---|---|
| product function: EMERGENCY OFF function | Yes |
| product function: EMERGENCY STOP function | Yes |
| product component stand/pedestal | No |
| protection class IP | IP66 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
Auxiliary circuit 3
| design of the contact of auxiliary contacts | Silver alloy |
|---|---|
| number of NC contacts for auxiliary contacts | 4 |
| number of NO contacts for auxiliary contacts | 2 |
Connections/ Terminals 1
| type of electrical connection on enclosure | Cable routing at the rear 2 x M25 |
|---|
ISO 13849 1
| device type according to ISO 13849-1 | 3 |
|---|
IEC 61508 2
| safety device type according to IEC 61508-2 | Type A |
|---|---|
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no |
| 60721 | condensation in operation permitted for all devices behind front panel) |
Installation/ mounting/ dimensions 4
| fastening method of modules and accessories | Front plate mounting |
|---|---|
| height | 185.6 mm |
| width | 492.4 mm |
| depth | 159.5 mm |
Accessories 3
| number of backing plates | 1 |
|---|---|
| marking of backing plate | NOT-HALT |
| color of backing plate | Yellow |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.625 kg |
|---|
Logistics 7
| Net weight | 4.728 kg |
|---|---|
| Package dimensions | 517 × 180 × 232 mm |
| Country of origin | DE |
| Shipping weight | 5.228 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
