- Part number
- 3SU1802-0AB00-2AB1
- Model no
- 3SU1
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
3SU1Siemens 3SU1802-0AB00-2AB1 3SU1 5500V Pilot Device
Description
About the 3SU1
About the 3SU1

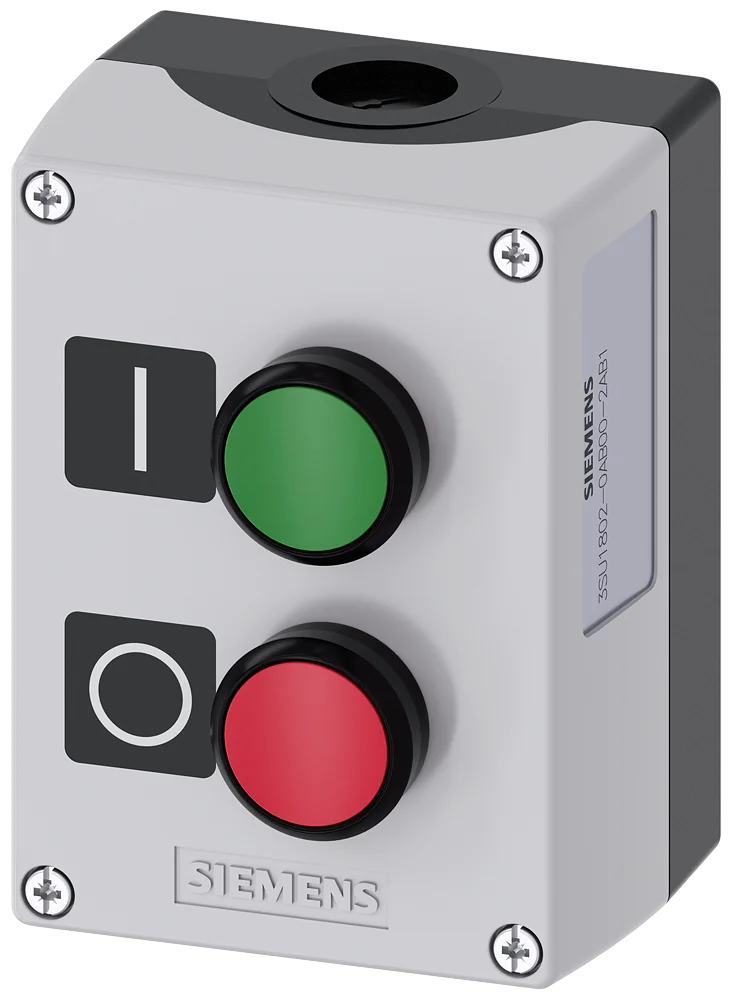

The Siemens 3SU1802-0AB00-2AB1 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 2 control points plastic, B=Pushbutton green, label: I, 1 NO, screw terminal, A=Pushbutton red, label: O, 1 NC, screw terminal, floor mounting, 1xM20 each on top and bottom, Labels enclosed. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1802-0AB00-2AB1 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 9
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Enclosures |
| product type designation | 3SU1 |
| equipment of commanding and signaling device | A = Pushbutton / B = Pushbutton |
| manufacturer's article number: of supplied contact module at the command point A 1 | 3SU1400-2AA10-1CA0 |
| manufacturer's article number: of the supplied holder at the command point A | 3SU1500-0AA10-0AA0 |
| manufacturer's article number: of the supplied actuator at the command point A | 3SU1000-0AB20-0AA0 |
| manufacturer's article number: of supplied empty enclosure | 3SU1802-0AA00-0AB1 |
| manufacturer's article number: of the supplied accessories at the command point A | 3SU1900-0AF16-0QA0 |
Enclosure 10
| design of the housing | with recess for label |
|---|---|
| shape of the enclosure front | rectangular |
| material of the enclosure | plastic |
| number of command points | 2 |
| product component: EMERGENCY STOP device | No |
| product component: protective collar | No |
| color of the enclosure top part | grey |
| delivery state: as a kit | No |
| delivery state: pre-wired on strip terminal | No |
| fastening method of the enclosure | Vertical |
Actuator 9
| design of the actuating element | Pushbutton / pushbutton |
|---|---|
| suitability for use EMERGENCY OFF switch | No |
| product feature lockout | No |
| product extension optional light source | No |
| color of the actuating element | A = red / B = green |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| number of contact modules | 2 |
| type of unlocking device | A = none / B = none |
Show all 91 specifications ↓ Show less ↑63 more values in Identification, Front ring, Holder, Display, General technical data, Communication/ Protocol, Auxiliary circuit, Connections/ Terminals, Ambient conditions, Installation/ mounting/ dimensions, Accessories, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1802-0AB00-2AB1 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209969346 |
| ETIM class | EC000225 |
| eCl@ss | 27371216 |
Front ring 4
| product component front ring | Yes |
|---|---|
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
Holder 1
| material of the holder | Plastic |
|---|
Display 1
| number of LED modules | 0 |
|---|
General technical data 17
| product function: positive opening | Yes |
|---|---|
| product function: EMERGENCY OFF function | No |
| product function: EMERGENCY STOP function | No |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12K, 13 |
| shock resistance: according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance: for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance: according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance: for railway applications according to EN 61373 | Category 1, Class B |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| at AC: at 50 Hz rated value | 5 ... 500 V |
| at AC: at 60 Hz rated value | 5 ... 500 V |
| at AC: at DC rated value | 5 ... 500 V |
Communication/ Protocol 1
| design of the interface for communication | without |
|---|
Auxiliary circuit 3
| design of the contact of auxiliary contacts | Silver alloy |
|---|---|
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
Connections/ Terminals 5
| type of electrical connection of modules and accessories | Screw-type terminal |
|---|---|
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M20 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no |
| 60721 | condensation in operation permitted for all devices behind front panel) |
Installation/ mounting/ dimensions 5
| fastening method of modules and accessories | Floor mounting |
|---|---|
| height | 114 mm |
| width | 85 mm |
| depth | 75 mm |
| shape of the installation opening | round |
Accessories 4
| number of labels | 2 |
|---|---|
| marking of the name plate for command devices | A=O/B=I |
| color of the label | A = black / B = black |
| number of inscription plates | 0 |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
|---|
Logistics 7
| Net weight | 0.342 kg |
|---|---|
| Package dimensions | 131 × 131 × 98 mm |
| Country of origin | DE |
| Shipping weight | 0.842 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1802-0AB00-2AB1
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
Which supply voltage is 3SU1 rated for?
The rated operational voltage of 3SU1 is 5500 V AC.
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4011209969346.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
