Part number
3SU1401-1BF60-1AA0
Model no
3SU1
$12.79 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SU1

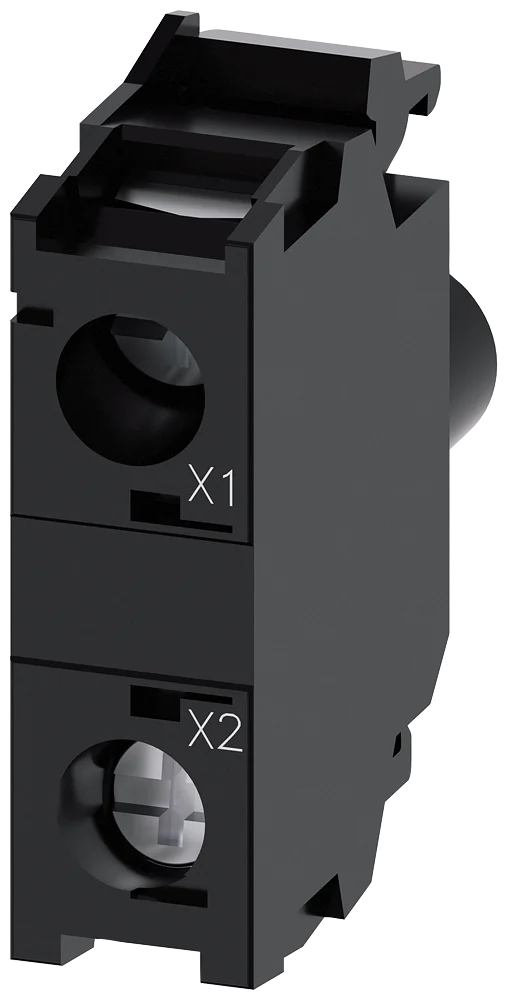

Siemens 3SU1401-1BF60-1AA0 3SU1 230V Pilot Device

Rated operational voltage
230 V AC
EAN
4011209943537
Description

About the 3SU1

The Siemens 3SU1401-1BF60-1AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. LED module with integrated LED 230 V AC, white, screw terminal, for front plate mounting. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1401-1BF60-1AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

71 values · Last verified 30 Oct 2026

General 3

product brand name SIRIUS ACT
product designation LED module
product type designation 3SU1

General technical data 24

product component: diode Yes
product component: lamp transformer No
product component: light source Yes
product component: series resistor No
insulation voltage rated value 320 V
degree of pollution 3
type of voltage of the operating voltage AC
for actuation AC
surge voltage resistance rated value 4 kV
consumed current maximum 20 mA
protection class IP: of the enclosure IP40
protection class IP: of the terminal IP20
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
shock resistance: for railway applications according to EN 61373 Category 1, Class B
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
vibration resistance: for railway applications according to EN 61373 Category 1, Class B
operating period typical 100 000 h
reference code according to IEC 81346-2 P
Substance Prohibitance (day/month/year) 10/01/2014
SVHC substance name 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5
at AC: at 50 Hz rated value 230 V
at AC: at 60 Hz rated value 230 V
relative positive tolerance of the operating voltage 20 %
relative negative tolerance of the operating voltage 20 %

Control circuit/ Control 1

inrush current maximum 3 A
Show all 71 specifications ↓ Show less ↑43 more values in Identification, Connections/ Terminals, Lamp, ATEX, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1401-1BF60-1AA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209943537
ETIM class EC000204
eCl@ss 27371209

Connections/ Terminals 7

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid with core end processing 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: solid without core end processing 2x (1.0 ... 1.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 2x (0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: for AWG cables 2x (18 ... 14)
connectable conductor cross-section finely stranded with core end processing 0.5 ... 1.5 mm2
tightening torque with screw-type terminals 0.8 ... 0.9 N·m

Lamp 3

type of light source LED
color of the light source white
light intensity 900 ... 1 400 mcd

ATEX 2

certificate of suitability: ATEX No
certificate of suitability: IECEx No

Ambient conditions 4

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no
60721 condensation in operation permitted)

Installation/ mounting/ dimensions 4

fastening method: of modules and accessories Front plate mounting
height 33.2 mm
width 9.8 mm
depth 29.4 mm

Environmental footprint 5

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] total 0.787 kg
global warming potential [CO2 eq] during manufacturing 0.566 kg
global warming potential [CO2 eq] during operation 0.235 kg
global warming potential [CO2 eq] after end of life -0.015 kg

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.566 kg

Logistics 7

Net weight 0.01 kg
Package dimensions 73 × 65 × 32 mm
Country of origin CZ
Shipping weight 0.51 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1401-1BF60-1AA0 1

Quick answers

Questions about the 3SU1

Which supply voltage is 3SU1 rated for?

The rated operational voltage of 3SU1 is 230 V AC.

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209943537.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
