Part number
3SU1400-2AA10-1CA0
Model no
3SU1
$12.33 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SU1

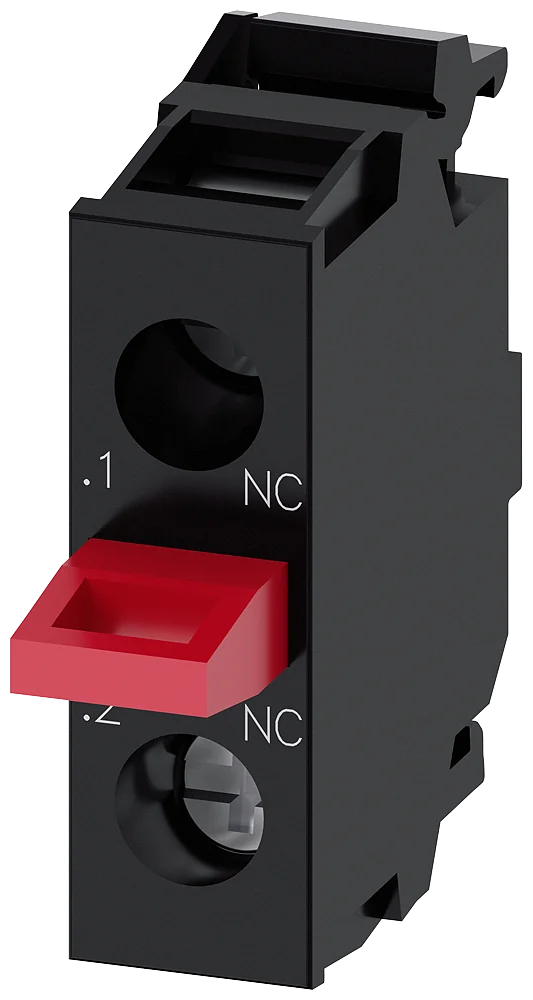

Siemens 3SU1400-2AA10-1CA0 3SU1 10A 5500V Pilot Device

Rated current
10 A
Rated operational voltage
5500 V AC
EAN
4011209950924
Description

About the 3SU1

The Siemens 3SU1400-2AA10-1CA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Contact module with 1 contact element, 1 NC, screw-type terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1400-2AA10-1CA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

95 values · Last verified 30 Oct 2026

General 3

product brand name SIRIUS ACT
product designation Contact module
product type designation 3SU1

Contact block/ lampholder 1

socket design other

General technical data 22

product function positive opening Yes
insulation voltage rated value 500 V
degree of pollution 3
type of voltage: of the operating voltage AC/DC
type of voltage: of the input voltage AC/DC
surge voltage resistance rated value 6 kV
protection class IP: of the enclosure IP40
protection class IP: of the terminal IP20
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
shock resistance: for railway applications according to EN 61373 Category 1, Class B
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
vibration resistance: for railway applications according to EN 61373 Category 1, Class B
operating frequency maximum 3 600 1/h
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) typical 10 000 000
thermal current 10 A
reference code according to IEC 81346-2 S
continuous current of the C characteristic MCB 10 A
Substance Prohibitance (day/month/year) 10/01/2014
at AC: at 50 Hz rated value 5 ... 500 V
at AC: at 60 Hz rated value 5 ... 500 V
at AC: at DC rated value 5 ... 500 V
Show all 95 specifications ↓ Show less ↑69 more values in Identification, Power Electronics, Auxiliary circuit, Connections/ Terminals, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1400-2AA10-1CA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209950924
ETIM class EC000041
eCl@ss 27371302

Power Electronics 1

contact reliability One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit 28

design of the contact of auxiliary contacts Silver alloy
number of NC contacts for auxiliary contacts 1
lagging switching 0
number of NO contacts for auxiliary contacts 0
leading contact 0
operational current at AC-12: at 24 V rated value 10 A
operational current at AC-12: at 48 V rated value 10 A
operational current at AC-12: at 110 V rated value 10 A
operational current at AC-12: at 230 V rated value 8 A
operational current at AC-12: at 400 V rated value 8 A
operational current at AC-15: at 24 V rated value 6 A
operational current at AC-15: at 48 V rated value 6 A
operational current at AC-15: at 110 V rated value 6 A
operational current at AC-15: at 230 V rated value 6 A
operational current at AC-15: at 400 V rated value 3 A
operational current at AC-15: at 500 V rated value 1.4 A
operational current at DC-12: at 24 V rated value 10 A
operational current at DC-12: at 48 V rated value 5 A
operational current at DC-12: at 110 V rated value 2.5 A
operational current at DC-12: at 230 V rated value 1 A
operational current at DC-12: at 400 V rated value 0.3 A
operational current at DC-12: at 500 V rated value 0.3 A
operational current at DC-13: at 24 V rated value 3 A
operational current at DC-13: at 48 V rated value 1.5 A
operational current at DC-13: at 110 V rated value 0.7 A
operational current at DC-13: at 230 V rated value 0.3 A
operational current at DC-13: at 400 V rated value 0.1 A
operational current at DC-13: at 500 V rated value 0.1 A

Connections/ Terminals 6

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid with core end processing 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: solid without core end processing 2x (1.0 ... 1.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 2x (0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: for AWG cables 2x (18 ... 14)
tightening torque with screw-type terminals 0.8 ... 0.9 N·m

Ambient conditions 4

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ...
60721 95%, no condensation in operation permitted)

Installation/ mounting/ dimensions 7

fastening method floor mounting
of modules and accessories Floor mounting
height 33.2 mm
width 9.8 mm
depth 27.7 mm
suitability for integration: plastic enclosure Yes
suitability for integration: metal enclosure Yes

Environmental footprint 5

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] total 0.787 kg
global warming potential [CO2 eq] during manufacturing 0.566 kg
global warming potential [CO2 eq] during operation 0.235 kg
global warming potential [CO2 eq] after end of life -0.015 kg

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.566 kg

Logistics 7

Net weight 0.008 kg
Package dimensions 107 × 78 × 17 mm
Country of origin DE
Shipping weight 0.508 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1400-2AA10-1CA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SU1

What is the rated current of 3SU1?

The rated current of 3SU1 is 10 A.

Which supply voltage is 3SU1 rated for?

The rated operational voltage of 3SU1 is 5500 V AC.

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209950924.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
