- Part number
- 3SU1400-1LK10-1AA1
- Model no
- 3SU1
Description
About the 3SU1
About the 3SU1

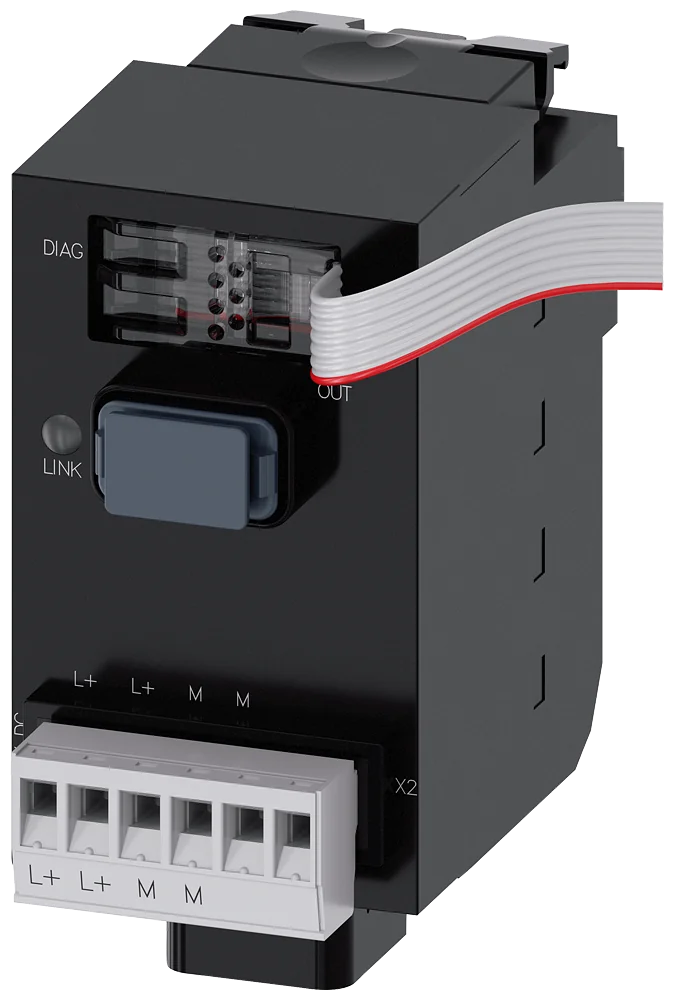

The Siemens 3SU1400-1LK10-1AA1 is a pilot device from the SENTRON/SIRIUS 3SU1 series. SIRIUS ACT with PROFINET: standard interface module 24 V DC, screw terminal, front plate mounting 1 to 20 terminal modules connectable. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1400-1LK10-1AA1 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 3
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Interface module for PROFINET |
| product type designation | 3SU1 |
Display 2
| display version: for diagnostic function: Supply voltage monitoring power LED | Yes |
|---|---|
| display version: status Tx/Rx link | Yes |
General technical data 28
| product function: reverse polarity protection | Yes |
|---|---|
| product function: diagnostics function | Yes |
| product function: alarms | Yes |
| product function: I&M data | Yes; I&M0 ... I&M3 |
| firmware version | 2.1.4 |
| hardware version | 1 |
| configuration function with dataset | Yes |
| software version with STEP 7 in the TIA Portal required | Integrated in TIA Portal Version 14 SP1 or higher (HSP for V13 and V14) |
| number of units per rack maximum | 20 |
| number of submodules per station maximum | 24 |
| power loss [W] typical | 0.67 W |
| insulation voltage rated value | 30 V |
| degree of pollution | 3 |
| type of voltage: of the operating voltage | DC |
| type of voltage: of the input voltage | DC |
| surge voltage resistance rated value | 0.8 kV |
| consumed current: maximum | 100 mA |
| consumed current: rated value | 28 mA |
| protection class IP | IP20, clamping screw tightened |
| shock resistance: according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance: for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance: according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance: for railway applications according to EN 61373 | Category 1, Class B |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 12/19/2016 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 |
| operating voltage rated value minimum | 20.4 V |
| I2t value | 0.008 A2·s |
Show all 109 specifications ↓ Show less ↑76 more values in Identification, Supply voltage, Communication/ Protocol, Control circuit/ Control, Galvanic isolation, Inputs/ Outputs, Connections/ Terminals, Safety related data, Interfaces, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1400-1LK10-1AA1 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621016917 |
| ETIM class | EC002024 |
| eCl@ss | 27371292 |
Supply voltage 1
| supply voltage at DC rated value | 24 V |
|---|
Communication/ Protocol 21
| protocol is supported: PROFINET IO protocol | Yes |
|---|---|
| protocol is supported: PROFIsafe protocol | No |
| product function at the Ethernet interface: Autocrossover | Yes |
| product function at the Ethernet interface: Autonegotiation | Yes |
| protocol at the 1st interface media redundancy protocol | No |
| product function at the 1st interface PROFINET IO device | Yes |
| product function of the PROFINET IO device is supported PROFINET system redundancy | No |
| service as PROFINET IO device: prioritized startup | No |
| service as PROFINET IO device: isochronous mode | No |
| service as PROFINET IO device: supports Shared Device | No |
| service as PROFINET IO device: supports PROFIenergy | No |
| service as PROFINET IO device: IRT | No |
| service as PROFINET IO device: MRP | No |
| service as PROFINET IO device: MRPD | No |
| service for open IE communication: LLDP | Yes |
| service for open IE communication: SNMP | Yes |
| service for open IE communication: TCP/IP | Yes |
| GSD version/revision with PROFINET required | V2.34 |
| transmission mode for Industrial Ethernet | PROFINET with 100 Mbps full duplex (100BASE-TX) |
| network load class according to PROFINET | I |
| specification for Security Level 1 test according to PROFINET | Resilient to network loading |
Control circuit/ Control 1
| inrush current maximum | 16 A |
|---|
Galvanic isolation 1
| galvanic isolation between PROFINET and all other circuits | Yes |
|---|
Inputs/ Outputs 3
| number of digital inputs | 0 |
|---|---|
| safety-related | 0 |
| number of digital outputs | 0 |
Connections/ Terminals 9
| type of electrical connection | screw terminal |
|---|---|
| connectable conductor cross-section for auxiliary contacts: solid or stranded | 0.2 ... 2.5 mm2 |
| connectable conductor cross-section for auxiliary contacts: finely stranded with core end processing maximum | 2.5 mm2 |
| connectable conductor cross-section: solid | 0.2 ... 2.5 mm2 |
| connectable conductor cross-section: solid with core end processing | 0.2 ... 2.5 mm2 |
| connectable conductor cross-section: finely stranded with core end processing | 0.25 ... 2.5 mm2 |
| connectable conductor cross-section: finely stranded without core end processing | 0.2 ... 2.5 mm2 |
| AWG number as coded connectable conductor cross section | 30 ... 12 |
| tightening torque with screw-type terminals | 0.5 ... 0.6 N·m |
Interfaces 6
| design of the interface: Ethernet interface | Yes; for Ethernet services |
|---|---|
| design of the interface: Fast Ethernet interface | Yes; PROFINET with 100 Mbps |
| interface design 1: integrated switch | No |
| interface design 1: RJ45 (Ethernet) | Yes |
| number of ports at the 1st interface | 1 |
| number of interfaces according to PROFINET | 1 |
Ambient conditions 5
| ambient temperature: during operation | -25 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in |
| 60721 | operation permitted) |
| explosion protection marking for intrinsic safety of related equipment EEx ia | No |
Installation/ mounting/ dimensions 4
| fastening method of modules and accessories | Front plate mounting |
|---|---|
| height | 80.1 mm |
| width | 40 mm |
| depth | 72.1 mm |
Environmental footprint 5
| Environmental Product Declaration(EPD) | Yes |
|---|---|
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
|---|
Logistics 7
| Net weight | 0.136 kg |
|---|---|
| Package dimensions | 115 × 100 × 55 mm |
| Country of origin | CZ |
| Shipping weight | 0.636 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1400-1LK10-1AA1
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
Which supply voltage is 3SU1 rated for?
The rated operational voltage of 3SU1 is 24 V AC.
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4047621016917.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
