Part number
3SU1400-1GC10-1AA0
Model no
3SU1
$202.88 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SU1

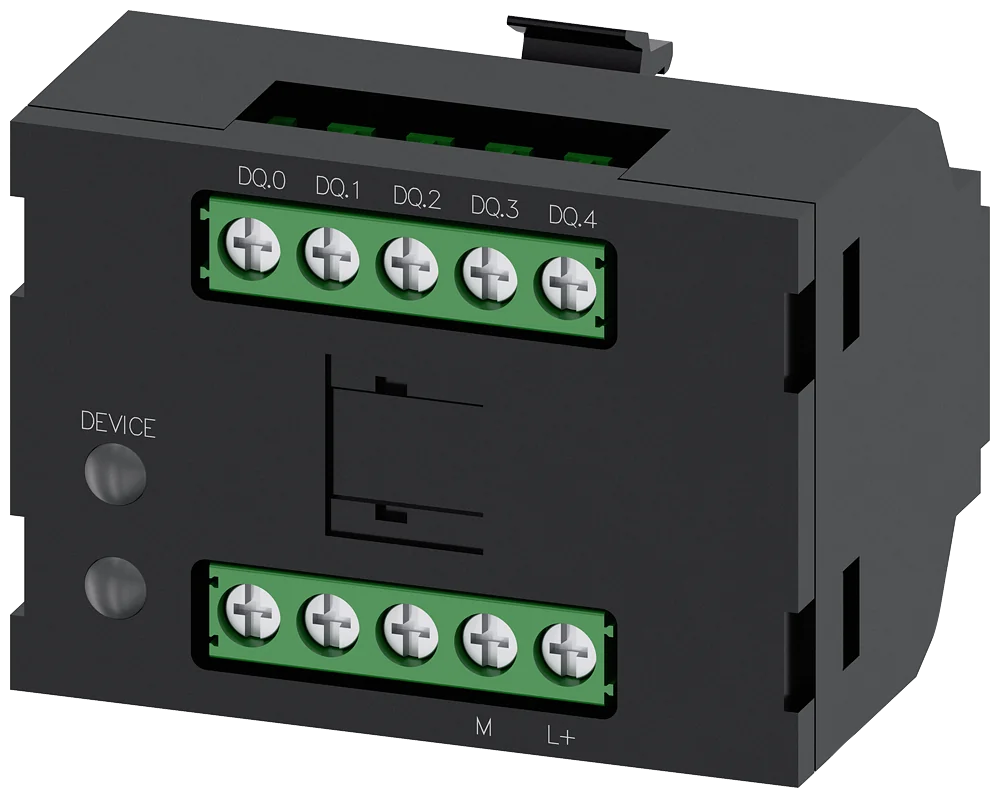

Siemens 3SU1400-1GC10-1AA0 3SU1 24V Pilot Device

Rated operational voltage
24 V AC
EAN
4011209946651
Description

About the 3SU1

The Siemens 3SU1400-1GC10-1AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Electronics module for ID key-operated switch, black, Operating voltage 24 V DC, group ID, screw terminal, for front plate mounting. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1400-1GC10-1AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

74 values · Last verified 30 Oct 2026

General 3

product brand name SIRIUS ACT
product designation Electronic module for ID key-operated switches
product type designation 3SU1

Actuator 1

product extension optional light source No

Contact block/ lampholder 1

socket design other
Show all 74 specifications ↓ Show less ↑69 more values in Identification, Display, General technical data, Communication/ Protocol, Auxiliary circuit, Inputs/ Outputs, Connections/ Terminals, Product Function, Safety related data, Electrical Safety, Ambient conditions, Installation/ mounting/ dimensions, Measuring circuit, Environmental footprint, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1400-1GC10-1AA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209946651
ETIM class EC000041
eCl@ss 27371302

Display 1

number of LEDs 4

General technical data 13

insulation voltage rated value 30 V
degree of pollution 3
type of voltage: of the operating voltage DC
type of voltage: of the input voltage DC
surge voltage resistance rated value 0.8 kV
consumed current maximum 49 mA
protection class IP IP20, clamping screw tightened
reference code according to IEC 81346-2 P
Substance Prohibitance (day/month/year) 10/01/2014
SVHC substance name Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1
operating voltage: rated value 18 ... 30 V
operating voltage: at DC rated value 24 V
operating voltage 1 at DC rated value 24 V

Communication/ Protocol 1

protocol is supported IO-Link protocol No

Auxiliary circuit 2

number of NC contacts for auxiliary contacts 0
number of NO contacts for auxiliary contacts 5

Inputs/ Outputs 5

number of digital inputs 0
safety-related 0
number of digital outputs 5
output voltage at digital output at DC rated value 23.5 V
output current per output 250 mA

Connections/ Terminals 5

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid without core end processing 1x (0.2 ... 2.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.25 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: for AWG cables 1x (26 ... 14)
tightening torque with screw-type terminals 0.4 N·m

Product Function 1

product function parameterizable No

Electrical Safety 1

touch protection against electrical shock finger-safe

Ambient conditions 4

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in
60721 operation permitted)

Installation/ mounting/ dimensions 10

fastening method front plate mounting
of modules and accessories Front plate mounting
height 36 mm
width 50 mm
depth 36.4 mm
required spacing with side-by-side mounting: forwards 100 mm
required spacing with side-by-side mounting: backwards 100 mm
required spacing with side-by-side mounting: upwards 100 mm
required spacing with side-by-side mounting: downwards 100 mm
required spacing with side-by-side mounting: at the side 100 mm

Measuring circuit 1

product function Group ID 24 V DC

Environmental footprint 5

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] total 0.787 kg
global warming potential [CO2 eq] during manufacturing 0.566 kg
global warming potential [CO2 eq] during operation 0.235 kg
global warming potential [CO2 eq] after end of life -0.015 kg

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.566 kg

Logistics 7

Net weight 0.045 kg
Package dimensions 81 × 50 × 65 mm
Country of origin CZ
Shipping weight 0.545 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1400-1GC10-1AA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SU1

Which supply voltage is 3SU1 rated for?

The rated operational voltage of 3SU1 is 24 V AC.

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209946651.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
