- Part number
- 3SU1400-1AA10-1BA0
- Model no
- 3SU1
Description
About the 3SU1
About the 3SU1

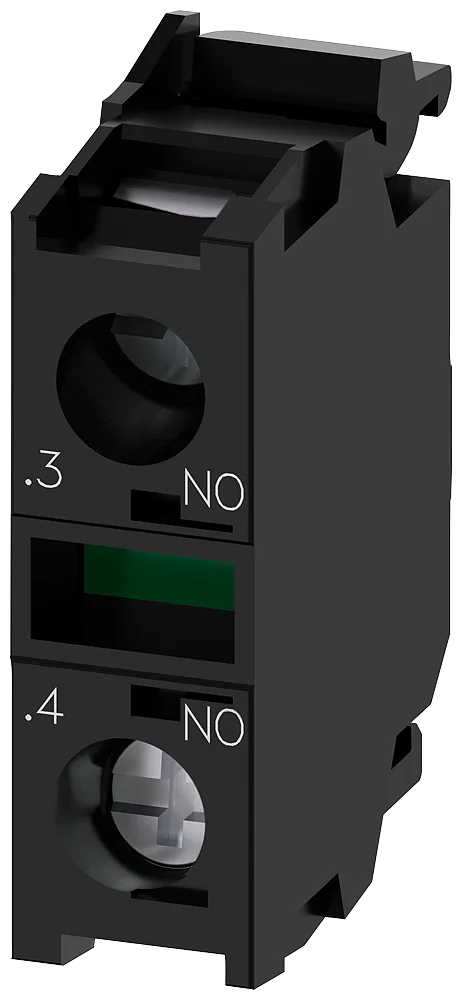

The Siemens 3SU1400-1AA10-1BA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Contact module with 1 contact element, 1 NO, screw terminal, for front plate mounting, Minimum order quantity 5 or a multiple of this. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1400-1AA10-1BA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 3
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Contact module |
| product type designation | 3SU1 |
Contact block/ lampholder 1
| socket design | other |
|---|
General technical data 22
| product function positive opening | No |
|---|---|
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage: of the operating voltage | AC/DC |
| type of voltage: of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP: of the enclosure | IP40 |
| protection class IP: of the terminal | IP20 |
| shock resistance: according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance: for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance: according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance: for railway applications according to EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| at AC: at 50 Hz rated value | 5 ... 500 V |
| at AC: at 60 Hz rated value | 5 ... 500 V |
| at AC: at DC rated value | 5 ... 500 V |
Show all 95 specifications ↓ Show less ↑69 more values in Identification, Power Electronics, Auxiliary circuit, Connections/ Terminals, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1400-1AA10-1BA0 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209937215 |
| ETIM class | EC000041 |
| eCl@ss | 27371302 |
Power Electronics 1
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
|---|
Auxiliary circuit 28
| design of the contact of auxiliary contacts | Silver alloy |
|---|---|
| number of NC contacts for auxiliary contacts | 0 |
| lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| leading contact | 0 |
| operational current at AC-12: at 24 V rated value | 10 A |
| operational current at AC-12: at 48 V rated value | 10 A |
| operational current at AC-12: at 110 V rated value | 10 A |
| operational current at AC-12: at 230 V rated value | 8 A |
| operational current at AC-12: at 400 V rated value | 8 A |
| operational current at AC-15: at 24 V rated value | 6 A |
| operational current at AC-15: at 48 V rated value | 6 A |
| operational current at AC-15: at 110 V rated value | 6 A |
| operational current at AC-15: at 230 V rated value | 6 A |
| operational current at AC-15: at 400 V rated value | 3 A |
| operational current at AC-15: at 500 V rated value | 1.4 A |
| operational current at DC-12: at 24 V rated value | 10 A |
| operational current at DC-12: at 48 V rated value | 5 A |
| operational current at DC-12: at 110 V rated value | 2.5 A |
| operational current at DC-12: at 230 V rated value | 1 A |
| operational current at DC-12: at 400 V rated value | 0.3 A |
| operational current at DC-12: at 500 V rated value | 0.3 A |
| operational current at DC-13: at 24 V rated value | 3 A |
| operational current at DC-13: at 48 V rated value | 1.5 A |
| operational current at DC-13: at 110 V rated value | 0.7 A |
| operational current at DC-13: at 230 V rated value | 0.3 A |
| operational current at DC-13: at 400 V rated value | 0.1 A |
| operational current at DC-13: at 500 V rated value | 0.1 A |
Connections/ Terminals 6
| type of electrical connection | screw terminal |
|---|---|
| type of connectable conductor cross-sections: solid with core end processing | 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: solid without core end processing | 2x (1.0 ... 1.5 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 2x (0.5 ... 1.5 mm2) |
| type of connectable conductor cross-sections: for AWG cables | 2x (18 ... 14) |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... |
| 60721 | 95%, no condensation in operation permitted) |
Installation/ mounting/ dimensions 7
| fastening method | front plate mounting |
|---|---|
| of modules and accessories | Front plate mounting |
| height | 33.2 mm |
| width | 9.8 mm |
| depth | 27.7 mm |
| suitability for integration: plastic enclosure | Yes |
| suitability for integration: metal enclosure | Yes |
Environmental footprint 5
| Environmental Product Declaration(EPD) | Yes |
|---|---|
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
|---|
Logistics 7
| Net weight | 0.008 kg |
|---|---|
| Package dimensions | 33 × 25 × 11 mm |
| Country of origin | DE |
| Shipping weight | 0.508 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1400-1AA10-1BA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
What is the rated current of 3SU1?
The rated current of 3SU1 is 10 A.
Which supply voltage is 3SU1 rated for?
The rated operational voltage of 3SU1 is 5500 V AC.
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4011209937215.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
