Part number
3SU1156-0AB50-1BA0
Model no
3SU1
$36.62 In stock · 20 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SU1

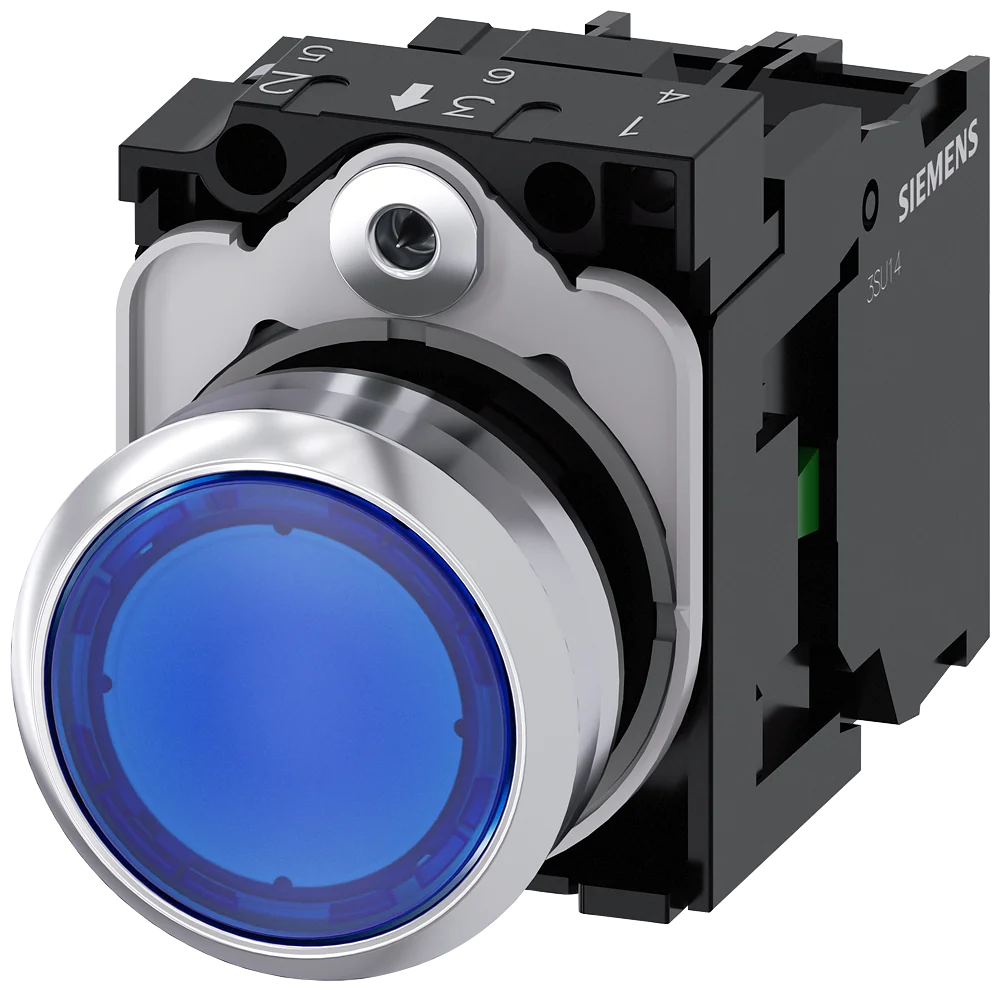

Siemens 3SU1156-0AB50-1BA0 3SU1 230V Pilot Device

Rated operational voltage
230 V AC
EAN
4011209966383
Description

About the 3SU1

The Siemens 3SU1156-0AB50-1BA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Illuminated pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 230 V AC, screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1156-0AB50-1BA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

112 values · Last verified 30 Oct 2026

General 10

product brand name SIRIUS ACT
product designation Illuminated pushbuttons
design of the product Complete unit
product type designation 3SU1
product line Metal, shiny, 22 mm
manufacturer's article number: of supplied contact module at position 1 3SU1400-1AA10-1BA0
manufacturer's article number: of supplied LED module 3SU1401-1BF50-1AA0
manufacturer's article number: of the supplied holder 3SU1550-0AA10-0AA0
manufacturer's article number: of the supplied actuator 3SU1051-0AB50-0AA0
number of command points 1

Actuator 8

design of the actuating element Button, flat
principle of operation of the actuating element momentary contact type
product extension optional light source Yes
color of the actuating element blue
material of the actuating element plastic
shape of the actuating element round
outer diameter of the actuating element 29.45 mm
number of contact modules 1

Front ring 4

product component front ring Yes
design of the front ring Standard
material of the front ring Metal, high gloss
color of the front ring silver
Show all 112 specifications ↓ Show less ↑90 more values in Identification, Holder, Display, General technical data, Power Electronics, Supply voltage, Control circuit/ Control, Auxiliary circuit, Connections/ Terminals, Lamp, Safety related data, ISO 13849, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1156-0AB50-1BA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209966383
ETIM class EC001028
eCl@ss 27371228

Holder 1

material of the holder Plastic

Display 1

number of LED modules 1

General technical data 24

product function positive opening No
product component light source Yes
insulation voltage rated value 320 V
degree of pollution 3
type of voltage of the operating voltage AC/DC
surge voltage resistance rated value 4 kV
protection class IP IP66, IP67, IP69(IP69K)
protection class IP of the terminal IP20
degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
operating frequency maximum 3 600 1/h
mechanical service life (operating cycles) typical 3 000 000
electrical endurance (operating cycles) typical 10 000 000
thermal current 10 A
reference code according to IEC 81346-2 S
continuous current of the C characteristic MCB 10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A
continuous current of the DIAZED fuse link gG 10 A
Substance Prohibitance (day/month/year) 10/01/2014
SVHC substance name 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5
at AC: at 50 Hz rated value 5 ... 500 V
at AC: at 60 Hz rated value 5 ... 500 V
at AC: at DC rated value 5 ... 500 V

Power Electronics 1

contact reliability One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Supply voltage 3

type of voltage of the supply voltage of the light source AC
supply voltage of the light source at AC: at 50 Hz rated value 230 V
supply voltage of the light source at AC: at 60 Hz rated value 230 V

Control circuit/ Control 1

inrush current of LED module maximum 3 A

Auxiliary circuit 3

design of the contact of auxiliary contacts Silver alloy
number of NC contacts for auxiliary contacts 0
number of NO contacts for auxiliary contacts 1

Connections/ Terminals 8

type of electrical connection screw terminal
of modules and accessories Screw-type terminal
type of connectable conductor cross-sections: solid with core end processing 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: solid without core end processing 2x (1.0 ... 1.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 2x (0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: for AWG cables 2x (18 ... 14)
tightening torque of the screws in the bracket 1 ... 1.2 N·m
tightening torque with screw-type terminals 0.8 ... 0.9 N·m

Lamp 3

type of light source LED
color of the light source blue
light intensity 280 ... 710 mcd

ISO 13849 1

device type according to ISO 13849-1 3

IEC 61508 2

safety device type according to IEC 61508-2 Type A
T1 value for proof test interval or service life according to IEC 61508 20 a

Ambient conditions 4

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in
60721 operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions 10

fastening method front plate mounting
of modules and accessories Front plate mounting
height 40 mm
width 30 mm
shape of the installation opening round
mounting diameter 22.3 mm
positive tolerance of installation diameter 0.4 mm
mounting height 11 mm
installation width 29.5 mm
installation depth 49.7 mm

Environmental footprint 6

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] total 0.593 kg
global warming potential [CO2 eq] during manufacturing 0.625 kg
global warming potential [CO2 eq] during operation 0.235 kg
global warming potential [CO2 eq] after end of life -0.267 kg
Siemens eco profile (SEP) Siemens EcoTech

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.625 kg

Logistics 7

Net weight 0.096 kg
Package dimensions 166 × 4 × 34 mm
Country of origin DE
Shipping weight 0.596 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1156-0AB50-1BA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SU1

Which supply voltage is 3SU1 rated for?

The rated operational voltage of 3SU1 is 230 V AC.

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209966383.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
