- Part number
- 3SU1150-1HB20-1CG0
- Model no
- 3SU1
Description
About the 3SU1
About the 3SU1

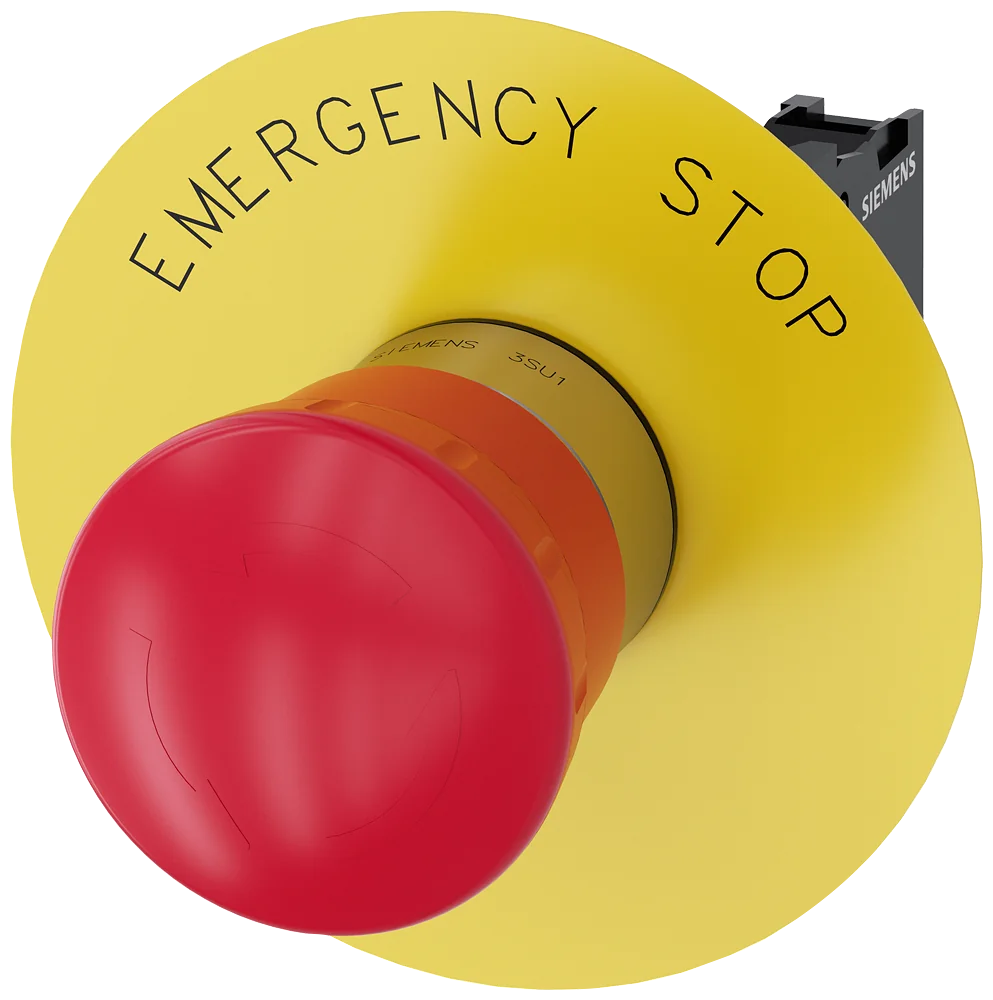

The Siemens 3SU1150-1HB20-1CG0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch, with yellow backing plate, inscription: EMERGENCY STOP, with holder, 1 NC, screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1150-1HB20-1CG0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 9
| product brand name | SIRIUS ACT |
|---|---|
| product designation | EMERGENCY STOP mushroom pushbuttons |
| design of the product | Complete unit |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
| manufacturer's article number: of supplied contact module at position 1 | 3SU1400-1AA10-1CA0 |
| manufacturer's article number: of the supplied holder | 3SU1550-0AA10-0AA0 |
| manufacturer's article number: of the supplied actuator | 3SU1050-1HB20-0AA0 |
| manufacturer's article number: of supplied accessory | 3SU1900-0BC31-0DA0 |
Enclosure 1
| number of command points | 1 |
|---|
Actuator 9
| design of the actuating element | positive latching |
|---|---|
| principle of operation of the actuating element | latching |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| outer diameter of the actuating element | 40 mm |
| number of contact modules | 1 |
| type of unlocking device | rotate-to-unlatch mechanism |
Show all 109 specifications ↓ Show less ↑90 more values in Identification, Front ring, Holder, Display, General technical data, Power Electronics, Auxiliary circuit, Connections/ Terminals, Safety related data, ISO 13849, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Accessories, Environmental footprint, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1150-1HB20-1CG0 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209956896 |
| ETIM class | EC001028 |
| eCl@ss | 27371228 |
Front ring 1
| product component front ring | No |
|---|
Holder 1
| material of the holder | Plastic |
|---|
Display 1
| number of LED modules | 0 |
|---|
General technical data 25
| product function: positive opening | Yes |
|---|---|
| product function: EMERGENCY OFF function | Yes |
| product function: EMERGENCY STOP function | Yes |
| product component light source | No |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP66, IP67, IP69(IP69K) |
| protection class IP of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance: according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance: according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| operating frequency maximum | 600 1/h |
| mechanical service life (operating cycles) typical | 300 000 |
| electrical endurance (operating cycles) typical | 300 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| at AC: at 50 Hz rated value | 5 ... 500 V |
| at AC: at 60 Hz rated value | 5 ... 500 V |
| at AC: at DC rated value | 5 ... 500 V |
Power Electronics 1
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
|---|
Auxiliary circuit 3
| design of the contact of auxiliary contacts | Silver alloy |
|---|---|
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
Connections/ Terminals 7
| type of electrical connection: of modules and accessories | Screw-type terminal |
|---|---|
| type of connectable conductor cross-sections: solid with core end processing | 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: solid without core end processing | 2x (1.0 ... 1.5 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 2x (0.5 ... 1.5 mm2) |
| type of connectable conductor cross-sections: for AWG cables | 2x (18 ... 14) |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque for auxiliary contacts with screw-type terminals | 0.8 ... 0.9 N·m |
ISO 13849 1
| device type according to ISO 13849-1 | 3 |
|---|
IEC 61508 2
| safety device type according to IEC 61508-2 | Type A |
|---|---|
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
Ambient conditions 4
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no |
| 60721 | condensation in operation permitted for all devices behind front panel) |
Installation/ mounting/ dimensions 10
| fastening method | front plate mounting |
|---|---|
| of modules and accessories | Front plate mounting |
| height | 40 mm |
| width | 30 mm |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 46.4 mm |
| installation width | 75 mm |
| installation depth | 48.6 mm |
Accessories 3
| number of backing plates | 1 |
|---|---|
| marking of backing plate | EMERGENCY STOP |
| color of backing plate | Yellow |
Environmental footprint 6
| Environmental Product Declaration(EPD) | Yes |
|---|---|
| global warming potential [CO2 eq] total | 0.593 kg |
| global warming potential [CO2 eq] during manufacturing | 0.625 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.267 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.625 kg |
|---|
Logistics 7
| Net weight | 0.121 kg |
|---|---|
| Package dimensions | 134 × 90 × 52 mm |
| Country of origin | DE |
| Shipping weight | 0.621 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1150-1HB20-1CG0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
Which supply voltage is 3SU1 rated for?
The rated operational voltage of 3SU1 is 5500 V AC.
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4011209956896.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
