Part number
3SU1100-0AB60-1BA0
Model no
3SU1
$14.18 On request Dispatch — · From TürkiyeGet a Quote
3SU1

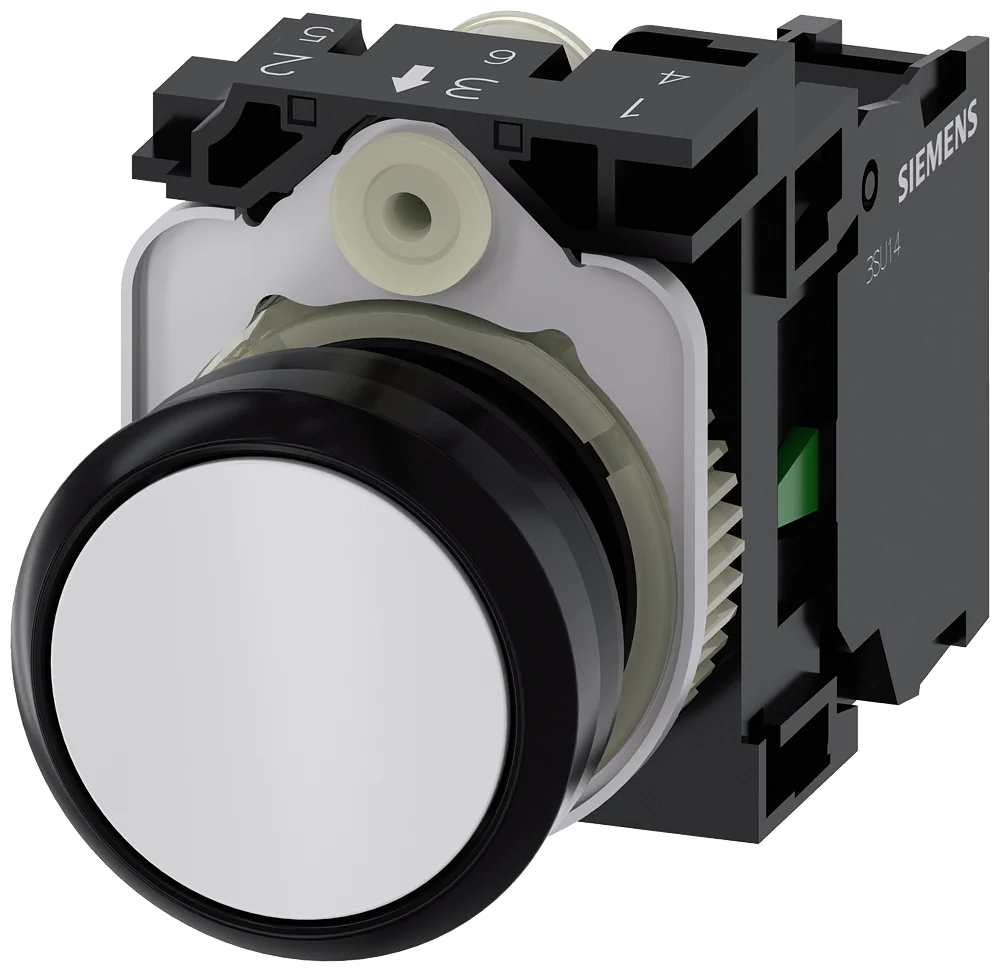

Siemens 3SU1100-0AB60-1BA0 3SU1 5500V Pilot Device

Rated operational voltage
5500 V AC
EAN
4011209959392
Description

About the 3SU1

The Siemens 3SU1100-0AB60-1BA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Pushbutton, 22 mm, round, plastic, white, pushbutton, flat, momentary contact type, with holder 1 NO, screw terminal. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1100-0AB60-1BA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

105 values · Last verified 30 Oct 2026

General 9

product brand name SIRIUS ACT
product designation Pushbuttons
design of the product Complete unit
product type designation 3SU1
product line Plastic, black, 22 mm
manufacturer's article number: of supplied contact module at position 1 3SU1400-1AA10-1BA0
manufacturer's article number: of the supplied holder 3SU1500-0AA10-0AA0
manufacturer's article number: of the supplied actuator 3SU1000-0AB60-0AA0
number of command points 1

Actuator 8

design of the actuating element Button, flat
principle of operation of the actuating element momentary contact type
product extension optional light source No
color of the actuating element white
material of the actuating element plastic
shape of the actuating element round
outer diameter of the actuating element 29.45 mm
number of contact modules 1

Front ring 4

product component front ring Yes
design of the front ring Standard
material of the front ring plastic
color of the front ring black
Show all 105 specifications ↓ Show less ↑84 more values in Identification, Holder, Display, General technical data, Power Electronics, Auxiliary circuit, Connections/ Terminals, Safety related data, ISO 13849, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1100-0AB60-1BA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209959392
ETIM class EC001028
eCl@ss 27371228

Holder 1

material of the holder Plastic

Display 1

number of LED modules 0

General technical data 25

product function positive opening No
product component light source No
insulation voltage rated value 500 V
degree of pollution 3
type of voltage of the operating voltage AC/DC
surge voltage resistance rated value 6 kV
protection class IP IP66, IP67, IP69(IP69K)
protection class IP of the terminal IP20
degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
shock resistance: for railway applications according to EN 61373 Category 1, Class B
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
vibration resistance: for railway applications according to EN 61373 Category 1, Class B
operating frequency maximum 3 600 1/h
mechanical service life (operating cycles) typical 10 000 000
electrical endurance (operating cycles) typical 10 000 000
thermal current 10 A
reference code according to IEC 81346-2 S
continuous current of the C characteristic MCB 10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A
continuous current of the DIAZED fuse link gG 10 A
Substance Prohibitance (day/month/year) 10/01/2014
at AC: at 50 Hz rated value 5 ... 500 V
at AC: at 60 Hz rated value 5 ... 500 V
at AC: at DC rated value 5 ... 500 V

Power Electronics 1

contact reliability One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit 3

design of the contact of auxiliary contacts Silver alloy
number of NC contacts for auxiliary contacts 0
number of NO contacts for auxiliary contacts 1

Connections/ Terminals 8

type of electrical connection screw terminal
of modules and accessories Screw-type terminal
type of connectable conductor cross-sections: solid with core end processing 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: solid without core end processing 2x (1.0 ... 1.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 2x (0.5 ... 1.5 mm2)
type of connectable conductor cross-sections: for AWG cables 2x (18 ... 14)
tightening torque of the screws in the bracket 1 ... 1.2 N·m
tightening torque with screw-type terminals 0.8 ... 0.9 N·m

ISO 13849 1

device type according to ISO 13849-1 3

IEC 61508 2

safety device type according to IEC 61508-2 Type A
T1 value for proof test interval or service life according to IEC 61508 20 a

Ambient conditions 4

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no
60721 condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions 10

fastening method front plate mounting
of modules and accessories Front plate mounting
height 40 mm
width 30 mm
shape of the installation opening round
mounting diameter 22.3 mm
positive tolerance of installation diameter 0.4 mm
mounting height 11 mm
installation width 29.5 mm
installation depth 49.7 mm

Environmental footprint 6

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] total 0.787 kg
global warming potential [CO2 eq] during manufacturing 0.566 kg
global warming potential [CO2 eq] during operation 0.235 kg
global warming potential [CO2 eq] after end of life -0.015 kg
Siemens eco profile (SEP) Siemens EcoTech

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.566 kg

Logistics 7

Net weight 0.045 kg
Package dimensions 100 × 60 × 60 mm
Country of origin DE
Shipping weight 0.545 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1100-0AB60-1BA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SU1

Which supply voltage is 3SU1 rated for?

The rated operational voltage of 3SU1 is 5500 V AC.

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209959392.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
