Part number
3SU1061-0JB30-0AA0
Model no
3SU1
$31.43 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SU1

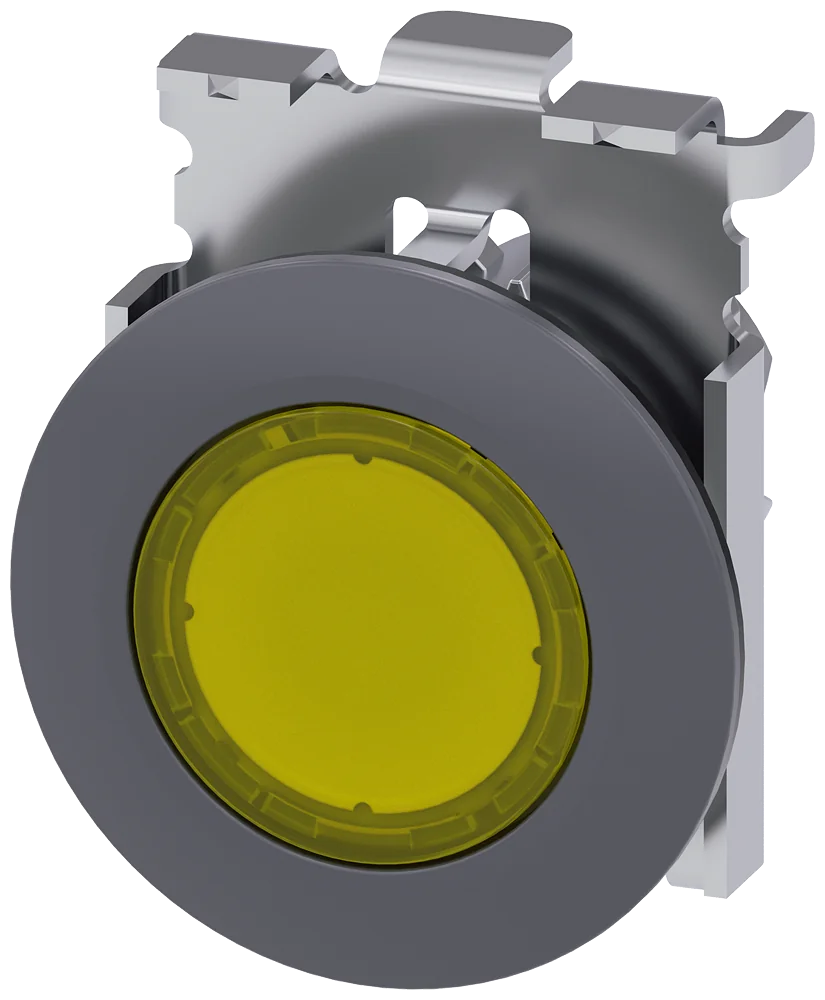

Siemens 3SU1061-0JB30-0AA0 3SU1 Pilot Device

product brand name
SIRIUS ACT
product designation
Illuminated pushbuttons
design of the product
Actuating/signaling element
product type designation
3SU1
product line
Metal, matt, flat, 30 mm
EAN
4011209966673
Description

About the 3SU1

The Siemens 3SU1061-0JB30-0AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Illuminated pushbutton, 30 mm, round, metal, matte, yellow, front ring for flush installation, momentary contact type. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1061-0JB30-0AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

61 values · Last verified 30 Oct 2026

General 5

product brand name SIRIUS ACT
product designation Illuminated pushbuttons
design of the product Actuating/signaling element
product type designation 3SU1
product line Metal, matt, flat, 30 mm

Enclosure 1

number of command points 1

Actuator 8

design of the actuating element Flat button
principle of operation of the actuating element momentary contact type
product extension optional: light source Yes
product extension optional: contact module Yes
color of the actuating element yellow
material of the actuating element plastic
shape of the actuating element round
outer diameter of the actuating element 38 mm
Show all 61 specifications ↓ Show less ↑47 more values in Identification, Front ring, General technical data, Safety related data, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Logistics.

Identification 10

Part number 3SU1061-0JB30-0AA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209966673
ETIM class EC000221
eCl@ss 27371210

Front ring 4

product component front ring Yes
design of the front ring Flat
material of the front ring Metal, matt
color of the front ring sand gray

General technical data 10

protection class IP IP66, IP67, IP69(IP69K)
degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
shock resistance: for railway applications according to EN 61373 Category 1, Class B
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
vibration resistance: for railway applications according to EN 61373 Category 1, Class B
operating frequency maximum 3 600 1/h
mechanical service life (operating cycles) typical 3 000 000
reference code according to IEC 81346-2 S
Substance Prohibitance (day/month/year) 10/01/2014

IEC 61508 1

T1 value for proof test interval or service life according to IEC 61508 20 a

Ambient conditions 3

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 60721 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions 8

height 38 mm
width 38 mm
shape of the installation opening round
mounting diameter 30.5 mm
positive tolerance of installation diameter 0.5 mm
mounting height 4.2 mm
installation width 38 mm
installation depth 31.1 mm

Logistics 7

Net weight 0.062 kg
Package dimensions 70 × 45 × 38 mm
Country of origin CN
Shipping weight 0.562 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 3SU1061-0JB30-0AA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SU1

What is the EAN of 3SU1?

The EAN (GTIN) of 3SU1 is 4011209966673.

Where does 3SU1 ship from, and how fast?

3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
