Part number
3SU1060-4LL11-0AA0
Model no
3SU1
$68.83 On request Dispatch — · From TürkiyeGet a Quote
3SU1

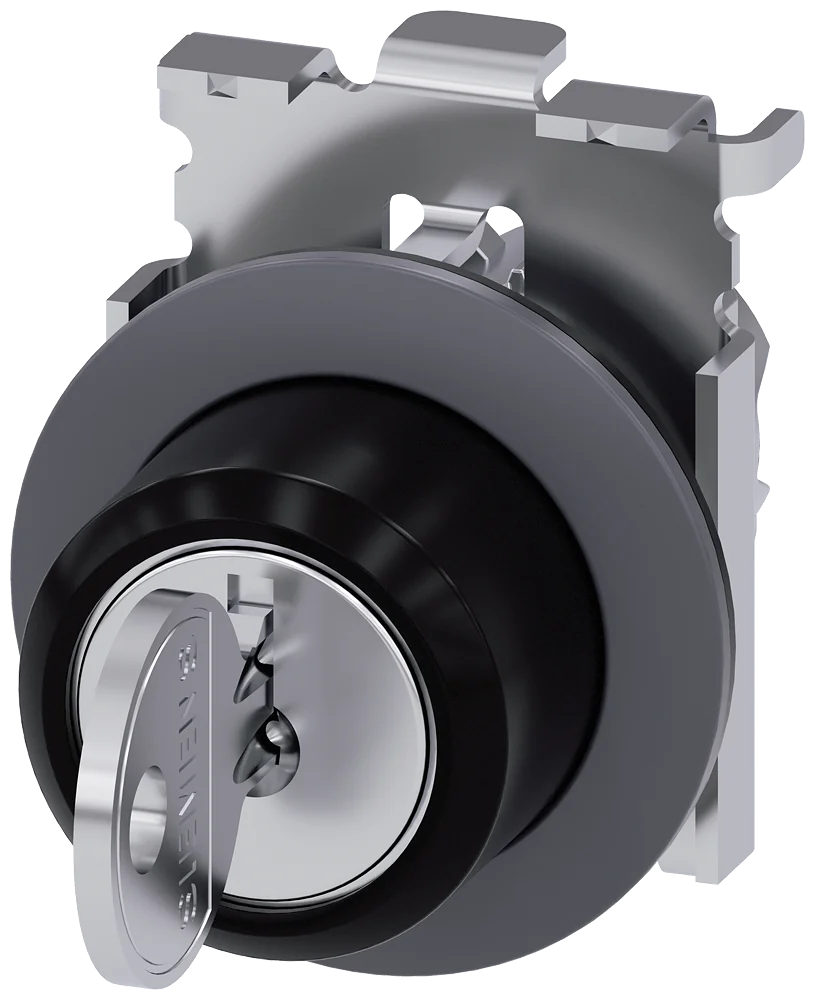

Siemens 3SU1060-4LL11-0AA0 3SU1 Pilot Device

product brand name
SIRIUS ACT
product designation
Key-operated switches
design of the product
Actuating/signaling element
product type designation
3SU1
product line
Metal, matt, flat, 30 mm
manufacturer's article number of included key
3SU1950-0FB80-0AA0
EAN
4011209968486
Description

About the 3SU1

The Siemens 3SU1060-4LL11-0AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. RONIS key-operated switch, 30 mm, round, metal, matte, front ring for flush installation, lock number SB30, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal I+O+II, possible special locks: SB31, 421, 455. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1060-4LL11-0AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

61 values · Last verified 30 Oct 2026

General 6

product brand name SIRIUS ACT
product designation Key-operated switches
design of the product Actuating/signaling element
product type designation 3SU1
product line Metal, matt, flat, 30 mm
manufacturer's article number of included key 3SU1950-0FB80-0AA0

Actuator 12

principle of operation of the actuating element latching, 2x45° (10:30 h/12 h/13:30 h)
product extension optional light source No
color: of the actuating element silver
material of the actuating element metal
shape of the actuating element Key
outer diameter of the actuating element 38 mm
number of switching positions 3
switch position for key distraction O+I+II
actuating angle: clockwise 45°
actuating angle: anticlockwise 45°
lock make RONIS
key number SB30

Front ring 4

product component front ring Yes
design of the front ring Standard
material of the front ring Metal, matt
color of the front ring sand gray
Show all 61 specifications ↓ Show less ↑39 more values in Identification, General technical data, Ambient conditions, Installation/ mounting/ dimensions, Logistics.

Identification 10

Part number 3SU1060-4LL11-0AA0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209968486
ETIM class EC000222
eCl@ss 27371213

General technical data 11

protection class IP IP66, IP67, IP69(IP69K)
protection class IP of the terminal IP20
degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
shock resistance: for railway applications according to EN 61373 Category 1, Class B
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
vibration resistance: for railway applications according to EN 61373 Category 1, Class B
operating frequency maximum 1 800 1/h
mechanical service life (operating cycles) typical 300 000
reference code according to IEC 81346-2 S
Substance Prohibitance (day/month/year) 10/01/2014

Ambient conditions 3

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 60721 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions 8

height 44.8 mm
width 38 mm
shape of the installation opening round
mounting diameter 30.5 mm
positive tolerance of installation diameter 0.5 mm
mounting height 42.7 mm
installation width 38 mm
installation depth 32.1 mm

Logistics 7

Net weight 0.095 kg
Package dimensions 60 × 40 × 30 mm
Country of origin CZ
Shipping weight 0.595 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
