- Part number
- 3SU1060-4LF11-0AA0
- Model no
- 3SU1
In stock · 26
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
3SU1Siemens 3SU1060-4LF11-0AA0 3SU1 Pilot Device
Description
About the 3SU1
About the 3SU1

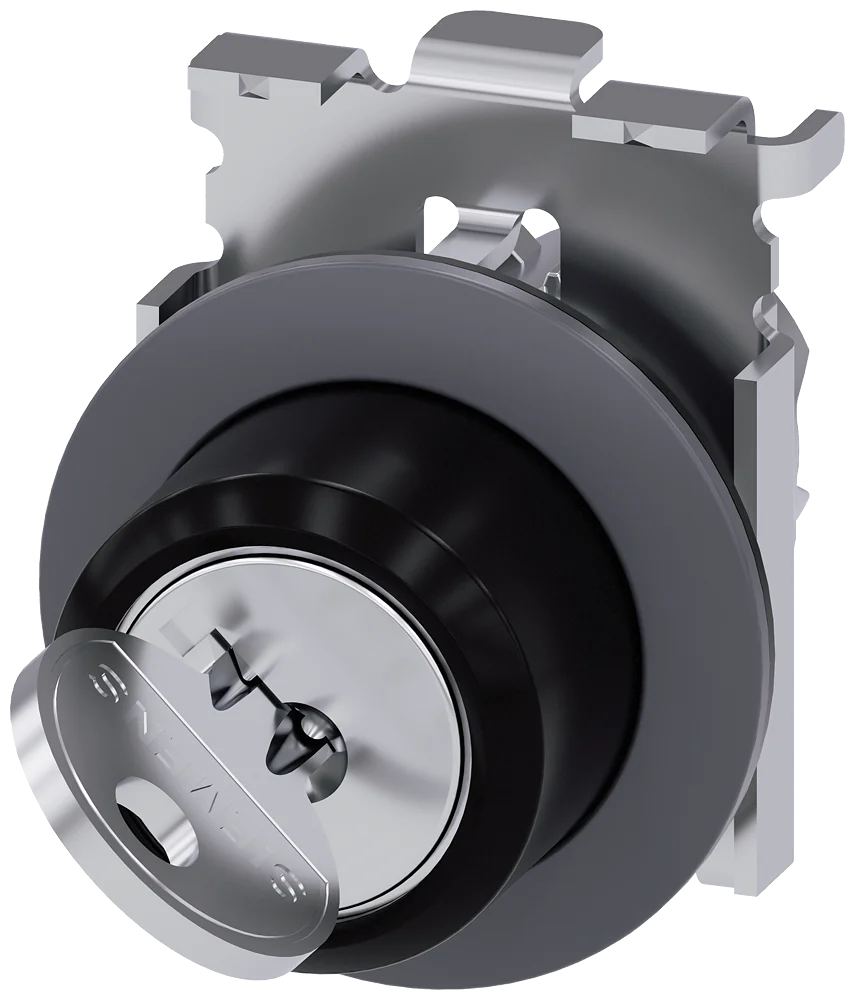

The Siemens 3SU1060-4LF11-0AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. RONIS key-operated switch, 30 mm, round, metal, matte, front ring for flush installation, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I, possible special locks: SB31, 421, 455. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1060-4LF11-0AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 6
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Key-operated switches |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, matt, flat, 30 mm |
| manufacturer's article number of included key | 3SU1950-0FB80-0AA0 |
Actuator 11
| principle of operation of the actuating element | latching, 90° (10:30 h/13:30 h) |
|---|---|
| product extension optional light source | No |
| color: of the actuating element | silver |
| material of the actuating element | metal |
| shape of the actuating element | Key |
| outer diameter of the actuating element | 38 mm |
| number of switching positions | 2 |
| switch position for key distraction | O+I |
| actuating angle: clockwise | 90° |
| lock make | RONIS |
| key number | SB30 |
Front ring 4
| product component front ring | Yes |
|---|---|
| design of the front ring | Standard |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
Show all 60 specifications ↓ Show less ↑39 more values in Identification, General technical data, Ambient conditions, Installation/ mounting/ dimensions, Logistics.
Identification 10
| Part number | 3SU1060-4LF11-0AA0 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209968455 |
| ETIM class | EC000222 |
| eCl@ss | 27371213 |
General technical data 11
| protection class IP | IP66, IP67, IP69(IP69K) |
|---|---|
| protection class IP of the terminal | IP20 |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance: according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance: for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance: according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance: for railway applications according to EN 61373 | Category 1, Class B |
| operating frequency maximum | 1 800 1/h |
| mechanical service life (operating cycles) typical | 300 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
Installation/ mounting/ dimensions 8
| height | 44.8 mm |
|---|---|
| width | 38 mm |
| shape of the installation opening | round |
| mounting diameter | 30.5 mm |
| positive tolerance of installation diameter | 0.5 mm |
| mounting height | 42.7 mm |
| installation width | 38 mm |
| installation depth | 32.1 mm |
Logistics 7
| Net weight | 0.097 kg |
|---|---|
| Package dimensions | 90 × 80 × 40 mm |
| Country of origin | CZ |
| Shipping weight | 0.597 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1060-4LF11-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4011209968455.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
