3SU1Siemens 3SU1051-6AA40-0AA0 3SU1 Pilot Device
Description
About the 3SU1
About the 3SU1

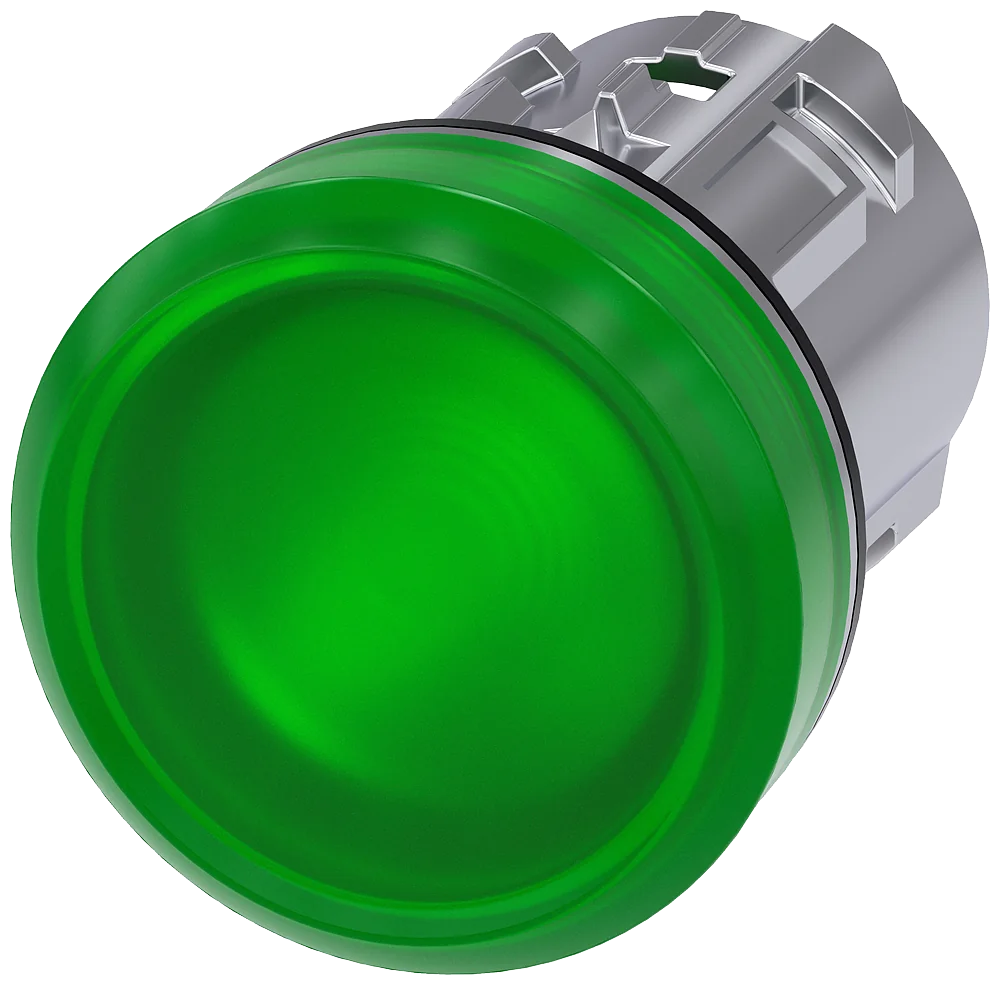

The Siemens 3SU1051-6AA40-0AA0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Indicator lights, 22 mm, round, metal, shiny, green, lens, smooth. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SU1051-6AA40-0AA0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 5
| product brand name | SIRIUS ACT |
|---|---|
| product designation | Indicator lights |
| design of the product | Actuating/signaling element |
| product type designation | 3SU1 |
| product line | Metal, shiny, 22 mm |
Actuator 7
| product extension optional: light source | Yes |
|---|---|
| product extension optional: contact module | No |
| color: of the actuating element | green |
| color: of the cover cap | green |
| material of the actuating element | metal |
| shape of the actuating element | round |
| outer diameter of the actuating element | 29.45 mm |
Front ring 3
| product component front ring | No |
|---|---|
| material of the front ring | plastic |
| color of the front ring | black |
Show all 57 specifications ↓ Show less ↑42 more values in Identification, General technical data, Connections/ Terminals, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.
Identification 10
| Part number | 3SU1051-6AA40-0AA0 |
|---|---|
| Type designation | 3SU1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209946408 |
| ETIM class | EC000223 |
| eCl@ss | 27371211 |
General technical data 6
| protection class IP | IP66, IP67, IP69(IP69K) |
|---|---|
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance: according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| vibration resistance: according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| reference code according to IEC 81346-2 | P |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
Connections/ Terminals 1
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
|---|
Ambient conditions 3
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
Installation/ mounting/ dimensions 8
| height | 29.5 mm |
|---|---|
| width | 29.5 mm |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| mounting height | 11.8 mm |
| installation width | 29.5 mm |
| installation depth | 24.4 mm |
Environmental footprint 6
| Environmental Product Declaration(EPD) | Yes |
|---|---|
| global warming potential [CO2 eq] total | 0.593 kg |
| global warming potential [CO2 eq] during manufacturing | 0.625 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.267 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 0.625 kg |
|---|
Logistics 7
| Net weight | 0.022 kg |
|---|---|
| Package dimensions | 45 × 25 × 25 mm |
| Country of origin | CN |
| Shipping weight | 0.522 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 3SU1051-6AA40-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SU1
What is the EAN of 3SU1?
The EAN (GTIN) of 3SU1 is 4011209946408.
Where does 3SU1 ship from, and how fast?
3SU1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
