Part number
3SU1000-3FB11-0AU0
Model no
3SU1
$50.81 On request Dispatch — · From TürkiyeGet a Quote
3SU1

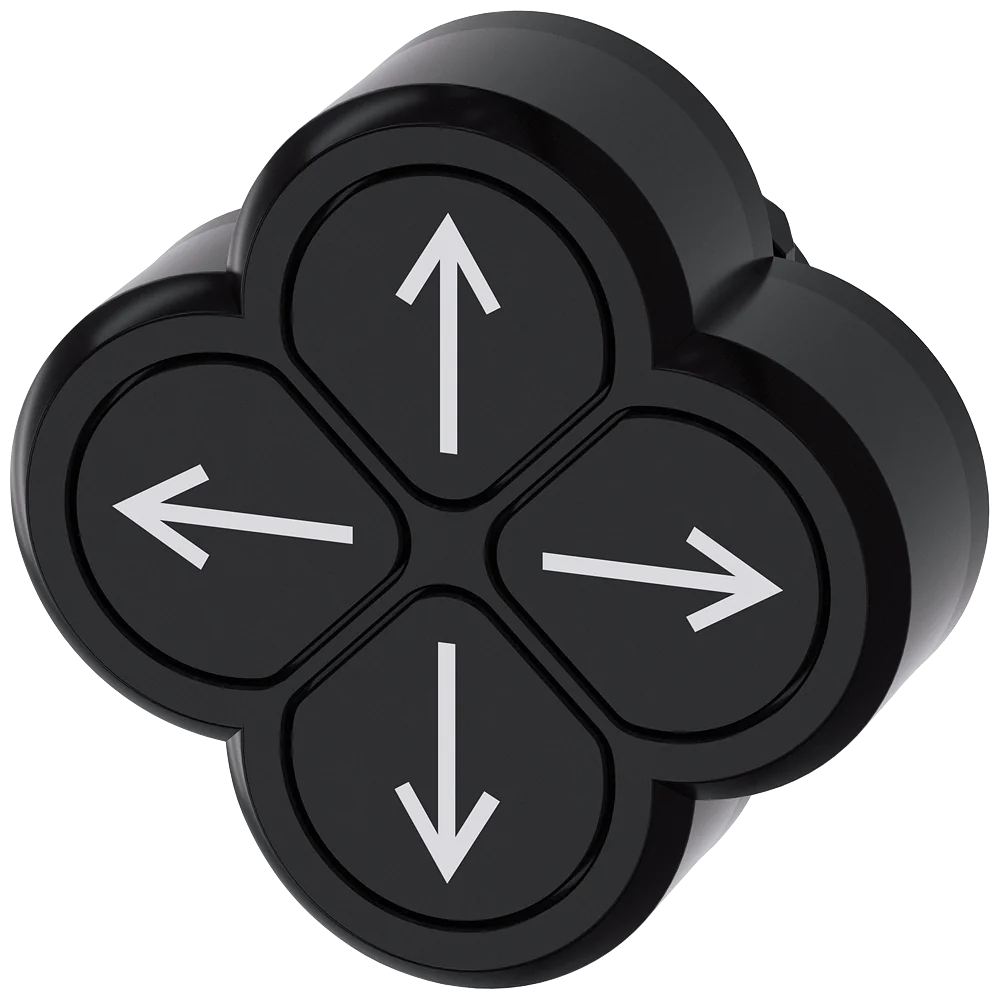

Siemens 3SU1000-3FB11-0AU0 3SU1 Pilot Device

product brand name
SIRIUS ACT
product designation
quadruple pushbutton
design of the product
Actuating/signaling element
product type designation
3SU1
product line
Plastic, black, 22 mm
EAN
4047621067735
Description

About the 3SU1

The Siemens 3SU1000-3FB11-0AU0 is a pilot device from the SENTRON/SIRIUS 3SU1 series. Quadruple pushbutton, 22 mm, round, plastic, black, pushbuttons, flat, Symbol: Arrow pointing left, right, up and down. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SU1000-3FB11-0AU0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SU1 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

66 values · Last verified 30 Oct 2026

General 5

product brand name SIRIUS ACT
product designation quadruple pushbutton
design of the product Actuating/signaling element
product type designation 3SU1
product line Plastic, black, 22 mm

Enclosure 1

number of command points 4

Actuator 8

design of the actuating element without mechanical interlock
principle of operation of the actuating element momentary contact type
product extension optional: light source No
product extension optional: contact module Yes
color of the actuating element black
material of the actuating element plastic
shape of the actuating element Clover-leaf
outer diameter of the actuating element 57.6 mm
Show all 66 specifications ↓ Show less ↑52 more values in Identification, Front ring, General technical data, Safety related data, IEC 61508, Ambient conditions, Installation/ mounting/ dimensions, Environmental footprint, Approvals Certificates, Logistics.

Identification 10

Part number 3SU1000-3FB11-0AU0
Type designation 3SU1
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621067735
ETIM class EC000221
eCl@ss 27371210

Front ring 4

product component front ring Yes
design of the front ring standard
material of the front ring plastic
color of the front ring black

General technical data 8

protection class IP IP65, IP66
degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X
shock resistance: according to IEC 60068-2-27 sinusoidal half-wave 15 g / 11 ms
vibration resistance: according to IEC 60068-2-6 10 ... 500 Hz: 5 g
operating frequency maximum 2 400 1/h
mechanical service life (operating cycles): typical 200 000
reference code according to IEC 81346-2 S
Substance Prohibitance (day/month/year) 10/01/2014

IEC 61508 1

T1 value for proof test interval or service life according to IEC 61508 20 a

Ambient conditions 3

ambient temperature: during operation -25 ... +70 °C
ambient temperature: during storage -40 ... +80 °C
environmental category during operation according to IEC 60721 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions 8

height 57.6 mm
width 57.6 mm
shape of the installation opening round
mounting diameter 22.3 mm
positive tolerance of installation diameter 0.4 mm
mounting height 18 mm
installation width 57.6 mm
installation depth 25.9 mm

Environmental footprint 6

Environmental Product Declaration(EPD) Yes
global warming potential [CO2 eq] total 0.787 kg
global warming potential [CO2 eq] during manufacturing 0.566 kg
global warming potential [CO2 eq] during operation 0.235 kg
global warming potential [CO2 eq] after end of life -0.015 kg
Siemens eco profile (SEP) Siemens EcoTech

Approvals Certificates 1

Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing 0.566 kg

Logistics 7

Net weight 0.045 kg
Package dimensions 100 × 60 × 60 mm
Country of origin CN
Shipping weight 0.545 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
