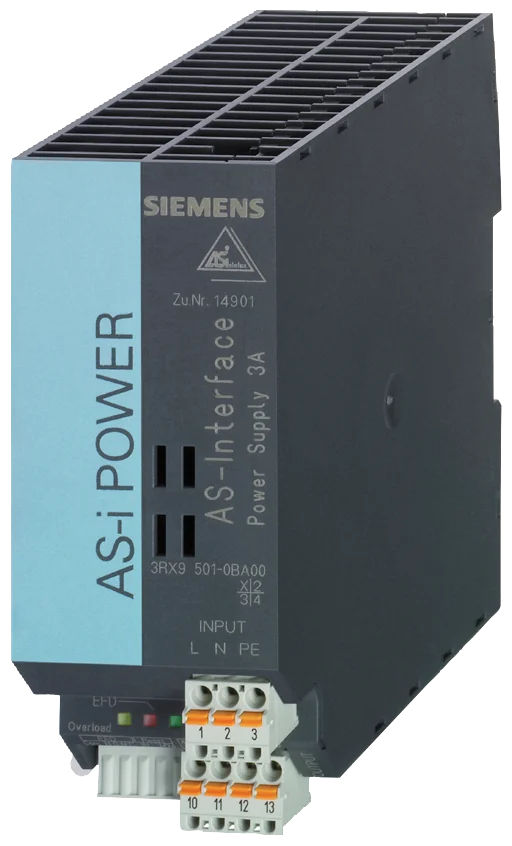

3RX9Siemens 3RX9501-1BA00 3RX9 3A 24V Power Supply
Description
About the 3RX9501-1BA00
About the 3RX9501-1BA00
The Siemens 3RX9501-1BA00 is a power supply from the SENTRON/SIRIUS 3RX9 series. AS-i Power 3 A 24 V DC AS-Interface power supply unit, IP20 IN: 24 V DC OUT: AS-i, 3 A (30 V DC), IP20 with integrated ground fault detection, with integrated overload detection with AS-i data decoupling. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3RX9501-1BA00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3RX9 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General technical data 1
| input voltage at DC | V 24 |
|---|
Inputs 1
| input voltage at DC | V 20 ... 29 |
|---|
Efficiency/ heat loss 1
| power loss [W] maximum | W 17.8 |
|---|
Show all 26 specifications ↓ Show less ↑23 more values in Identification, Ambient conditions, Approvals Certificates, Logistics.
Identification 9
| Part number | 3RX9501-1BA00 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209646964 |
| ETIM class | EC002583 |
| eCl@ss | 27242611 |
Ambient conditions 6
| ambient temperature: during operation | °C -10 ... +70 |
|---|---|
| ambient temperature: during storage | °C -25 ... +80 |
| fastening method fixing on standard mounting rail DIN EN 59 022-35 x 7.5 mm | snap-on |
| width | mm 50 |
| height | mm 125 |
| depth | mm 125 |
Approvals Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 20.7 kg |
|---|
Logistics 7
| Net weight | 0.559 kg |
|---|---|
| Package dimensions | 142 × 137 × 60 mm |
| Country of origin | Romania |
| Shipping weight | 1.059 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3RX9501-1BA00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3RX9501-1BA00
What is the rated current of 3RX9501-1BA00?
The rated current of 3RX9501-1BA00 is 3 A.
Which supply voltage is 3RX9501-1BA00 rated for?
The rated operational voltage of 3RX9501-1BA00 is 24 V AC.
What is the EAN of 3RX9501-1BA00?
The EAN (GTIN) of 3RX9501-1BA00 is 4011209646964.
Where does 3RX9501-1BA00 ship from, and how fast?
3RX9501-1BA00 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
