Schneider Electric ZB5RTA331 Harmony XB5R Wireless Push Button Green 22 mm Marked I Push Button

% $-96.00

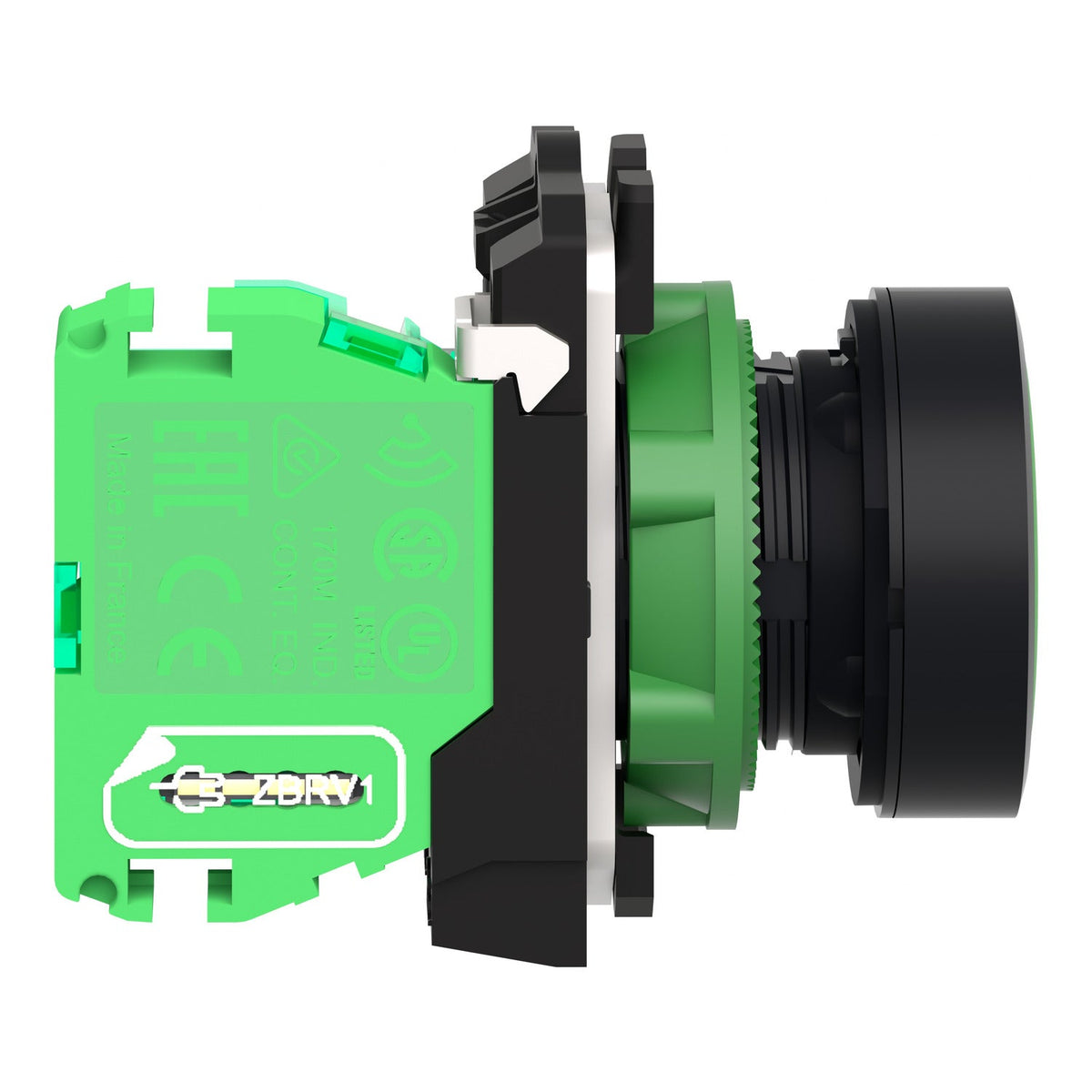

Schneider Electric ZB5RTA331 Harmony XB5R wireless push button green
Schneider Electric ZB5RTA331 Harmony XB5R wireless push button green

Schneider Electric ZB5RTA331 Harmony XB5R Wireless Push Button Green 22 mm Marked I Push Button

Brand: Schneider Electric
Reference No: ZB5RTA331
Catalog No: ZB5RTA331
Series: Harmony XB5
Tariff Code (HS): 853650
Communication: Zigbee Green Power 2.4 GHz (IEEE 802.15.4)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$96.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB5RTA331 is a Harmony XB5R wireless and batteryless push button: a green 22 mm spring-return head with a built-in Zigbee Green Power transmitter, needing no wiring and no battery. Pressing it sends a radio frame up to 100 m to a Harmony receiver such as ZBRRA or ZBRRC.

Technical Specifications

Reference ZB5RTA331
Brand Schneider Electric
Range of Product Harmony XB5
GTIN 3606480334603
Product or Component Type Wireless and batteryless transmitter
Device short name XB5R
Bezel material Dark grey plastic
Mounting diameter 22 mm
Type of operator Spring return push-button with transmitter
Operator profile Green flush, I white
Communication port protocol Zigbee Green Power 2.4 GHz (IEEE 802.15.4)
Transmission frequency 2405 MHz
Number of channels 16
Emission power 3 mW
Maximum sensing distance 100 m free field; up to 300 m with relay antenna ZBRA1
Response time < 2 ms
Overall dimensions (W x H x D) 30 x 41.5 x 43 mm
Net weight 0.045 kg
IP degree of protection IP66 / IP67 / IP69 / IP69K (front face)
Ambient air temperature, operation -40...70 °C
Mechanical durability Free fall resistance 1000 mm (IEC 60068-2-32)

Certifications & Standards

  • IEC 60947-1
  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • GOST
  • C-tick
  • BT 2006/95/EC

Selection Notes

Because it is energy-harvesting (the button press itself powers the radio frame), this device needs no cable run and no battery replacement — useful for mobile equipment, rotating machinery or retrofits where pulling wire is impractical. The I marking identifies it for the corresponding function in a two-button station. Pair it with a ZBRRA or ZBRRC receiver (and a ZBRA1 relay antenna if the run exceeds 100 m) to complete the control loop.

Technical Details

Short Description
Harmony XB5R wireless batteryless push button, green, 22 mm, Zigbee Green Power.
Mounting Type
22 mm panel mount
Protection Type
IP66 / IP67 / IP69 / IP69K
Catalog No
ZB5RTA331
Delivery Date (Days)
30 days
Model Number
XB5R
Tariff Code
853650
