Schneider Electric ZB5AA5 Harmony XB5 Push Button Head Plastic Yellow 22 mm Flush Spring Return Push Button

% $-2.43

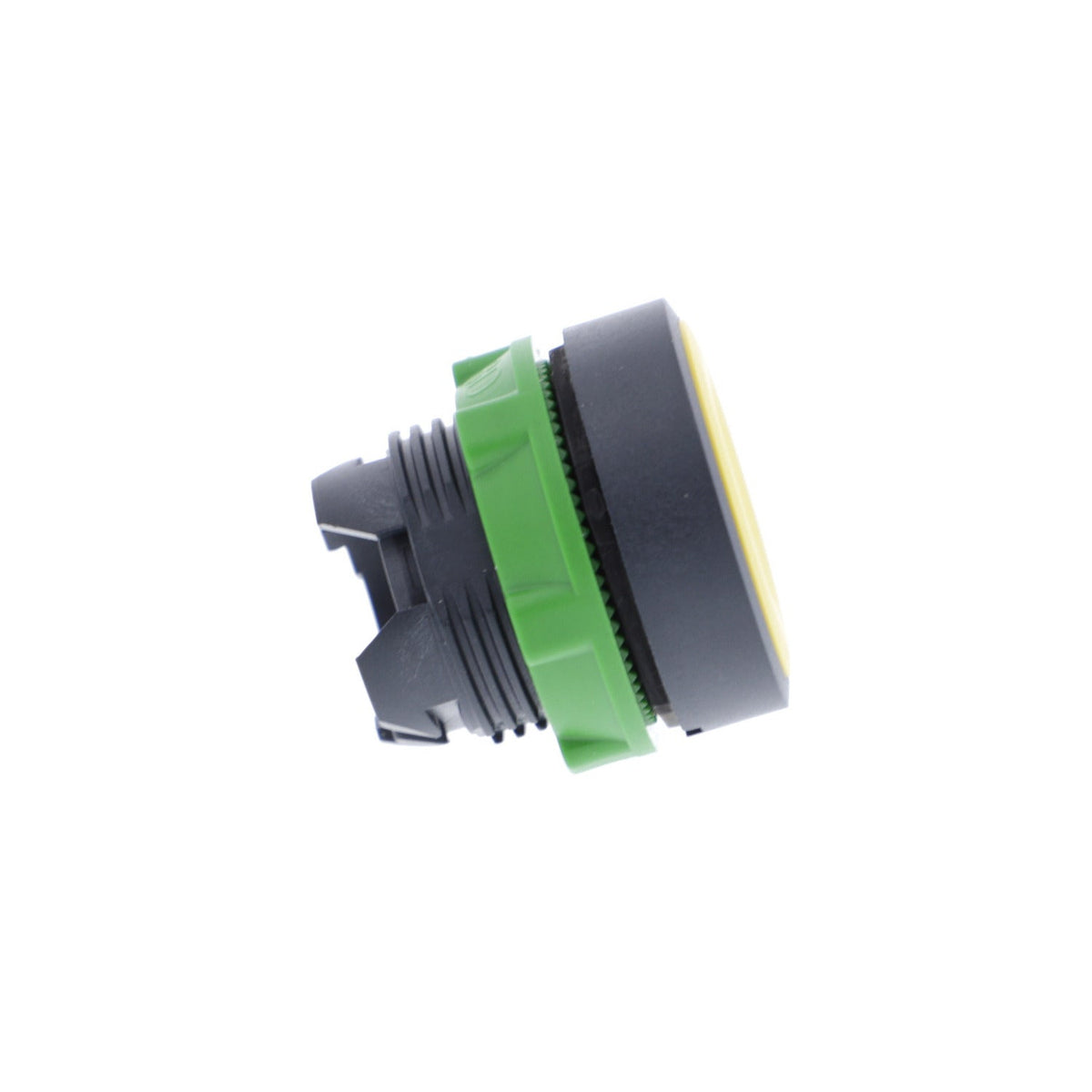

Schneider Electric ZB5AA5 Harmony XB5 Push Button Head - Yellow
Schneider Electric ZB5AA5 Harmony XB5 Push Button Head - Yellow

Schneider Electric ZB5AA5 Harmony XB5 Push Button Head Plastic Yellow 22 mm Flush Spring Return Push Button

Brand: Schneider Electric
Reference No: ZB5AA5
Catalog No: ZB5AA5
Series: Harmony XB5
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2.43

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ZB5AA5 is a Harmony XB5 non-illuminated push-button head molded in dark grey plastic with a yellow unmarked flush cap, operating on a spring-return mechanism. It snaps onto a compatible XB5 contact body and mounts in a standard 22 mm cutout to form a complete pushbutton station.

Technical Specifications

Reference ZB5AA5
GTIN 3389110904734
Brand Schneider Electric
Range Harmony XB5
Product or Component Type Head for non-illuminated push-button
Device Short Name ZB5
Bezel Material Dark grey plastic
Mounting Diameter 22 mm
Head Type Standard
Shape of Signaling Unit Head Round
Type of Operator Spring return
Operator Profile Yellow flush, unmarked
Overall Dimensions (W x H x D) 29 x 29 x 28 mm
Net Weight 0.018 kg
IP Degree of Protection IP66, IP67, IP69, IP69K
Enclosure Type UL Type 4X/13
IK Degree of Protection IK03 (IEC 50102)
Overvoltage Category Class II (IEC 60536)
Ambient Air Temperature (Storage / Operation) -40...70 C

Certifications & Standards

  • IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14

Selection Notes

A plain yellow flush cap with no legend relies on color convention rather than text, so it suits a panel where the operator already associates that color with a specific action, or where multilingual operators make a printed legend less useful than a consistent color code. The flush profile sits level with the bezel, reducing the chance of accidental actuation compared to a projecting operator in the same mounting diameter.

Technical Details

Short Description
Harmony XB5 push button head, yellow unmarked, plastic, spring return, 22 mm.
Mounting Type
22 mm panel cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
ZB5AA5
Delivery Date (Days)
30 days
Model Number
Harmony XB5
Tariff Code
853650
