Harmony XB5Schneider Electric ZB5FA434 Harmony XB5 Push Button Head Red 30 mm Spring Return Marked STOP Push Button
Harmony XB5 push button head, red, 30 mm, spring return, marked STOP.
Description
About the ZB5F
About the ZB5F

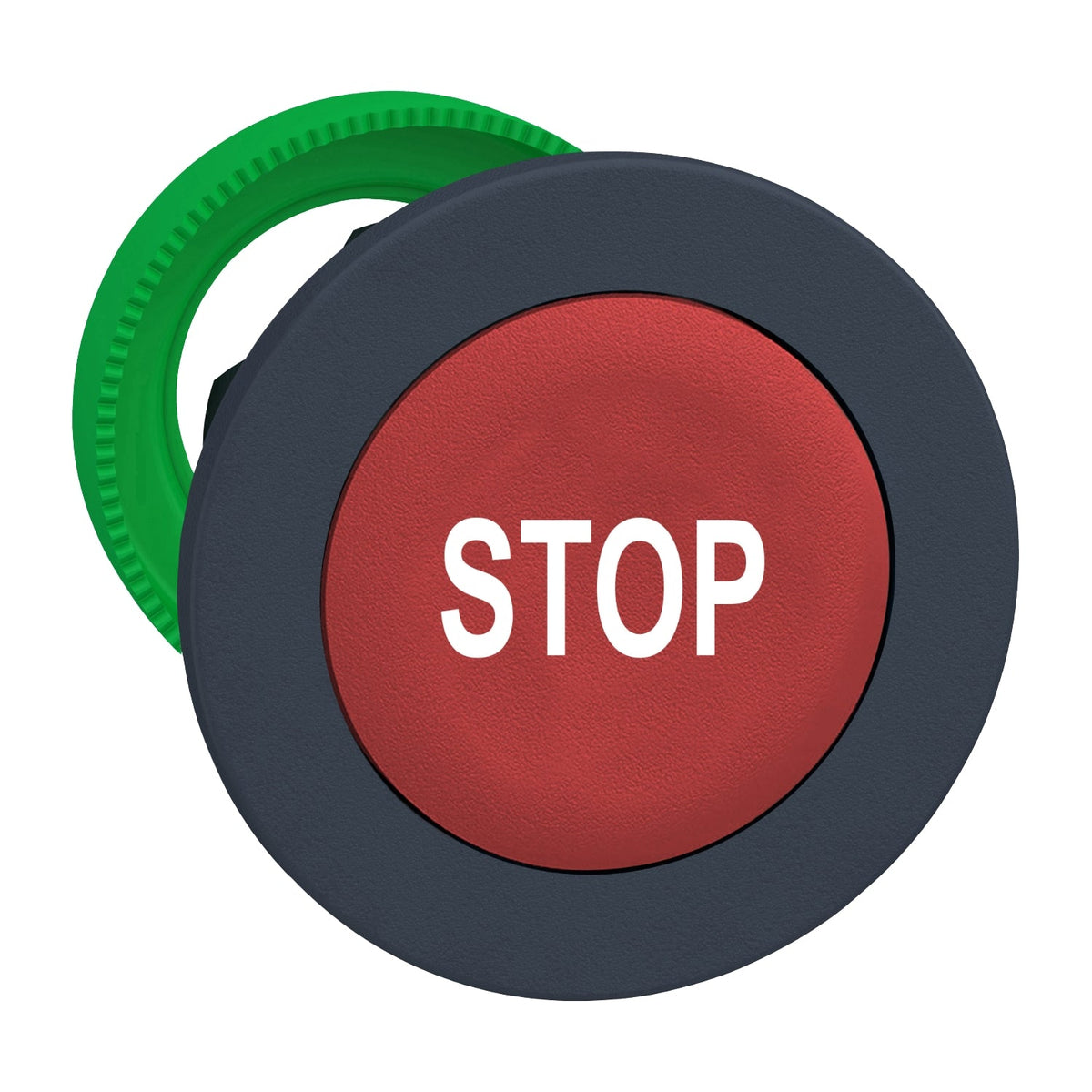

The Schneider Electric ZB5FA434 is a Harmony XB5 push-button head: a red 30.5 mm flush spring-return cap marked STOP in white. It mounts on a ZB5F body or contact block to complete a non-illuminated push button rated IP66/IP67/IP69K for washdown panels, with IK03 impact resistance and a dark grey bezel.
Certifications & Standards
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-4
- UL 508
- CSA
- CCC
- EAC
- CE
- ISO 22196:2011
Selection Notes
The STOP marking makes this head a direct fit for standard stop stations without adding a separate legend plate. Being spring return, it is not suitable where a maintained (latching) contact is required — pick the corresponding ZB5F latching head for that case. Antimicrobial treatment on the cap is a plus in food and pharma panels but is not a certified medical claim.
Specification
Full specification
Main 11
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5F |
| Product Compatibility | ZBYF..., ZBZF32, ZBZF33, ZB5AZ |
| Bezel material | Dark grey plastic |
| Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red flush, STOP white) |
Complementary 6
| CAD overall width | 1.5 in (37 mm) |
|---|---|
| CAD overall height | 1.5 in (37 mm) |
| CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.07 lb(US) (0.03 kg) |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1 |
| Product Certifications | UL Listed, CSA, CCC, EAC |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
Show all 47 specifications ↓ Show less ↑19 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB5FA434 |
|---|---|
| Type designation | ZB5F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481361370 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 10
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 2.047 in (5.200 cm) |
| Package 1 Length | 1.693 in (4.300 cm) |
| Package weight(Lbs) | 0.847 oz (24.000 g) |
| Shipping weight | 0.03 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
