- Part number
- ZB5FA333
- Model no
- ZB5F
- UL
- CSA
- CCC
- EAC

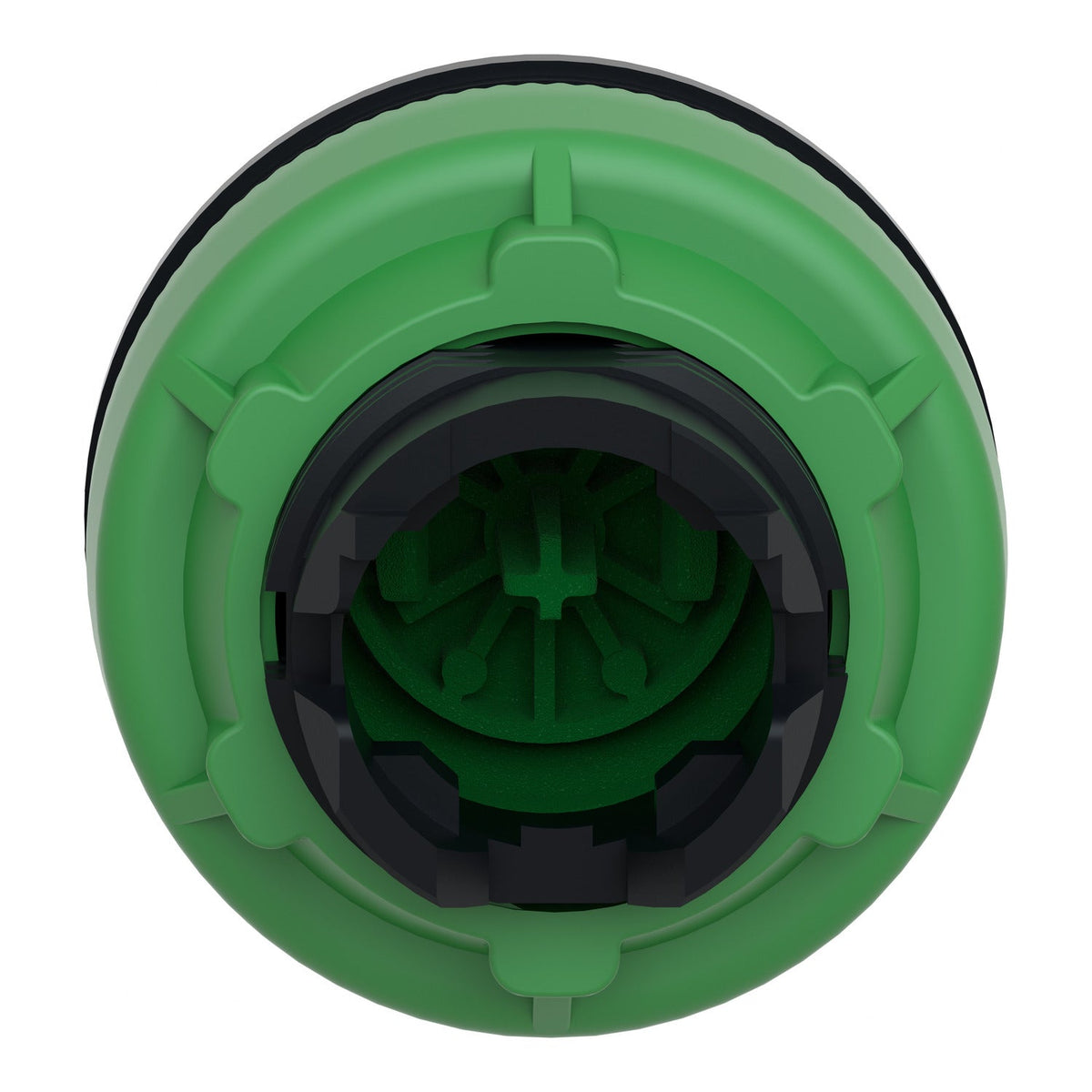

Harmony XB5Schneider Electric ZB5FA333 Harmony XB5 Push Button Head Green 30 mm Spring Return Marked START Push Button
Harmony XB5 push button head, green, 30 mm, spring return, marked START.
Description
About the ZB5F
About the ZB5F
The Schneider Electric ZB5FA333 is a Harmony XB5 push-button head: a green 30.5 mm flush spring-return cap marked START in white. It mounts on a ZB5F body or contact block to complete a non-illuminated push button rated IP66/IP67/IP69K for washdown panels, with an antimicrobial cap surface and IK03 impact resistance.
Certifications & Standards
- IEC 60947-1
- IEC 60947-5-1
- IEC 60947-5-4
- UL 508
- CSA
- CCC
- EAC
- CE
- ISO 22196:2011
Selection Notes
The START marking makes this head a direct fit for standard start stations without adding a separate legend plate. Being spring return, it is not suitable where a maintained (latching) contact is required — pick the corresponding ZB5F latching head for that case. Antimicrobial treatment on the cap is a plus in food and pharma panels but is not a certified medical claim.
Specification
Full specification
Main 11
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5F |
| Product Compatibility | ZBYF..., ZBZF32, ZBZF33, ZB5AZ |
| Bezel material | Dark grey plastic |
| Mounting diameter | 1.2 in (30.5 mm) |
| Head type | Built-in-flush |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green flush, START white) |
Complementary 6
| CAD overall width | 1.5 in (37 mm) |
|---|---|
| CAD overall height | 1.5 in (37 mm) |
| CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.07 lb(US) (0.03 kg) |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1, ISO 21702, ISO 22196:2011 |
| Product Certifications | UL Listed, CSA, CCC, EAC |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
Show all 59 specifications ↓ Show less ↑31 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB5FA333 |
|---|---|
| Type designation | ZB5F |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481361271 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.693 in (4.300 cm) |
| Package 1 Width | 2.087 in (5.300 cm) |
| Package 1 Length | 2.165 in (5.500 cm) |
| Package weight(Lbs) | 0.847 oz (24.000 g) |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 5.9 in (15 cm) |
| Package 2 Width | 5.9 in (15 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 27.337 oz (775.000 g) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 72.314 lb(US) (32.801 kg) |
| Shipping weight | 0.03 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for ZB5FA333
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CCC
- EAC
- CSA C22.2 No 14
- IEC 60947-5-1
- IEC 60947-5-4
- UL 508
- IEC 60947-1
- JIS C8201-5-1
- CE
- JIS C8201-1
- ISO 21702
- ISO 22196:2011
Quick answers
Questions about the ZB5F
What is the HS code of ZB5F for customs?
The tariff (HS) code on file for ZB5F is 853650.
What is the EAN of ZB5F?
The EAN (GTIN) of ZB5F is 3606481361271.
Where does ZB5F ship from, and how fast?
ZB5F ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
