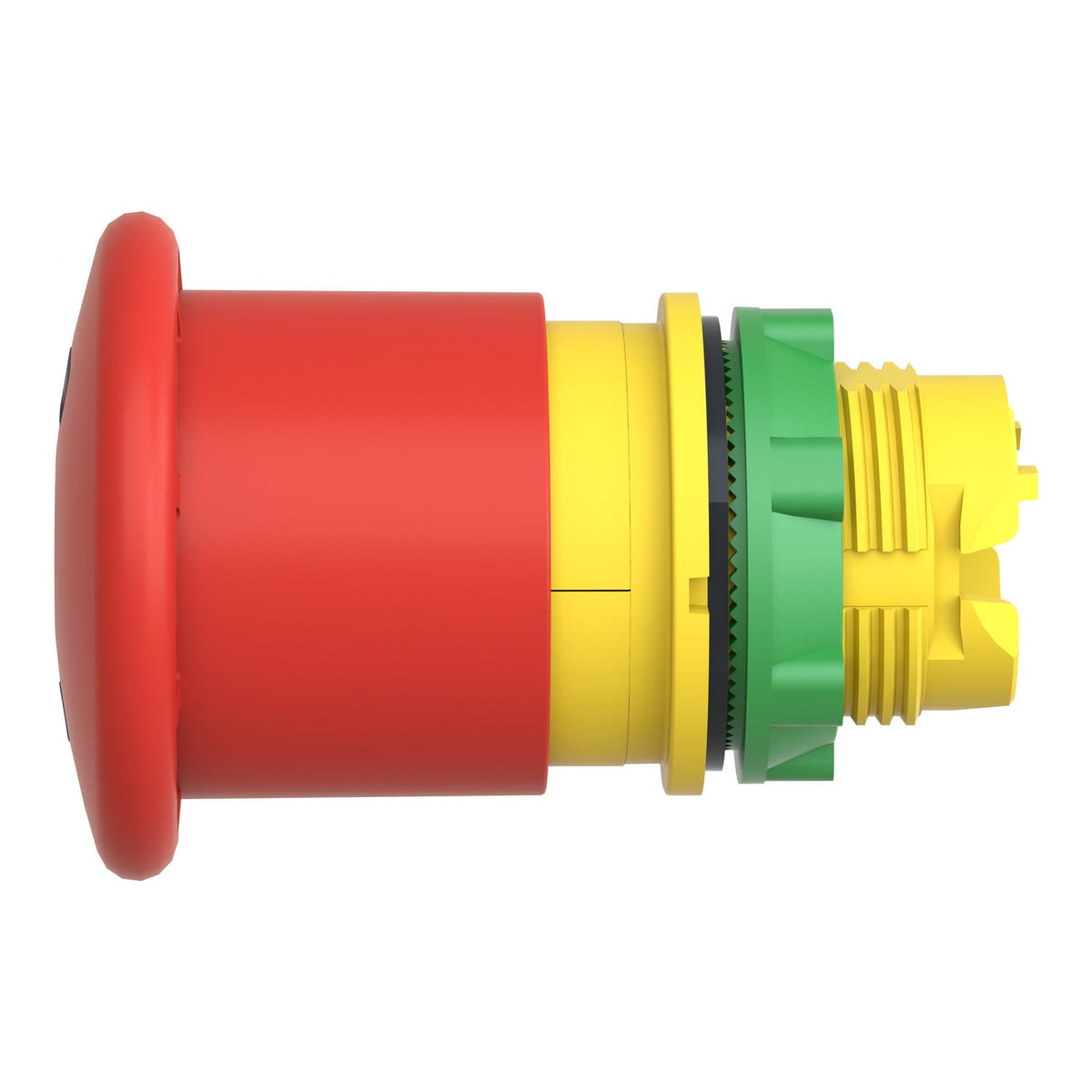

Schneider Electric ZB5AT8643M Harmony XB5 Emergency Stop Head Red 40 mm Push-Pull Emergency Stop Push Button

Harmony XALF/XB5 illuminated emergency stop head, red mushroom 40 mm, push-pull, state indicator.

Range of Product
Harmony XALF, Harmony XB5
Product or Component Type
Head for illuminated emergency stop push-button
Device short name
ZB5
Bezel material
Dark grey plastic
Head type
Standard
Mounting diameter
0.9 in (22.5 mm)
EAN
3389119003766
Description

About the ZB5

The Schneider Electric ZB5AT8643M is a Harmony XALF/XB5 illuminated emergency-stop head with a red, 40 mm, unmarked mushroom in plastic, built for an integral-LED light block. It latches mechanically with a built-in mechanical state indicator and releases with a push-pull action, mounting in a 22 mm panel cutout ahead of a compatible contact body.

Certifications & Standards

  • CSA
  • DNV
  • BV
  • LROS
  • UL Listed
  • GB 14048.5
  • UL 508
  • ISO 13850
  • IEC 60204-1
  • CSA C22.2 No 14
  • IEC 60947-1
  • JIS C8201-5-1
  • IEC 60947-5-4
  • IEC 60947-5-1
  • JIS C8201-1
  • IEC 60947-5-5

Selection Notes

The mechanical state indicator shows whether the mushroom is latched or released even with the LED unpowered, which is a real advantage over a purely electrical indicator on a station where control power may be off while the e-stop itself still needs to be checked. The plastic bezel and IP54 rating put it a step below the metal ZB4BW643's IP66/IP69K for washdown duty, so reserve it for general indoor panels where chemical resistance and lighter weight matter more than hose-down sealing.

Specification

Full specification

47 values · Last verified 30 Oct 2026

Main 12

Range of Product Harmony XALF, Harmony XB5
Product or Component Type Head for illuminated emergency stop push-button
Device short name ZB5
Bezel material Dark grey plastic
Head type Standard
Mounting diameter 0.9 in (22.5 mm)
Sale per indivisible quantity 1
Shape of signaling unit head Round
Type of operator mechanical latching with mechanical state indicator
Reset Push-pull
Operator profile Red mushroom Ø 40 mm, unmarked
Device presentation Basic element

Complementary 9

CAD overall width 1.6 in (40 mm)
CAD overall height 1.6 in (40 mm)
CAD overall depth 2.3 in (59 mm)
Net Weight 0.075 lb(US) (0.034 kg)
Mechanical durability 300000 cycles
Station name XALD 1 cut-out, XALK 1 cut-out
Electrical composition code M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED
Product Compatibility Integral LED
Compatibility code ZB5

Environment 12

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
Overvoltage category Class II conforming to IEC 60536
IP degree of protection IP54 IEC 60529
Enclosure Type UL type 4X/13
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection IK05 conforming to IEC 50102
Standards GB 14048.5, UL 508, ISO 13850, IEC 60204-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1, IEC 60947-5-5
Product Certifications CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Show all 47 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ZB5AT8643M
Type designation ZB5
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119003766

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CZ
Shipping weight 0.034 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
