Part number
ZBY9W2B330
$47.76 On request Dispatch — · From TürkiyeGet a Quote
Harmony

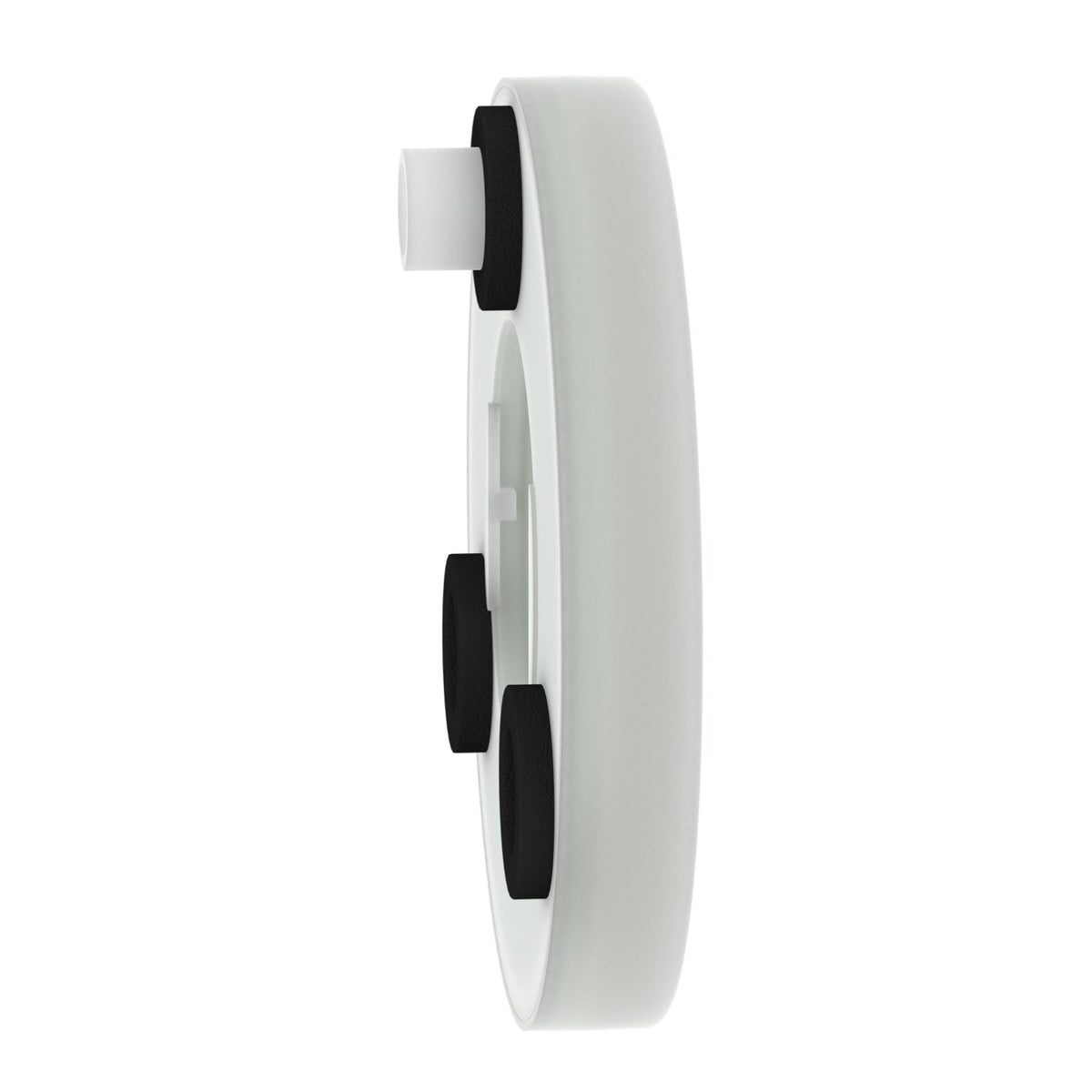

Schneider Electric ZBY9W2B330 Illuminated Legend Ring 60 mm Red LED EMERGENCY STOP 24 V Automation Component

60 mm illuminated legend ring, red LED, EMERGENCY STOP, 24 V AC/DC, for Harmony XB5.

Rated operational voltage
24–DC V DC
EAN
3606489745141
Description

About the ZBY9W2B330

The Schneider Electric ZBY9W2B330 is a 60 mm illuminated legend ring marked EMERGENCY STOP, fitted around a Harmony XB4/XB5 mushroom-head emergency-stop push button. It carries a protected LED that lights steady red on a 24 V AC/DC supply, adding a visible status cue to the yellow background legend without changing the push button's own wiring.

Certifications & Standards

  • UL Listed
  • CSA
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • JIS C8201-1

Selection Notes

The IP66/IP67/IP69/IP69K rating means this ring tolerates high-pressure washdown, so it suits food, beverage and outdoor equipment panels as well as general machinery. Pick the fixed single-colour red version when the ring only needs to confirm the stop legend is present; a dual-colour version is the right choice where the ring must also flag a fault or status change by switching LED colour.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 11

Range of Product Harmony
Product or Component Type Illuminated marked legend ring
Sale per indivisible quantity 1
Shape of signaling unit head Round
Cap/operator or lens colour Red
Operator additional information With illuminated ring
Light source Protected LED
Bulb base Integral LED
Light source colour Red
[Us] rated supply voltage 24 V AC/DC 50/60 Hz
Device presentation Intermediate ring

Complementary 17

Accessory / separate part destination Emergency stop mushroom head push-button
Material Plastic
Marking Black EMERGENCY STOP yellow
Label dimensions Ø 60 mm
User Language English
Height 2.4 in (60 mm)
Width 0.4 in (9.3 mm)
Net Weight 0.035 lb(US) (0.016 kg)
Electrical insulation class Class II IEC 61140
Resistance to high pressure washer 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
[Ui] rated insulation voltage 24 V 3)IEC 60947-1
Signalling type Steady
Supply voltage limits 19.2…30 V DC, 21.6…26.4 V AC
Current Consumption 18 mA
Service life 100000 h at rated voltage and 25 °C
Surge withstand 1 kV IEC 61000-4-5
Compatibility code XB4, XB5

Environment 13

Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
IP degree of protection IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
IK degree of protection IK05 conforming to IEC 62262
Standards CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, JIS C8201-1
Product Certifications UL Listed, CSA
Vibration resistance 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Resistance to fast transients 2 kV IEC 61000-4-4
Resistance to electromagnetic fields 9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission Class B IEC 55011
Show all 54 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number ZBY9W2B330
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489745141

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.016 kg
Ships from Türkiye
Dispatch —
Stock On request
