- Part number
- GV2K031
- Model no
- GV2K
Description
About the GV2K
About the GV2K

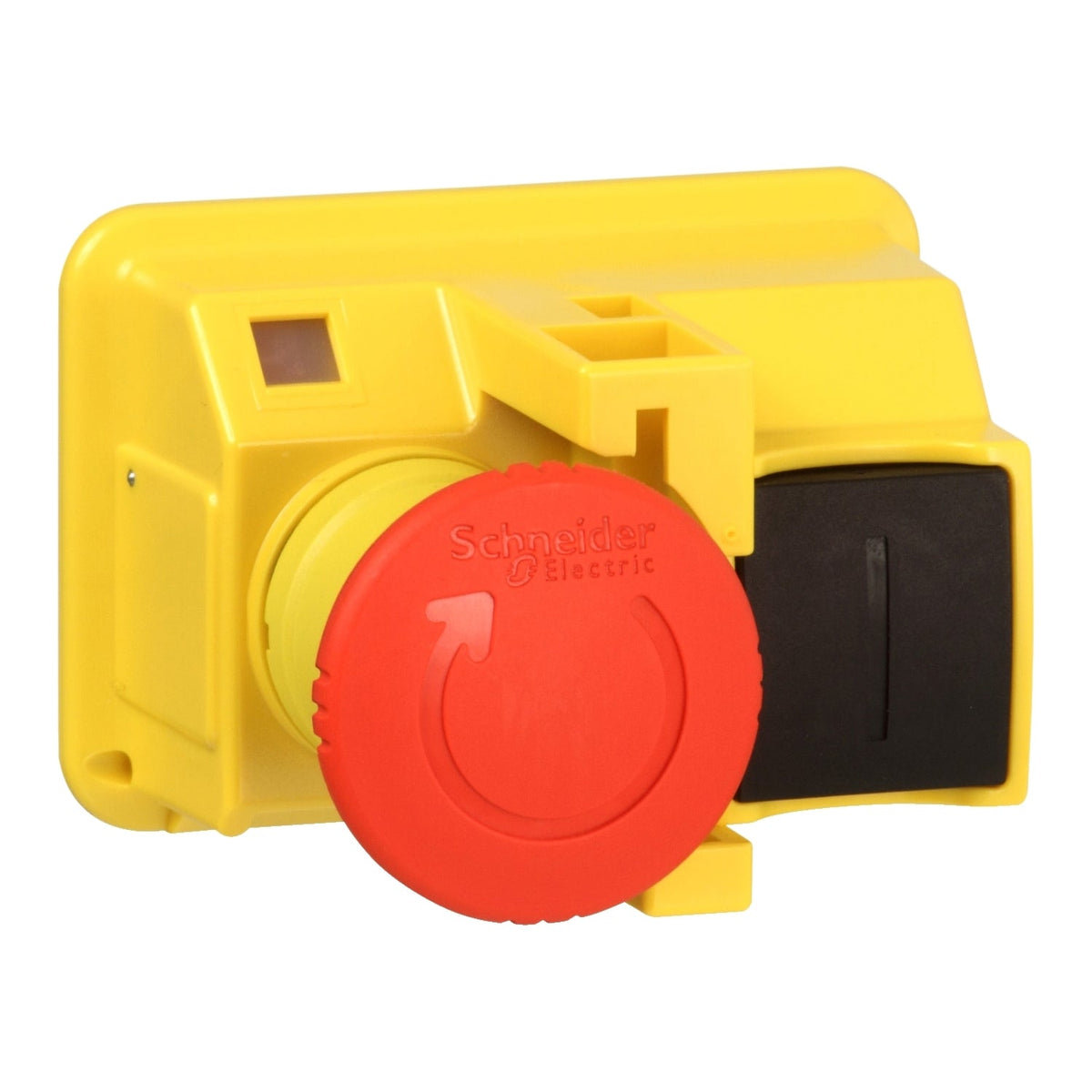

The Schneider Electric GV2K031 is a 40 mm red mushroom head emergency stop pushbutton for TeSys enclosed starters, with a latching, turn-to-release operator. It mounts on empty enclosures GV2MC, LE1GVMEK or GV2MP alongside a GV2ME thermal-magnetic circuit breaker, measures 48 x 73 mm, and ships with its own IP55 sealing kit already fitted.
Selection Notes
Specify the GV2K031 together with a GV2ME circuit breaker and a compatible empty enclosure (GV2MC, GV2MP or LE1GVMEK) when the starter assembly needs a panel-mounted emergency stop; the bundled IP55 sealing kit keeps the enclosure's protection rating intact once the pushbutton is fitted.
Specification
Full specification
Main 5
| Range | TeSys |
|---|---|
| Product name | GV2, LE |
| Product or Component Type | Mushroom head emergency stop push-button |
| Device short name | GV2K |
| Accessory / separate part category | Enclosure accessory |
Complementary 8
| Product Compatibility | GV2MC, LE1GVMEK, GV2MP |
|---|---|
| Type of operator | Latching turn to release |
| Diameter | 1.6 in (40 mm) |
| Provided Equipment | 1 IP55 sealing kit |
| Height | 1.9 in (48 mm) |
| Width | 2.9 in (73 mm) |
| Net Weight | 0.254 lb(US) (0.115 kg) |
| color | Red |
Environment 1
| IP degree of protection | IP55 |
|---|
Show all 28 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | GV2K031 |
|---|---|
| Type designation | GV2K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110733471 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CZ |
|---|---|
| Shipping weight | 0.115 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for GV2K031
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the GV2K
What is the HS code of GV2K for customs?
The tariff (HS) code on file for GV2K is 853890.
What is the EAN of GV2K?
The EAN (GTIN) of GV2K is 3389110733471.
Where does GV2K ship from, and how fast?
GV2K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
