- Part number
- ZB5AA0
- Model no
- ZB5
Description
About the ZB5
About the ZB5

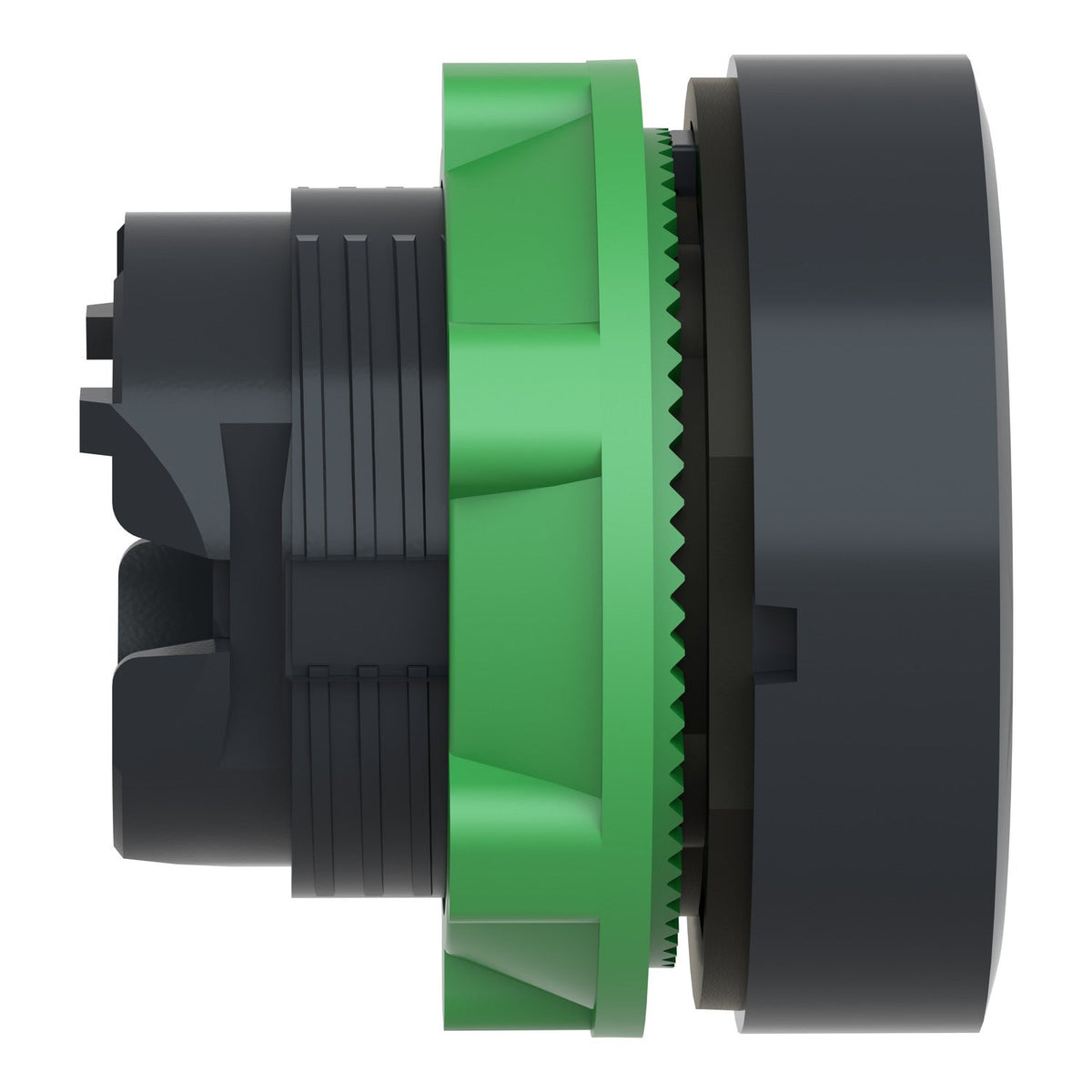

The Schneider Electric ZB5AA0 is a Harmony XB5 non-illuminated push-button head molded in dark grey plastic with without a cap, ready to accept any compatible snap-on cap, operating on a spring-return mechanism. It snaps onto a compatible XB5 contact body and mounts in a standard 22 mm cutout to form a complete pushbutton station.
Certifications & Standards
- DNV
- CSA
- BV
- LROS
- UL Listed
- IEC 60947-5-4
- UL 508
- JIS C8201-5-1
- IEC 60947-1
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-1
Selection Notes
Sold without a cap, this reference exists so a panel builder can standardize on one bare head and fit it with whichever colored or marked cap the station calls for at final assembly, instead of stocking a separate complete head per color. It still carries the full spring-return operator mechanism and 22 mm mounting diameter of the capped XB5 heads, so it drops into the same contact bodies without any other change.
Specification
Full specification
Main 10
| Range of Product | Harmony XB5 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | without cap |
Complementary 7
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.1 in (28 mm) |
| Net Weight | 0.049 lb(US) (0.022 kg) |
| Mechanical durability | 10000000 cycles |
| Station name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Electrical composition code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting |
Environment 12
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-4, UL 508, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1 |
| Product Certifications | DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
Show all 43 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB5AA0 |
|---|---|
| Type designation | ZB5 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110904352 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.022 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
