Schneider Electric ZB4FA434 Harmony XB4 Push Button Head - Red STOP

Schneider Electric ZB4FA434 Harmony XB4 Push Button Head Metal Red 30 mm Spring Return STOP Push Button

Name: Schneider Electric ZB4FA434 Harmony XB4 Push Button Head Metal Red 30 mm Spring Return STOP Push Button
Brand: Schneider Electric
SKU: ZB4FA434
Price: 23.86 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: ZB4FA434

Catalog No: ZB4FA434

Series: Harmony XB4

Tariff Code (HS): 853650

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$23.86

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

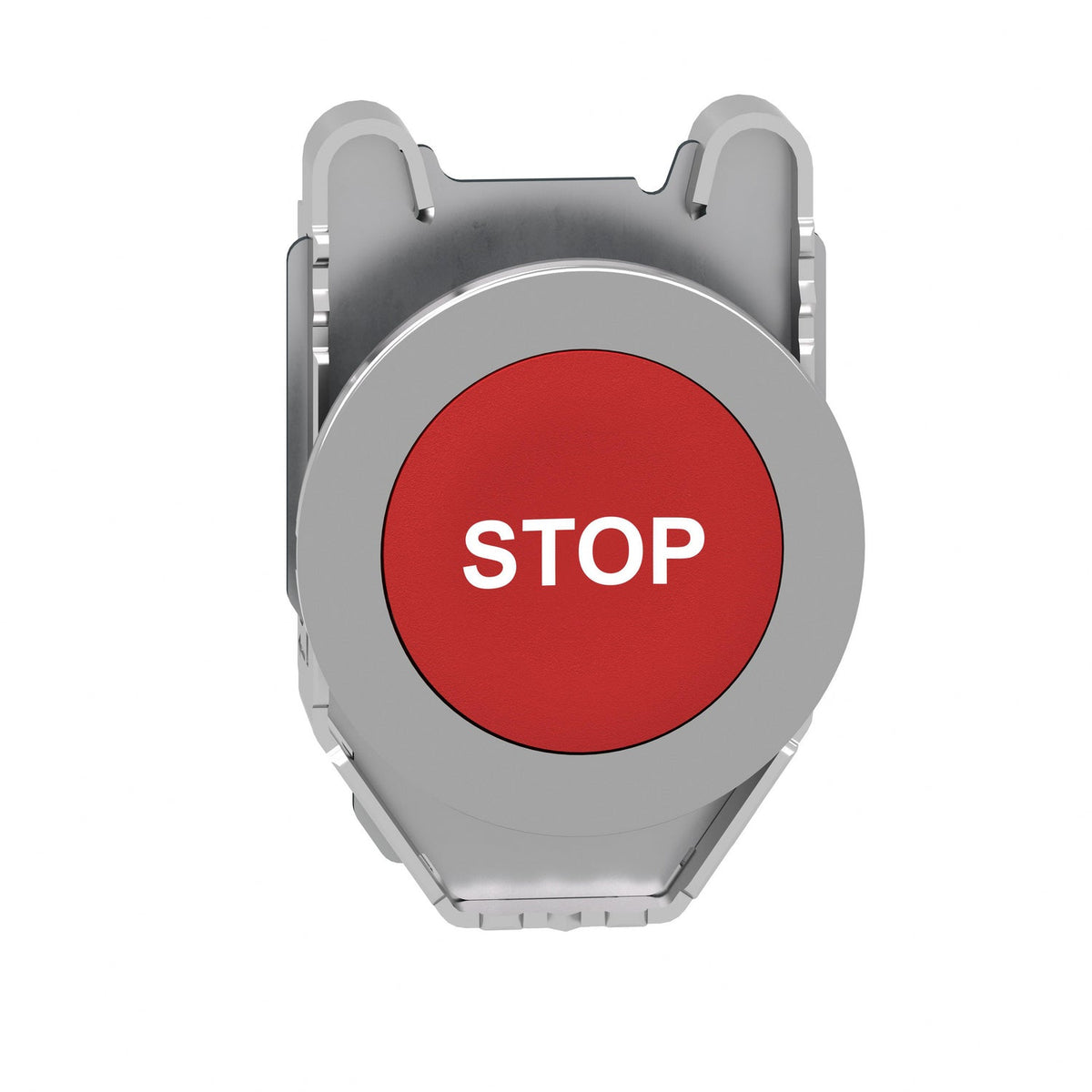

The Schneider Electric ZB4FA434 is a Harmony XB4F push-button head, flush-mounted in chromium-plated metal, red with a white STOP legend. It operates on a spring-return mechanism and mounts in a 30.5 mm cutout, snapping onto compatible XB4F contact blocks to form a complete pushbutton.

Technical Specifications

Reference	ZB4FA434
GTIN	3606489581084
Brand	Schneider Electric
Range	Harmony XB4
Product or Component Type	Head for non-illuminated push-button
Device Short Name	ZB4F
Bezel Material	Chromium plated metal
Mounting Diameter	30.5 mm
Head Type	Built-in-flush
Shape of Signaling Unit Head	Round
Type of Operator	Spring return
Operator Profile	Red flush, STOP white
Overall Dimensions (W x H x D)	36.6 x 36.6 x 31 mm
IP Degree of Protection	IP66, IP67, IP69, IP69K
Enclosure Type	UL Type 13, 12, 4, 4X
IK Degree of Protection	IK06 (IEC 50102)
Overvoltage Category	Class I (IEC 60536)
Ambient Air Temperature (Storage / Operation)	-40...70 C

Certifications & Standards

IEC 60947-5-1
UL 508
CSA C22.2 No 14
CE

Selection Notes

The STOP legend makes the button's function unambiguous at the panel, which matters because the 30.5 mm mounting diameter is a larger-format cutout than the common 22 mm XB4/XB5 range, typically reserved for a primary halt a sequence without acting as a certified emergency stop control that an operator needs to find without searching. The chromium-plated metal bezel and IP69K rating suit washdown or outdoor enclosures better than an equivalent plastic head.

Technical Details

Short Description

Harmony XB4 push button head, red, metal, 30.5 mm, flush, marked STOP.

Mounting Type

30.5 mm panel cutout

Protection Type

IP66, IP67, IP69, IP69K

Catalog No

ZB4FA434

Delivery Date (Days)

30 days

Model Number

Harmony XB4

Tariff Code

853650
