Schneider Electric ZB4FA333 Harmony XB4 Push Button Head Metal Green 30 mm Spring Return START Push Button

% $-23.86
Schneider Electric ZB4FA333 Harmony XB4 Push Button Head - Green START
Schneider Electric ZB4FA333 Harmony XB4 Push Button Head - Green START

Schneider Electric ZB4FA333 Harmony XB4 Push Button Head Metal Green 30 mm Spring Return START Push Button

Brand: Schneider Electric
Reference No: ZB4FA333
Catalog No: ZB4FA333
Series: Harmony XB4
Tariff Code (HS): 853650
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$23.86

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

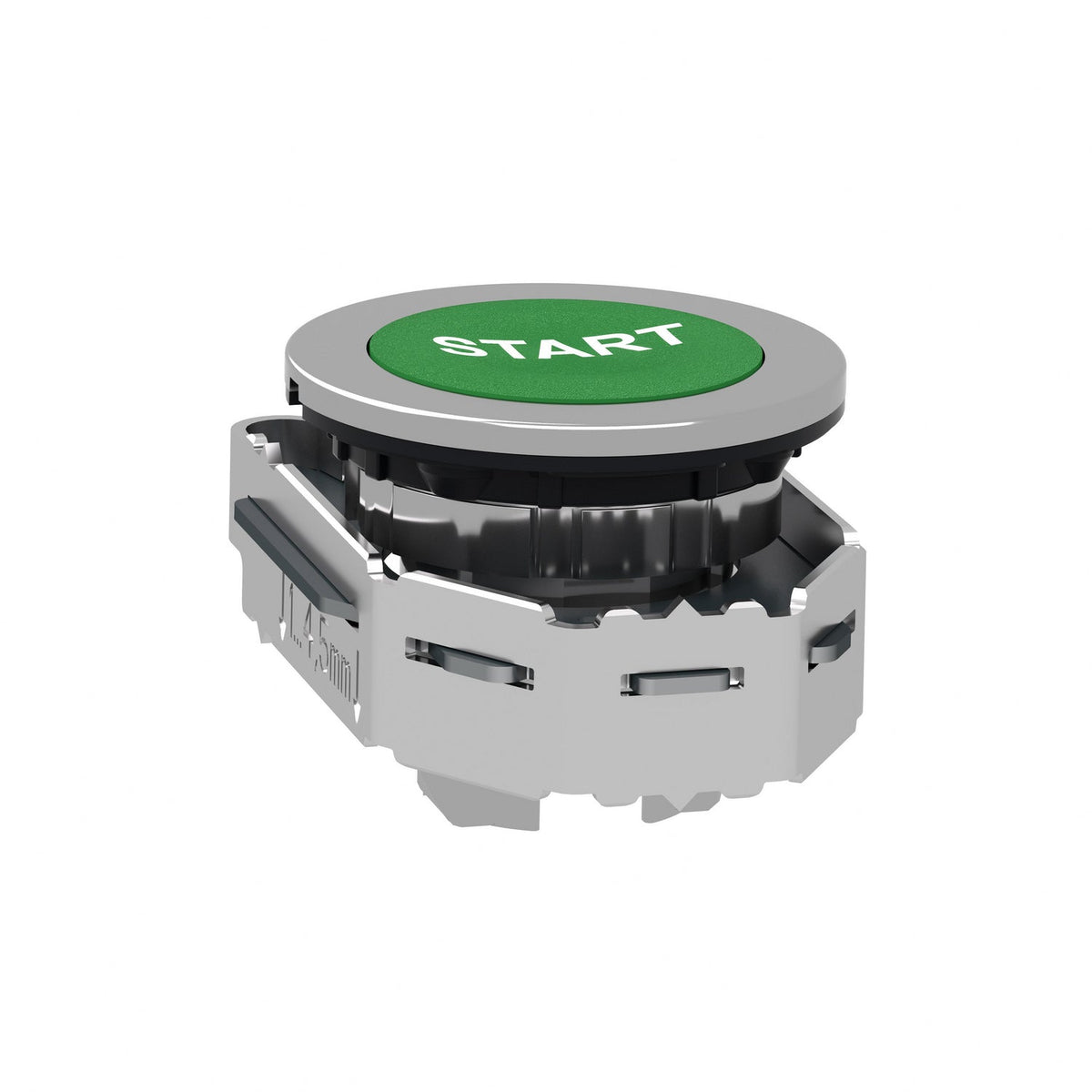

The Schneider Electric ZB4FA333 is a Harmony XB4F push-button head, flush-mounted in chromium-plated metal, green with a white START legend. It operates on a spring-return mechanism and mounts in a 30.5 mm cutout, snapping onto compatible XB4F contact blocks to form a complete pushbutton.

Technical Specifications

Reference ZB4FA333
GTIN 3606489580971
Brand Schneider Electric
Range Harmony XB4
Product or Component Type Head for non-illuminated push-button
Device Short Name ZB4F
Bezel Material Chromium plated metal
Mounting Diameter 30.5 mm
Head Type Built-in-flush
Shape of Signaling Unit Head Round
Type of Operator Spring return
Operator Profile Green flush, START white
Overall Dimensions (W x H x D) 36.6 x 36.6 x 31 mm
IP Degree of Protection IP66, IP67, IP69, IP69K
Enclosure Type UL Type 13, 12, 4, 4X
IK Degree of Protection IK06 (IEC 50102)
Overvoltage Category Class I (IEC 60536)
Ambient Air Temperature (Storage / Operation) -40...70 C

Certifications & Standards

  • UL Listed
  • CSA
  • CCC
  • EAC
  • CSA C22.2 No 14
  • IEC 60947-5-1
  • IEC 60947-5-4
  • UL 508
  • IEC 60947-1
  • JIS C8201-5-1
  • CE
  • JIS C8201-1

Selection Notes

The START legend makes the button's function unambiguous at the panel, which matters because the 30.5 mm mounting diameter is a larger-format cutout than the common 22 mm XB4/XB5 range, typically reserved for a primary start a sequence control that an operator needs to find without searching. The chromium-plated metal bezel and IP69K rating suit washdown or outdoor enclosures better than an equivalent plastic head.

Technical Details

Short Description
Harmony XB4 push button head, green, metal, 30.5 mm, flush, marked START.
Mounting Type
30.5 mm panel cutout
Protection Type
IP66, IP67, IP69, IP69K
Catalog No
ZB4FA333
Delivery Date (Days)
30 days
Model Number
Harmony XB4
Tariff Code
853650
