Schneider Electric ZB4BK1253 Harmony XB4 Illuminated Selector Switch Head Metal Orange 22 mm Selector Switch

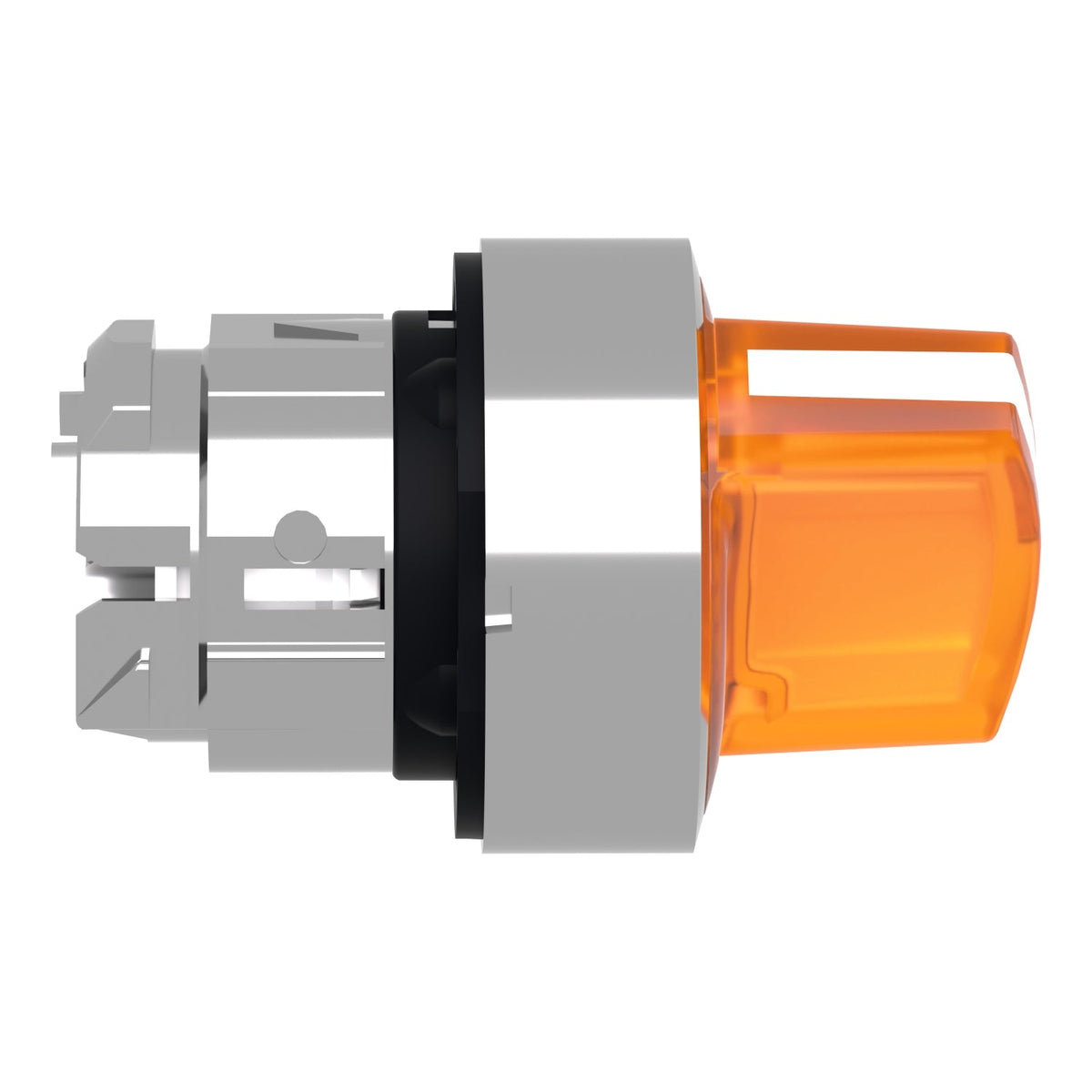

The Schneider Electric ZB4BK1253 is a Harmony XB4 illuminated selector-switch head with a orange standard handle, built for a universal LED, for a 22 mm panel cutout. It gives 2 stay-put positions over a 90° travel and snaps onto a Harmony XB4/ZB4 contact block fitted with a universal LED lamp to show the selected mode at a glance.

Technical Specifications

Certifications & Standards

• BV
• CSA
• DNV
• LROS
• UL Listed
• IEC 60947-1
• IEC 60947-5-1
• IEC 60947-5-4
• IEC 60947-5-5
• JIS C8201-5-1
• JIS C8201-1
• UL 508
• CSA C22.2 No 14

Selection Notes

The ZB4BK1253 stays in whichever of its 2 positions the operator last selected, unlike the spring-return ZB4BD4/ZB4BJ4 heads, so it fits mode-select functions (auto/manual, local/remote) that must hold their state without the operator keeping a hand on the switch. Fit it with a universal LED contact block matching the control-circuit voltage so the orange lens lights to confirm the selected position; an unlit orange head (ZB4BD-series) is the right choice instead where no illuminated confirmation is needed.
