- Part number
- ZB4BA434
- Model no
- ZB4
Description
About the ZB4
About the ZB4

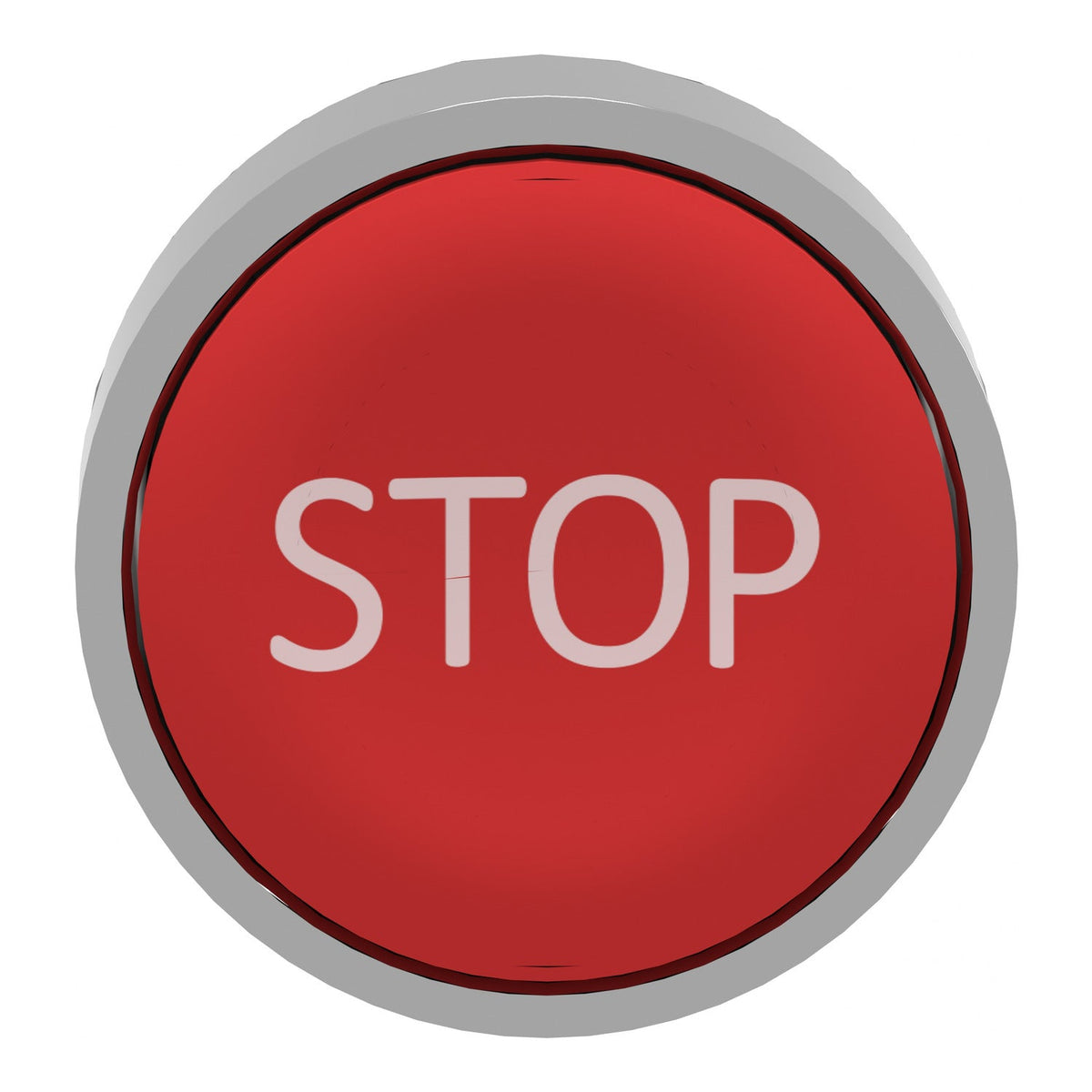

The Schneider Electric ZB4BA434 is a Harmony XB4 flush push-button head with a red chromium-plated metal bezel marked STOP in white, for a 22 mm panel cutout. It operates on a spring return action and snaps onto a Harmony XB4/ZB4 contact block, giving the operator a labelled stop function without a separate legend plate.
Certifications & Standards
- BV
- CSA
- DNV
- LROS
- UL Listed
- IEC 60947-1
- JIS C8201-5-1
- UL 508
- IEC 60947-5-1
- IEC 60947-5-4
- CSA C22.2 No 14
- IEC 60947-5-5
- JIS C8201-1
Selection Notes
Red is the IEC 60947-5-1 colour for stop and emergency functions, so the ZB4BA434's red bezel and STOP legend flag the control point without a separate plate. Pair it with a contact block carrying the NC contacts a fail-safe stop circuit needs; use the unmarked ZB4BA4 red head where a site-specific legend will be fitted instead.
Specification
Full specification
Main 11
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Red flush, STOP white) |
| Cap/operator or lens colour | Red |
Complementary 6
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.1 in (28 mm) |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting |
| Device presentation | Basic element |
Environment 11
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5, IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-1 |
| Product Certifications | BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | ZB4BA434 |
|---|---|
| Type designation | ZB4 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389110887587 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | FR |
|---|---|
| Shipping weight | 0.029 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
